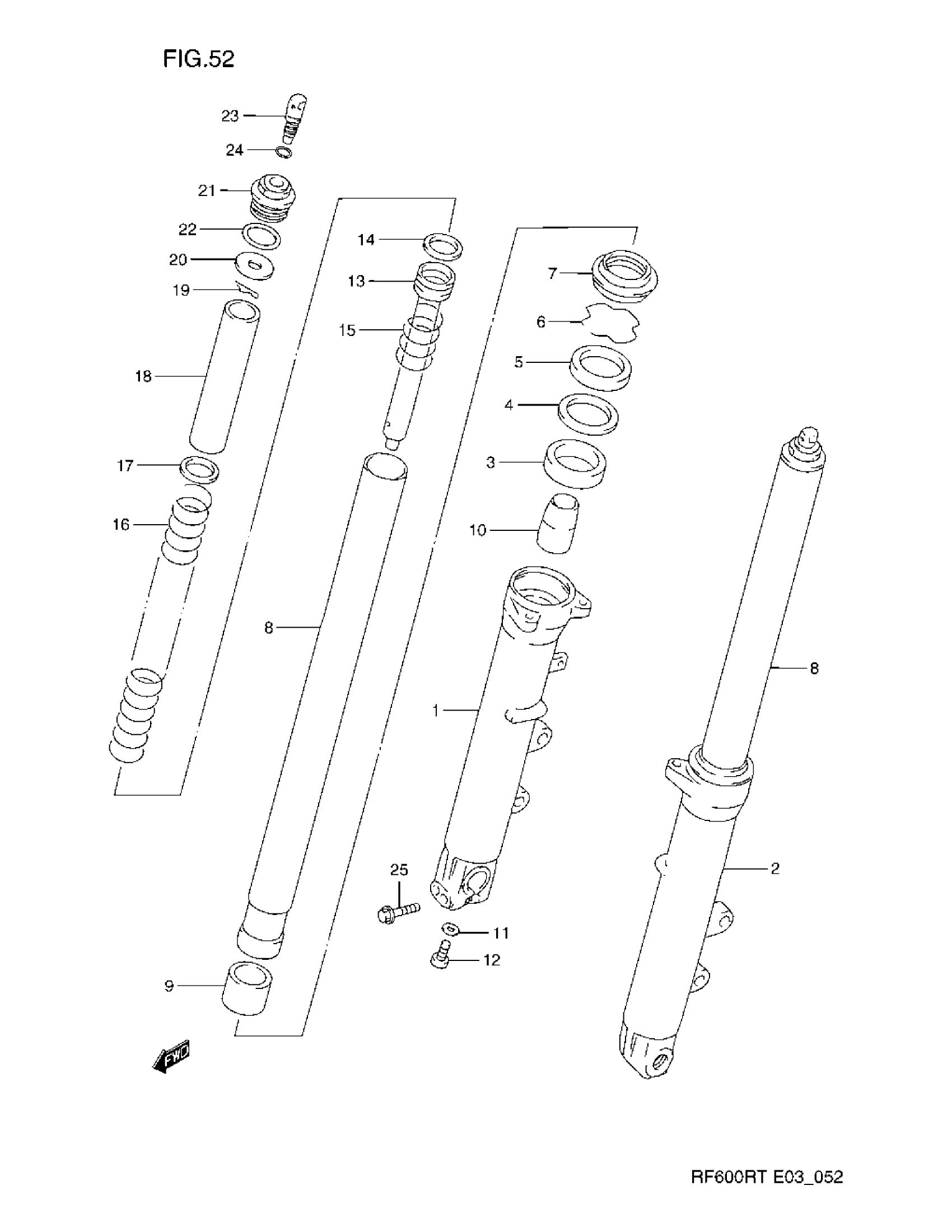

Suzuki RF600RT (1996) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, RH

51103-21E00

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 25

51104-21E00

Unavailable

1

TUBE, OUTER RH

51130-21E00

Unavailable

2

TUBE, OUTER LH

51140-21E00

Unavailable

3

BUSH, GUIDE

51152-48B31

$18.90

4

SPACER, SEAL

51168-38B00

$6.49

5

SEAL, OIL

51153-08D00

$22.96

6

RING, STOPPER

51556-38B00

$7.22

7

DUST SEAL

51571-47D50

$21.90

8

TUBE, INNER

51110-21E00

Unavailable

9

BUSH, SLIDE

51121-48B31

$25.75

10

PIECE, OIL LOCK

51195-48B31

$30.22

11

GASKET

51148-36011

$3.56

12

BOLT

51147-48130

$4.34

13

CYLINDER

51146-21E00

Unavailable

14

RING, PISTON

51196-12C00

$8.42

15

SPRING, REBOUND

51177-12C00

Unavailable

16

SPRING

51171-21E00

Unavailable

17

JOINT, SPRING

51192-19C00

$5.02

18

SPACER, SPRING

51176-19C00

$13.70

19

PIN, SEAT SPRING

51188-32B00

Unavailable

20

SEAT, SPRING

51186-12C00

$7.53

21

.BOLT,FORK

51189-12C00

Unavailable

22

.O-RING

51117-12C00

$3.89

23

BOLT, ADJUST

51185-34C00

Unavailable

24

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

25

BOLT, AXLE HOLDER RH

01550-08457

$4.00
