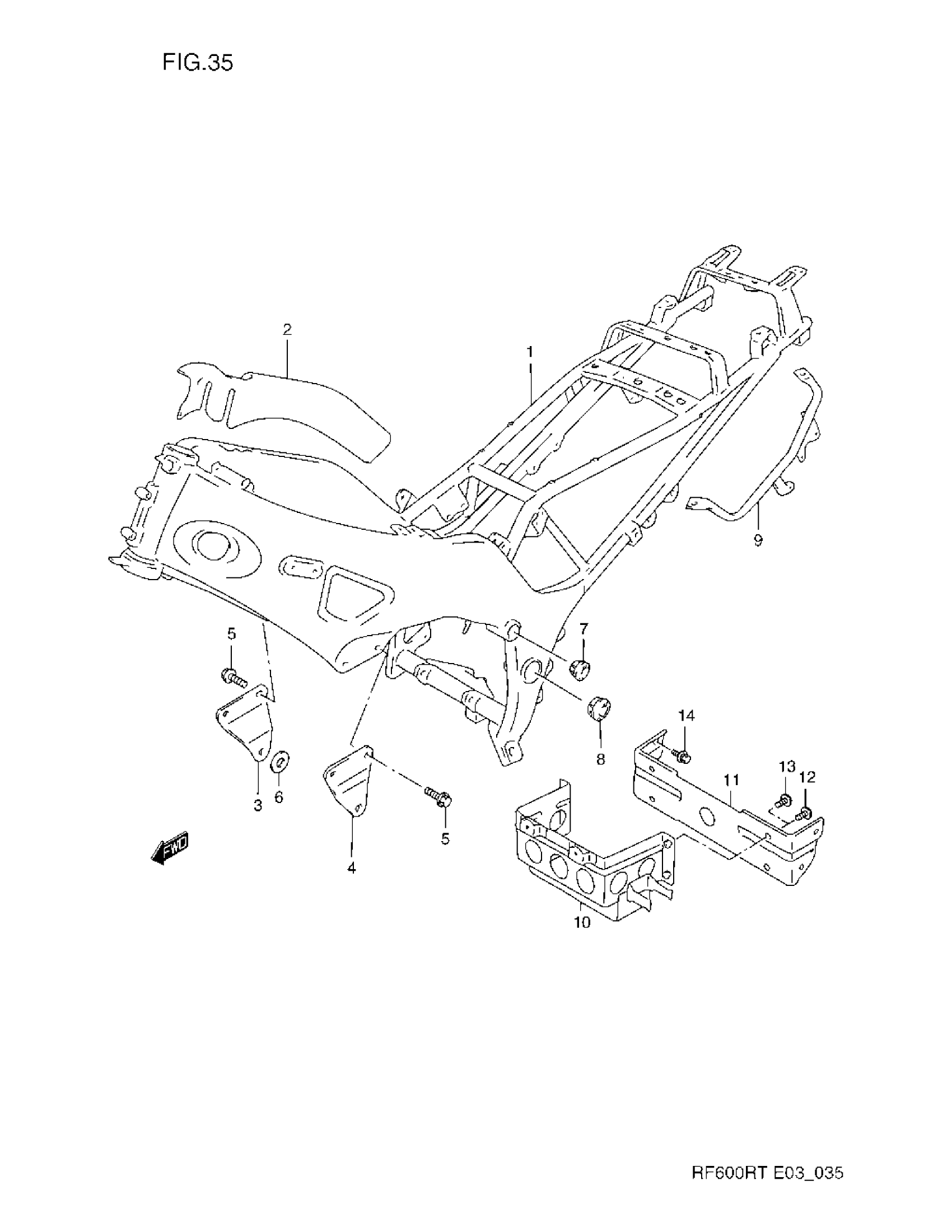

Suzuki RF600RT (1996) FRAME Diagram
#
Description
Price
1
NO DESCRIPTION AVAILABLE | MODEL R This part replaces 41100-21E20-1TY.
41100-21E22-1TY
Unavailable
1
NO DESCRIPTION AVAILABLE | MODEL R This part replaces 41100-21E20-34R.
41100-21E22-34R
Unavailable
1
NO DESCRIPTION AVAILABLE | MODEL S This part replaces 41100-21E40-1ZV.
41100-21E41-1ZV
Unavailable
1
NO DESCRIPTION AVAILABLE | MODEL S This part replaces 41100-21E40-28V.
41100-21E41-28V
Unavailable
1
NO DESCRIPTION AVAILABLE | MODEL T This part replaces 41100-21E40-35W.
41100-21E41-35W
Unavailable
2
SHIELD, HEAT RH | MODEL R This part replaces 41891-21E01.
41891-21E02
Unavailable
2
SHIELD, HEAT RH | MODEL S/T
41891-21E02
Unavailable
2
SHIELD, HEAD LH | MODEL R This part replaces 41892-21E01.
41892-21E02
Unavailable
2
SHIELD, HEAT LH | MODEL S/T
41892-21E02
Unavailable
3
PLATE, ENGINE MOUNT RH
41911-21E20
Unavailable
4
PLATE, ENGINE MOUNT LH
41921-21E20
Unavailable
6
WASHER, INNER
09160-10070
Unavailable
7
CAP, MOUNT BOSS
43585-47D01
Unavailable
8
CAP, PIVOT
43585-21E00
Unavailable
9
GRIP, REAR RH
43970-21E10
Unavailable
9
GRIP, REAR LH
43980-21E10
Unavailable
10
HOLDER, BATTERY | MODEL R This part replaces 41540-21E10.
41540-21E11
Unavailable
10
HOLDER, BATTERY | MODEL S/T
41540-21E11
Unavailable
11
PLATE
41561-21E00
Unavailable
