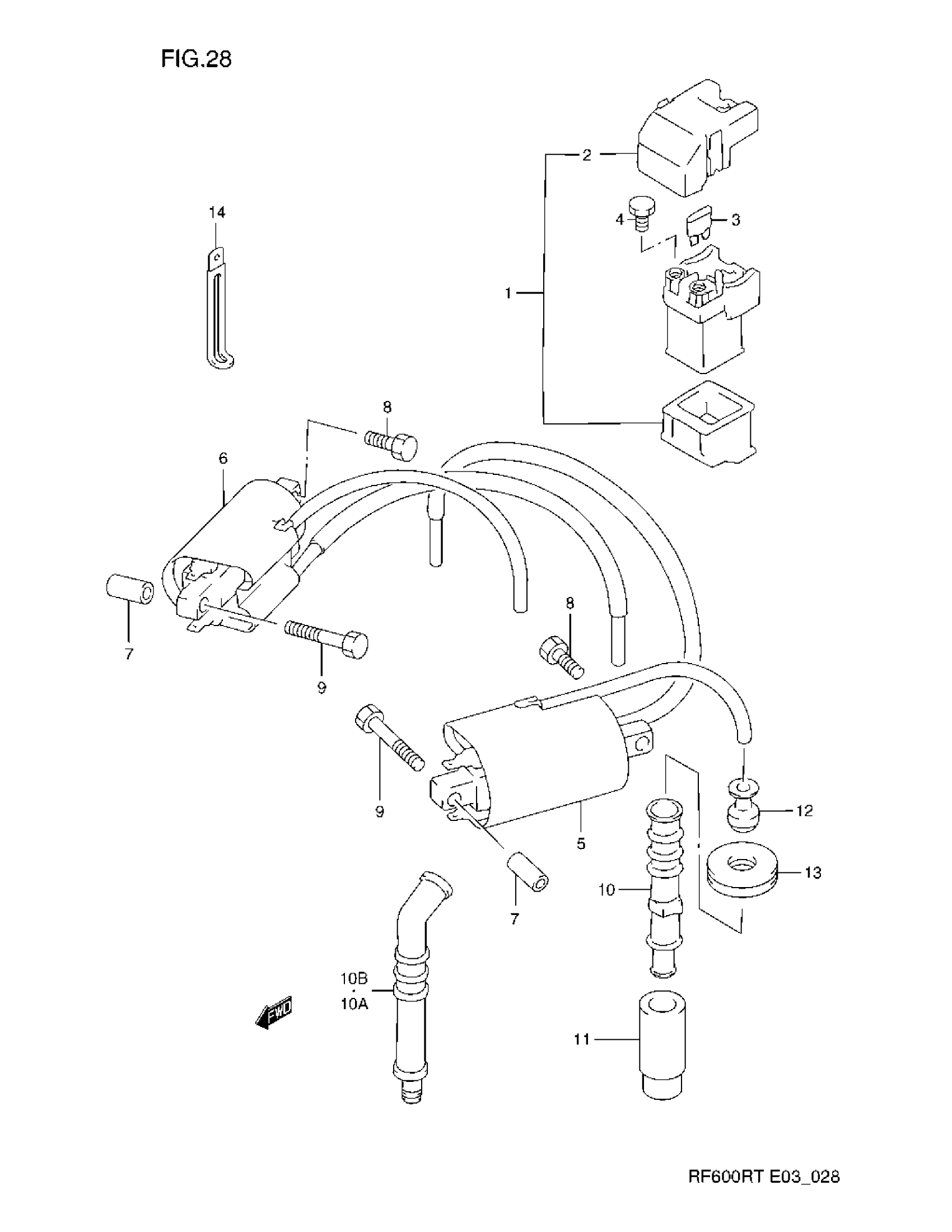

Suzuki RF600RT (1996) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR | Includes Item(s) 2 - 3

31800-21E10

Unavailable

2

COVER

31861-21E10

Unavailable

3

FUSE (30A)

09481-30101

$2.26

4

BOLT

09128-06013

$1.49

5

COIL ASSY,IGNIT This part replaces 33410-21E00.

33410-21E01

Unavailable

6

COIL ASSY,IGNIT This part replaces 33420-21E00.

33420-21E01

Unavailable

7

SPACER

09180-06244

Unavailable

8

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

9

BOLT This part replaces 09100-06123.

09117-06043

Unavailable

10

CAP, SPARK PLUG | MODEL R

33510-17E00

Unavailable

10A

CAP, SPARK PLUG | MODEL S This part replaces 33510-17E10.

33510-17E11

Unavailable

10B

CAP, SPARK PLUG | MODEL T

33510-17E11

Unavailable

11

SEAL, PLUG

33541-20C00

$13.43

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

COVER

33543-17E01

Unavailable

14

CLAMP(L:80) | MODEL R This part replaces 09404-06404.

09404-06036

$1.74

14

CLAMP | MODEL S/T This part replaces 09404-06431.

09404-06039

$1.74
