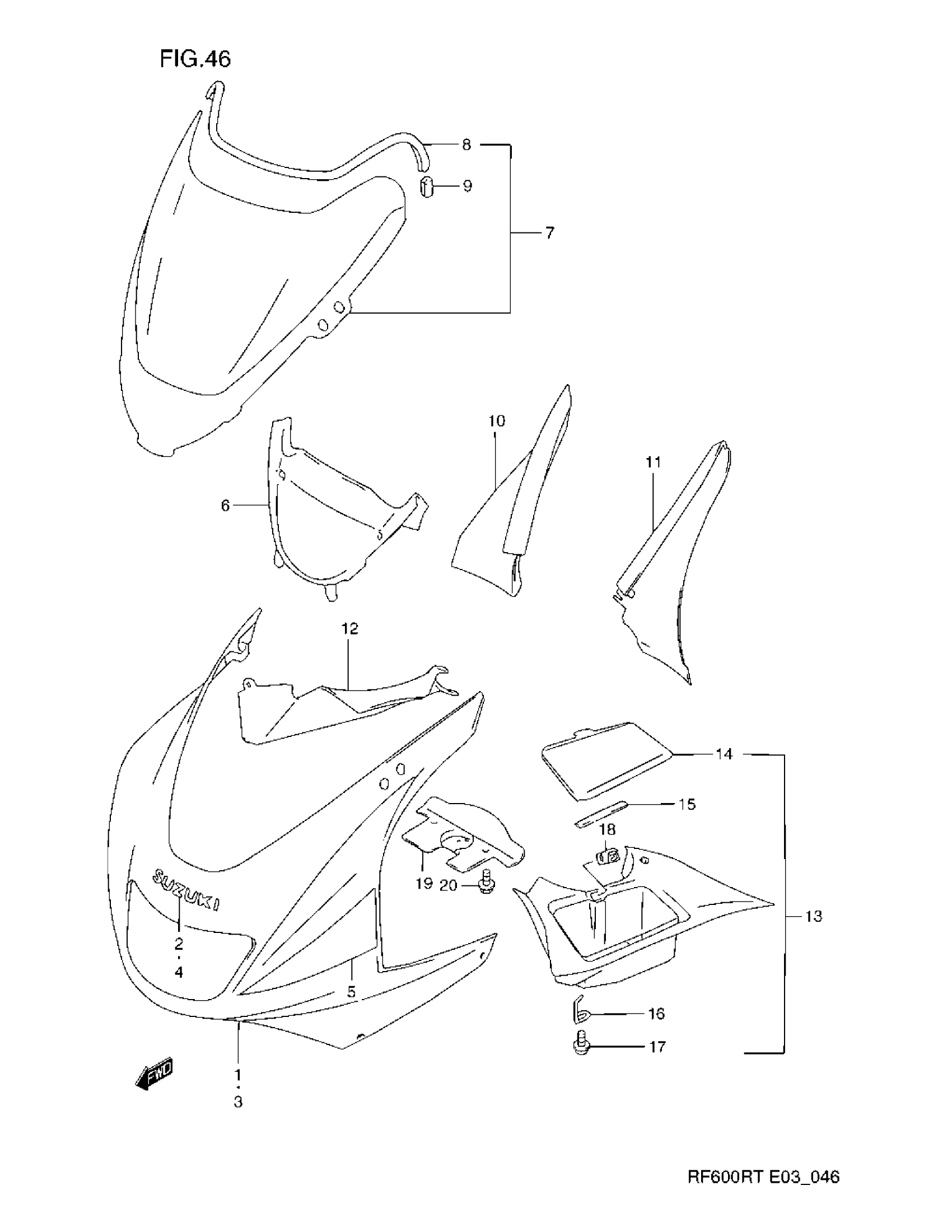

Suzuki RF600RT (1996) COWLING BODY Diagram

#

Description
Price

1

COWLING ASSY, BODY (RED) | MODEL R

94400-21E00-1TY

Unavailable

1

COWLING ASSY, BODY (BLUE) | MODEL R

94400-21E00-34R

Unavailable

1

COWLING ASSY, BODY (GREEN) | MODEL S

94400-21E00-1ZV

Unavailable

1

COWLING ASSY, BODY (RED) | MODEL S; Includes Item(s) 2 - 2

94400-21E00-28V

Unavailable

2

EMBLEM, SUZUKI (BROWN) | MODEL R FOR 1TY

68185-05C10-29F

Unavailable

2

EMBLEM, SUZUKI (SILVER) | MODEL R FOR 34R

68185-05C10-20H

Unavailable

2

EMBLEM, SUZUKI (SILVER) | MODEL S FOR 1ZV

68185-05C10-21J

Unavailable

2

EMBLEM, SUZUKI (GRAY) | MODEL S FOR 28V

68185-05C10-17U

Unavailable

3

COWLING ASSY, BODY (RED) | MODEL T FOR E6S; Includes Item(s) 4 - 5

94400-21E10-28V

Unavailable

4

EMBLEM, SUZUKI (CHARCOAL) | MODEL T FOR 28V

68185-05C10-20G

Unavailable

5

TAPE SET, BODY | MODEL T

68270-21E00-E8F

Unavailable

6

PANEL, CENTER

94640-21E00

Unavailable

7

SCREEN SET, WIND | Includes Item(s) 8 - 9

94610-21E00

Unavailable

8

MOLDING | L:700->600

94631-33C01

$18.02

9

CLIP

94637-21E00

$8.18

10

PANEL, UPPER RH

94423-21E00

Unavailable

11

PANEL, UPPER LH

94424-21E00

Unavailable

12

PANEL, SIDE RH

94630-21E00

Unavailable

13

PANEL, SIDE LH | Includes Item(s) 14 - 18

94650-21E00

Unavailable

14

LID

94427-21E00

Unavailable

15

CUSHION

94456-21E00

Unavailable

16

HINGE

94553-21E00

Unavailable

17

SCREW This part replaces 03541-15103.

03541-1510A

$2.48

18

LOCK, LID

73170-50A00

$16.87

19

COVER, FRONT LOWER

94457-21E10

Unavailable

20

BOLT

09116-06109

$3.00

21

COLOR : E6S = 28V(RED),

SPECIAL NOTE

Unavailable
