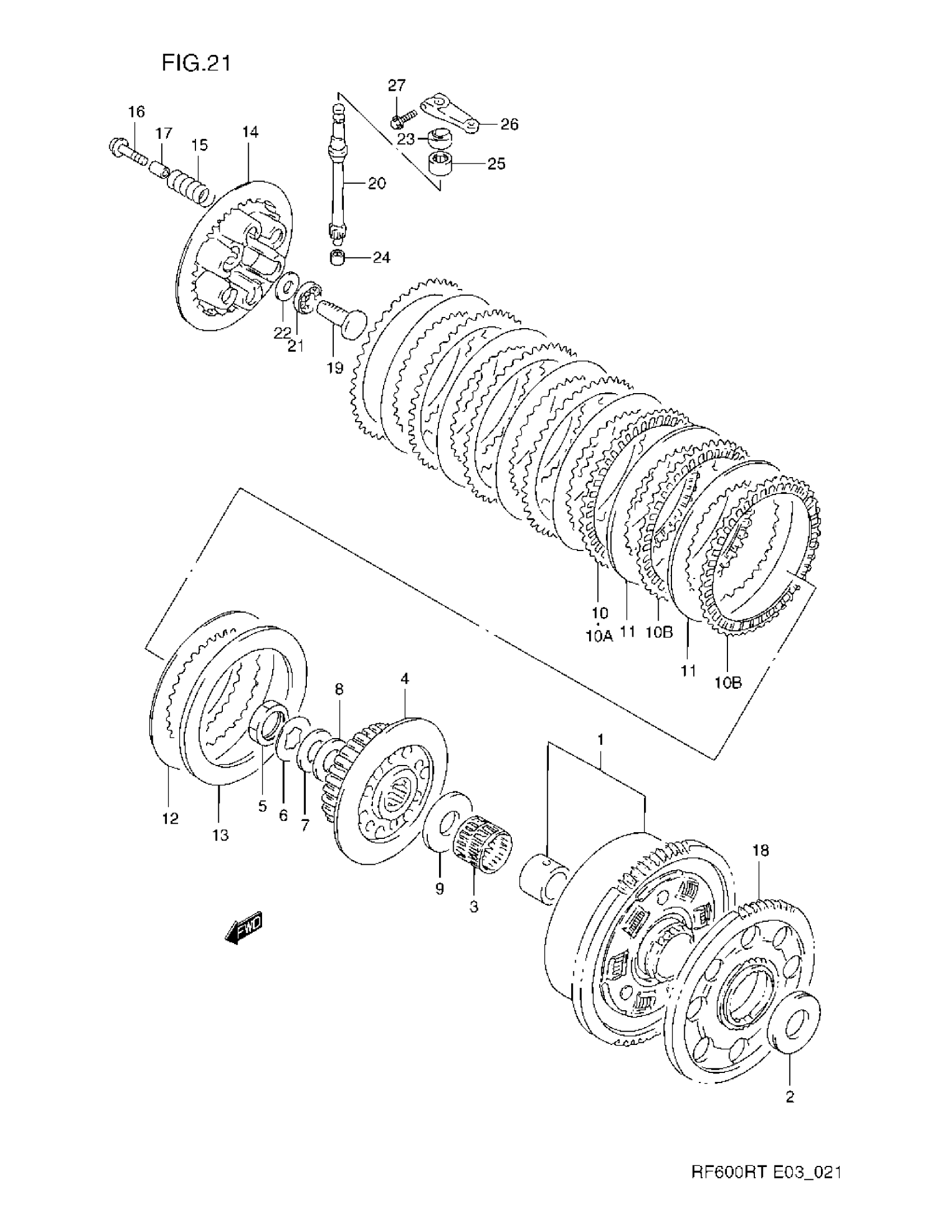

Suzuki RF600RT (1996) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIM This part replaces 21200-21841.

21200-21842

Unavailable

2

WASHER

09160-25067

Unavailable

3

BEARING

09263-35017

$40.54

4

HUB, SLEEVE

21410-17E10

Unavailable

5

NUT

09140-24012

Unavailable

6

WASHER

09167-25007

Unavailable

7

WASHER, WAVE

09164-25001

Unavailable

8

WASHER

08211-25441

Unavailable

9

.WASHER (25X50X2.5)

09160-25056

$11.61

10

PLATE, CLUTCH DRIVE NO.2 | MODEL R/S This part replaces 21441-17E10.

21441-17E21

Unavailable

10A

PLATE, CLUTCH DRIVE NO.2 | MODEL T This part replaces 21441-17E10.

21441-17E21

Unavailable

10B

PLATE, CLUTCH DRIVE NO.2 | MODEL T

21441-17E21

Unavailable

11

PLATE, DRIVEN,NO.1 (T:2.0)

21451-17E00

Unavailable

12

PLATE, DRIVEN,NO.2 (T:1.6)

21451-17C00

$11.44

13

SPACER, CLUTCH PLATE

21443-21E00

Unavailable

14

DISC, PRESSURE

21462-17E01

Unavailable

15

SPRING

09440-20020

$8.18

16

BOLT (6X40)

09116-06161

Unavailable

17

SPACER (6.2X12X16)

09180-06198

$4.32

18

GEAR, ALTERNATOR (NT:34/61) This part replaces 22721-21E01.

22721-21E02

Unavailable

19

RACK, RELEASE

23165-21E00

Unavailable

20

PINION, RELEASE

23261-21E00

Unavailable

21

BEARING (15X28X2)

09263-15003

$8.29

22

WASHER (15.5X28X1)

09160-15045

$3.89

23

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

24

BEARING (10X14X10) This part replaces 09263-10013.

09263-10014

$13.52

25

BEARING (15X22X12)

09263-15012

$15.48

26

ARM, CLUTCH RELEASE

23271-17C00

Unavailable

27

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78
