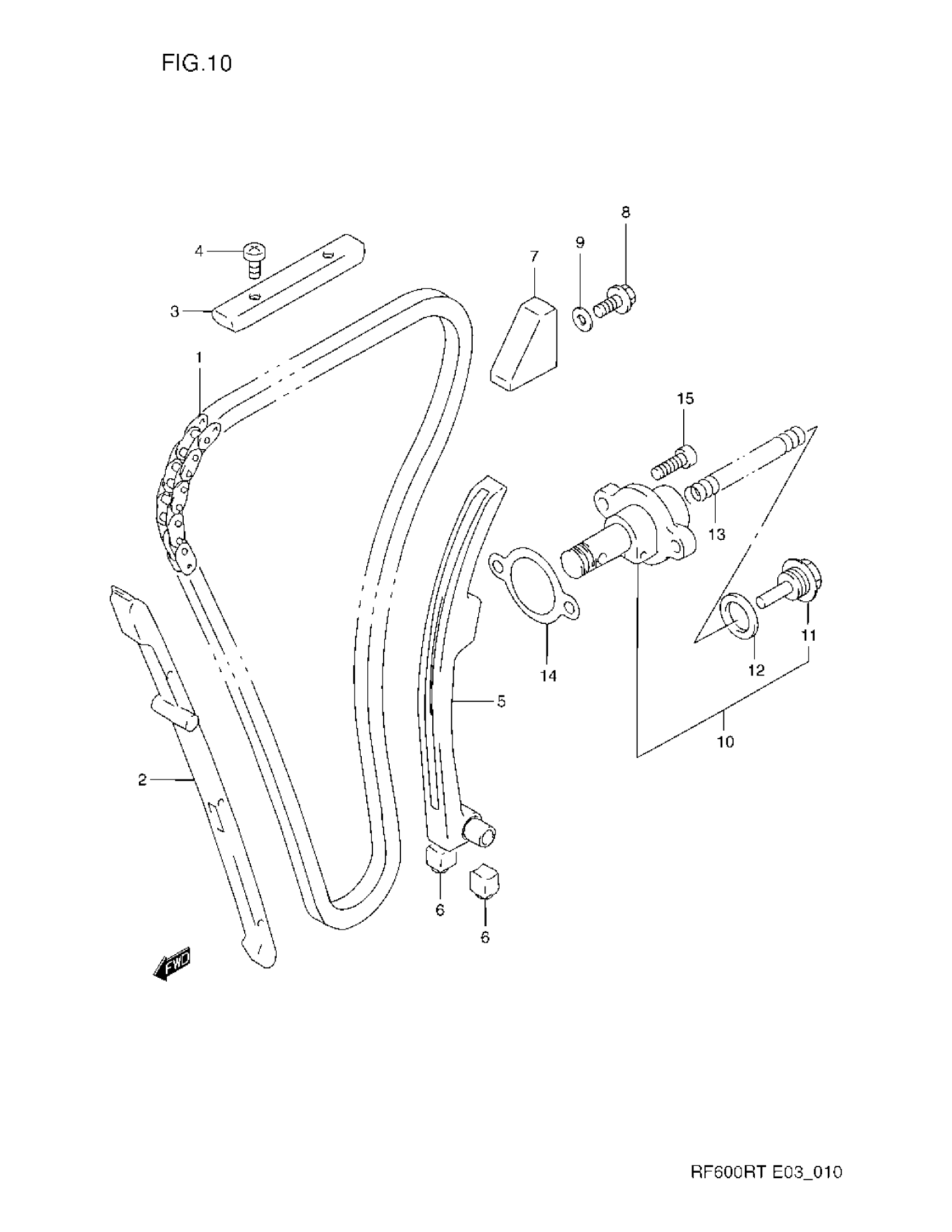

Suzuki RF600RT (1996) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CM SHAFT DRIVE | MODEL R This part replaces 12760-17E00.

12760-17E01

Unavailable

1

CHAIN, CAM SHAFT DRIVE | MODEL S/T

12760-17E01

Unavailable

2

GUIDE, CAM CHAIN NO.1

12771-17E00

Unavailable

3

GUIDE, CAM CHAIN NO.2

12782-18E00

Unavailable

4

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

5

TENSIONER, CAM CHAIN

12810-17E01

Unavailable

6

CUSHION

12814-34200

$5.58

7

GUIDE, CAM CHAIN NO.3 | MODEL R This part replaces 12791-17E00.

12791-17E01

$79.07

7

GUIDE, CAM CHAIN NO.3 | MODEL S/T

12791-17E01

$79.07

8

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

8

BOLT | MODEL S/T This part replaces 01550-06163.

01550-0616A

$1.97

9

WASHER

09168-06023

$2.35

10

ADJUSTER ASSY, TENSIONER | Includes Item(s) 11 - 13 This part replaces 12830-26D12.

12830-46E00

Unavailable

11

PLUG

12834-27A00

Unavailable

12

GASKET

12832-27A00

$6.91

13

SPRING

12833-26D10

$6.88

14

GASKET, ADJUSTER

12837-27A10

$3.85

15

BOLT (6X23) | MODEL R/S

09106-06082

$2.62

15

BOLT (6X22) | MODEL T

09106-06079

Unavailable
