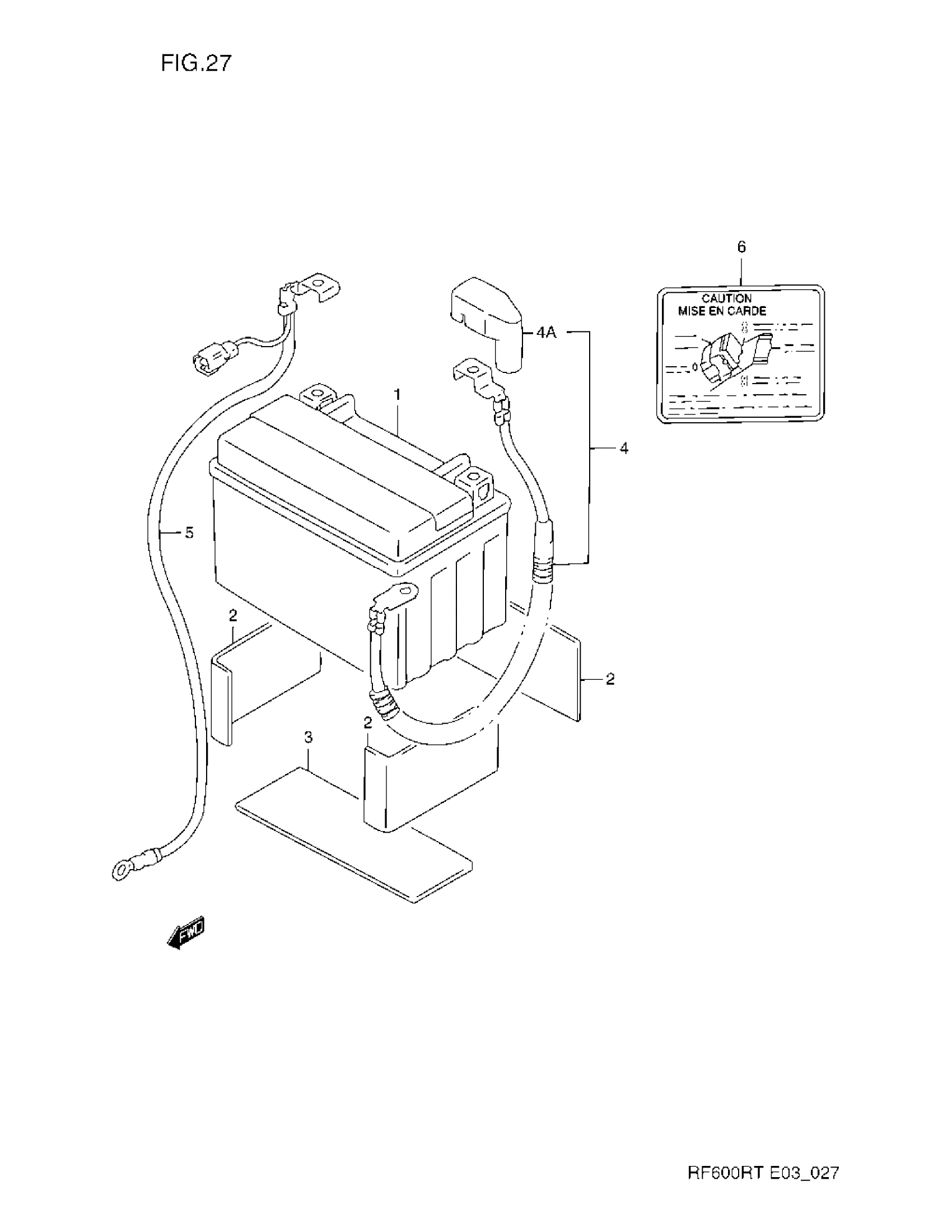

Suzuki RF600RT (1996) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) This part replaces 33610-10D00.

33610-33E20

Unavailable

2

CUSHION | CUT AS REQUIRED PROFILE(50X115)

33651-37000

$4.48

3

CUSHION | CUT AS REQUIRED PROFILE(50X115)

33651-37000

$4.48

4

LEAD WIRE (+) | Includes Item(s) 4A

33820-21E00

Unavailable

4A

CAP, BATTERY PLUS

33624-33C10

Unavailable

5

WIRE, BATTERY (-) | MODEL R This part replaces 33860-17E00.

33860-46E00

Unavailable

5

LEAD WIRE (-) | MODEL S/T

33860-46E00

Unavailable

6

PLATE, BATTERY CAUTION

33690-17E00

Unavailable
