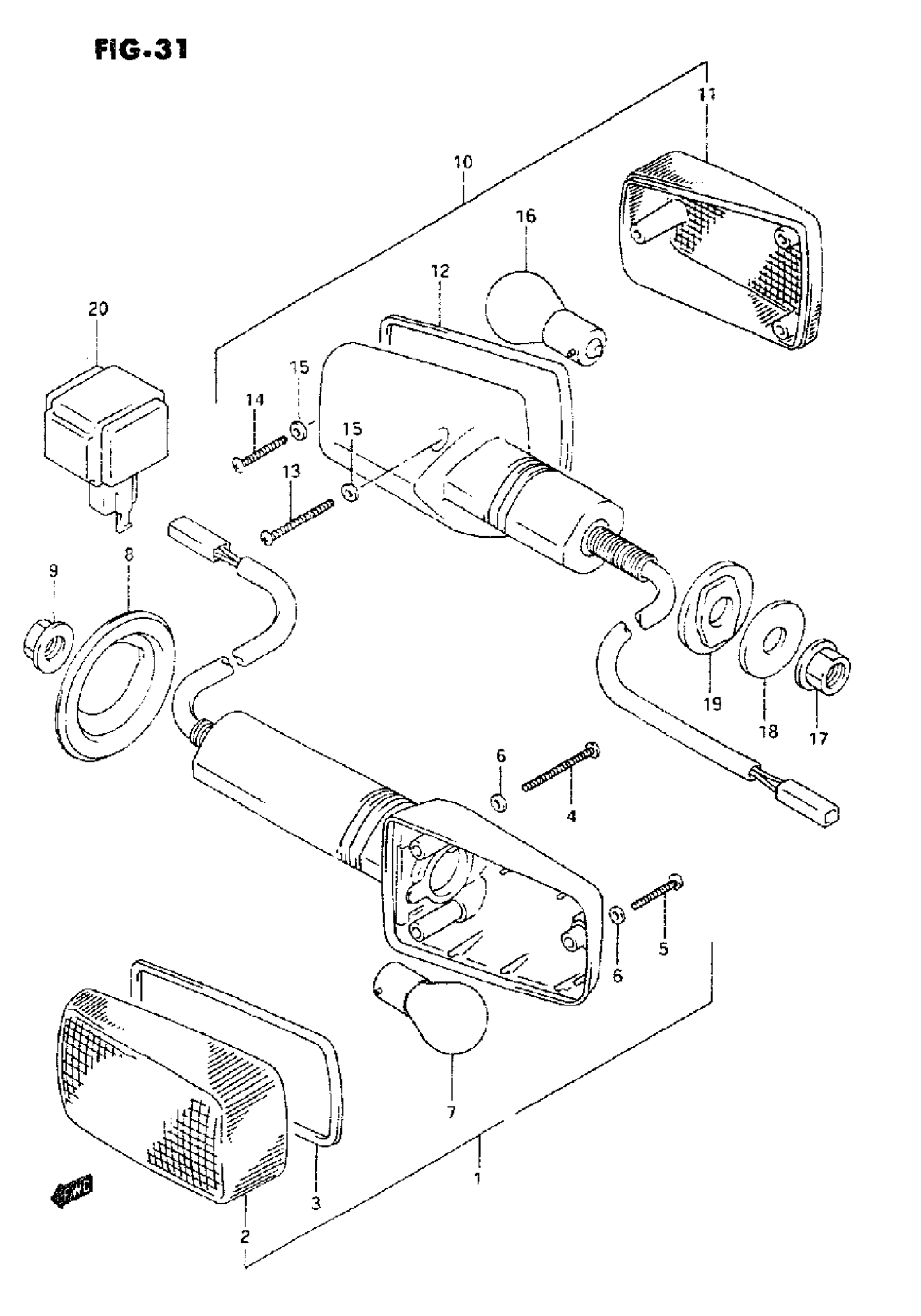

Suzuki RF600R (1995) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL | MODEL R/S This part replaces 35601-29E10.

35601-29E30

$84.63

1

LAMP ASSY,FRONT TURNSIGNAL | MODEL T

35601-29E30

$84.63

2

LENS

35612-17C20

$10.69

3

GASKET

35613-27A00

$4.52

4

TAPPING SCREW

35623-27A00

$1.65

5

TAPPING SCREW

35725-40511

$1.91

6

GASKET

35627-27A02

$1.58

7

BULB (12V, 21W)

09471-12045

$3.27

8

GROMMET

35674-27A01

$9.58

9

NUT This part replaces 08316-10103.

08316-1010B

$2.66

10

LAMP ASSY, REAR TURNSIGNAL

35603-21E30

$130.27

11

LENS

35652-17C20

$10.28

12

GASKET

35613-27A00

$4.52

13

TAPPING SCREW

35623-27A00

$1.65

14

TAPPING SCREW

35725-40511

$1.91

15

GASKET

35627-27A02

$1.58

16

BULB (12V, 21W)

09471-12045

$3.27

17

NUT | MODEL R This part replaces 08316-10103.

08316-1010B

$2.66

17

NUT | MODEL S/T This part replaces 08310-00103.

08310-0010A

$1.84

18

WASHER | MODEL R

09160-10094

$3.16

18

WASHER | MODEL S/T

09160-10501

$2.33

19

SPACER

35695-17C00

$4.03

20

RELAY ASSY, TURNSIGNAL

38610-45D01

$78.73
