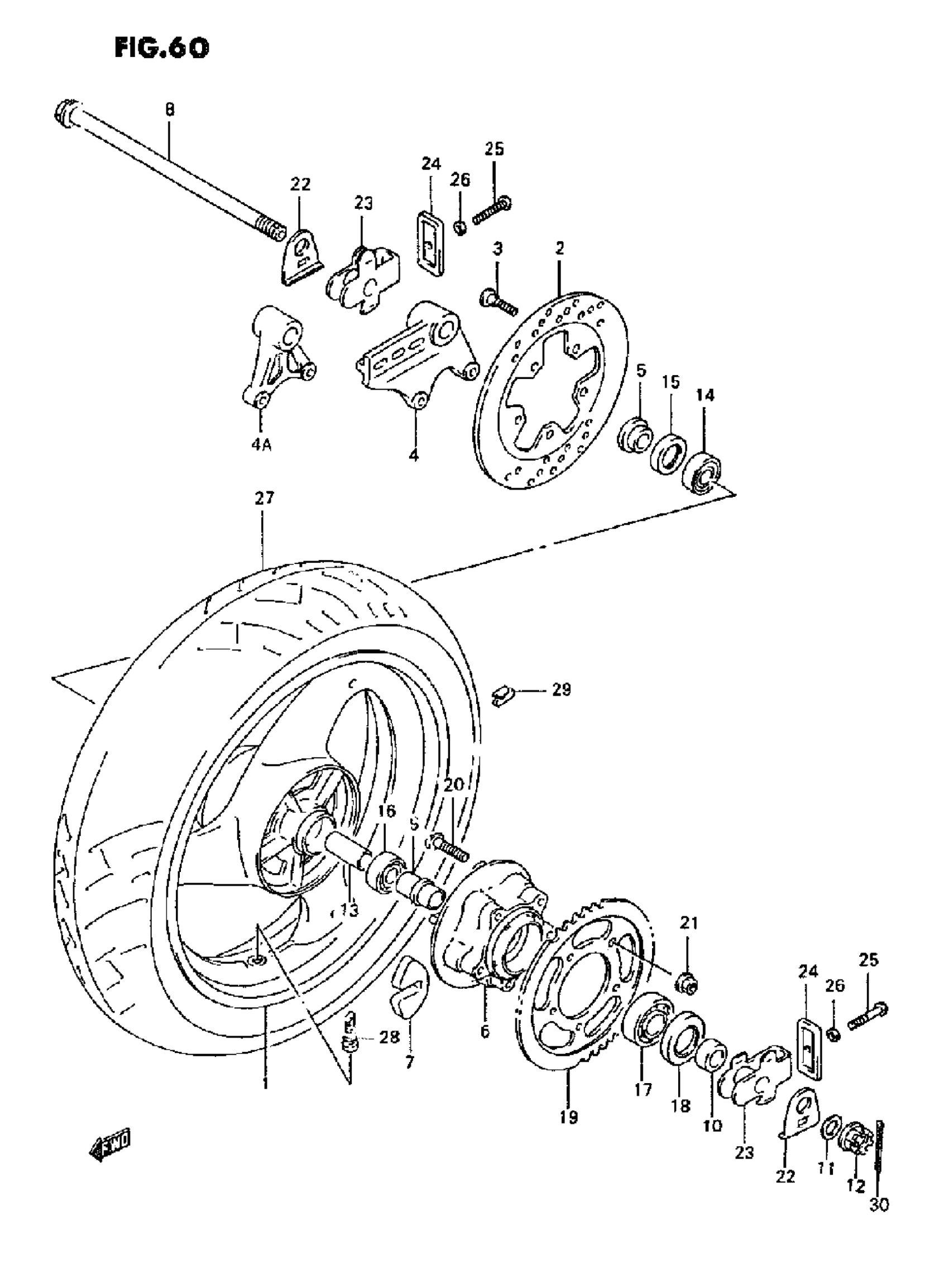

Suzuki RF600R (1995) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (17XMT4.50) (GRAY) | WHEEL FOR 1TY, 1ZV, 28V, E6S

64111-21E01-35W

Unavailable

1

NO DESCRIPTION AVAILABLE | WHEEL FOR 34R This part replaces 64111-21E00-0FP.

64111-21E01-0FP

Unavailable

2

DISC, REAR BRAKE

69211-21E00

$388.57

3

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

4

BRACKET, REAR CALIPERS | MODEL R ->69721-17E10 This part replaces 69721-17E00.

69721-17E10

Unavailable

4

BRACKET, REAR CALIPERS | MODEL S FOR 69100-21830

69721-17E10

Unavailable

4

BRACKET, REAR CALIPERS | MODEL T FOR 69100-05C50

69721-46E00

Unavailable

5

SPACER, RH

64741-17E00

$25.52

6

DRUM, SPROCKET

64611-33C00

Unavailable

7

SHOCK ABSORBER, DRUM

64651-32C00

$12.17

8

AXLE, REAR

64711-21E10

Unavailable

9

RETAINER,RR HUB BEARING

64733-27A00

$26.93

10

SPACER, LH | MODEL R

64751-21E10

Unavailable

10

SPACER, LH | MODEL S/T

64751-26E00

$24.55

11

WASHER This part replaces 09160-18026.

09160-18030

$2.56

12

NUT

08314-40187

$5.64

13

SPACER, BEARING

09180-20104

Unavailable

14

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

15

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

16

BEARING, LH

09262-20042

$23.28

17

BEARING, DRUM

09262-25073

$25.92

18

SEAL,OIL (35X62X8)

09285-35001

$10.19

19

SPROCKET, REAR (NT:43)

64511-17C62

Unavailable

20

BOLT

09119-10043

$4.26

21

NUT

08319-31107

$2.73

22

WASHER, CHAIN ADJUSTER | MODEL R

61445-17C00

Unavailable

22

WASHER. CHAIN ADJUSTER | MODEL S/T

61445-26E00

$8.05

23

ADJUSTER, CHAIN

61410-21E00

Unavailable

24

PLATE, CHAIN ADJUSTER GUIDE This part replaces 61421-45D00.

61421-08J00

$28.45

25

BOLT

09106-08119

$4.04

26

WASHER

09164-08015

$3.21

27

TIRE, REAR (160/60 ZR17) DUNLOP | TIRE,

65110-21E00

Unavailable

28

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

$8.85

29

BALANCER (10G)

55411-00A00

$1.49

29

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

29

BALANCER (30G)

55413-00A01

Unavailable

30

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

30

CALIPER ASSY, REAR

69100-21830

Unavailable
