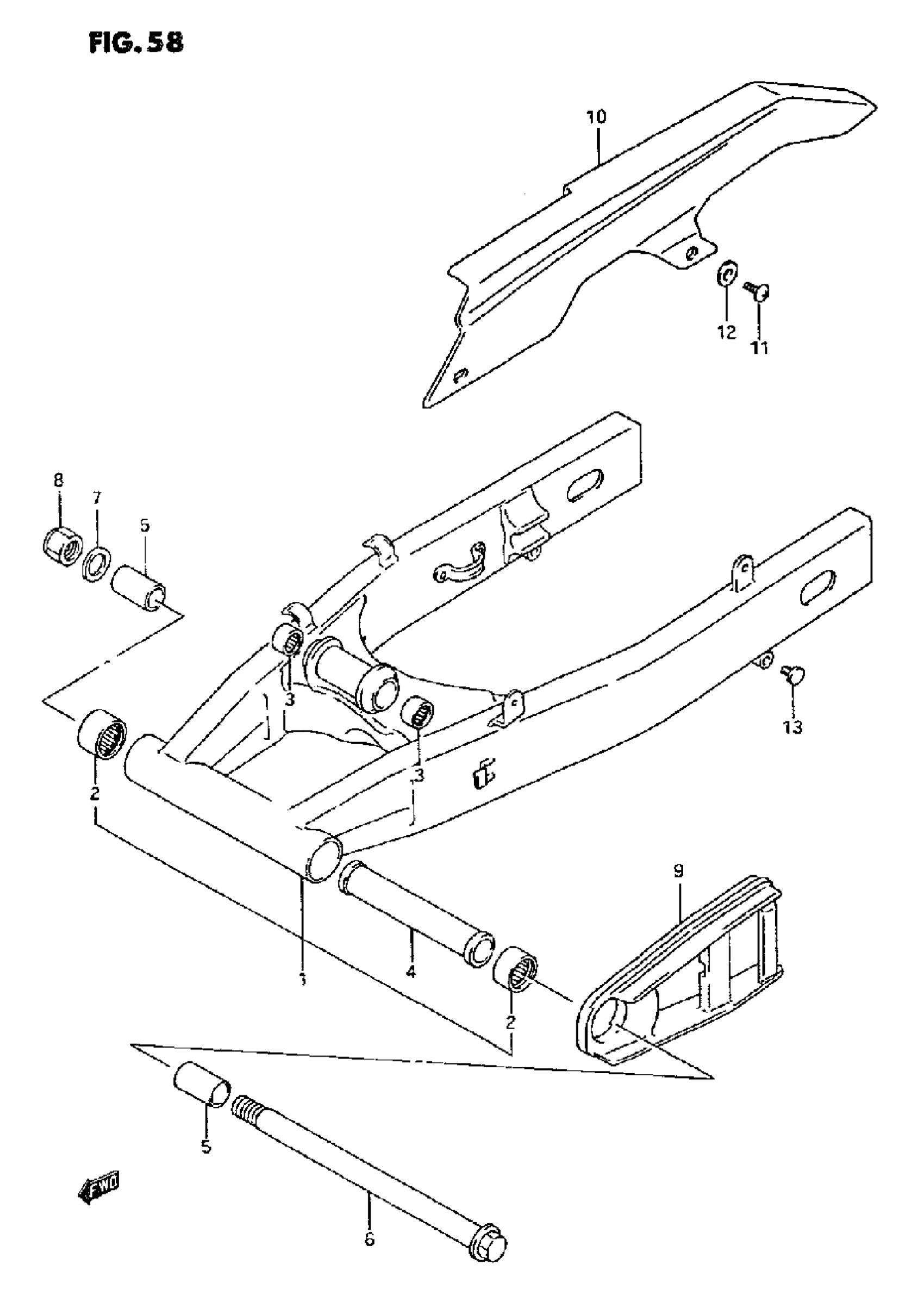

Suzuki RF600R (1995) REAR SWINGING ARM (MODEL R/S) Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | SWING This part replaces 61000-21E00-0FP.

61000-21E01-0FP

Unavailable

2

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$30.93

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

SPACER (20.8X27.2X146) This part replaces 61282-21E00.

09180-20108

Unavailable

5

SPACER, BEARING

61251-21E00

$30.05

6

SHAFT, PIVOT

61211-21E00

Unavailable

7

WASHER This part replaces 09160-18026.

09160-18030

$2.56

8

NUT

09159-18007

$19.68

9

BUFFER, CHAIN TOUCH DEFENSE

61273-21E01

Unavailable

10

CASE, CHAIN This part replaces 61310-45D11.

61310-45D12

Unavailable

11

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

12

WASHER

09169-06026

$2.20

13

CAP

09250-08016

$2.53
