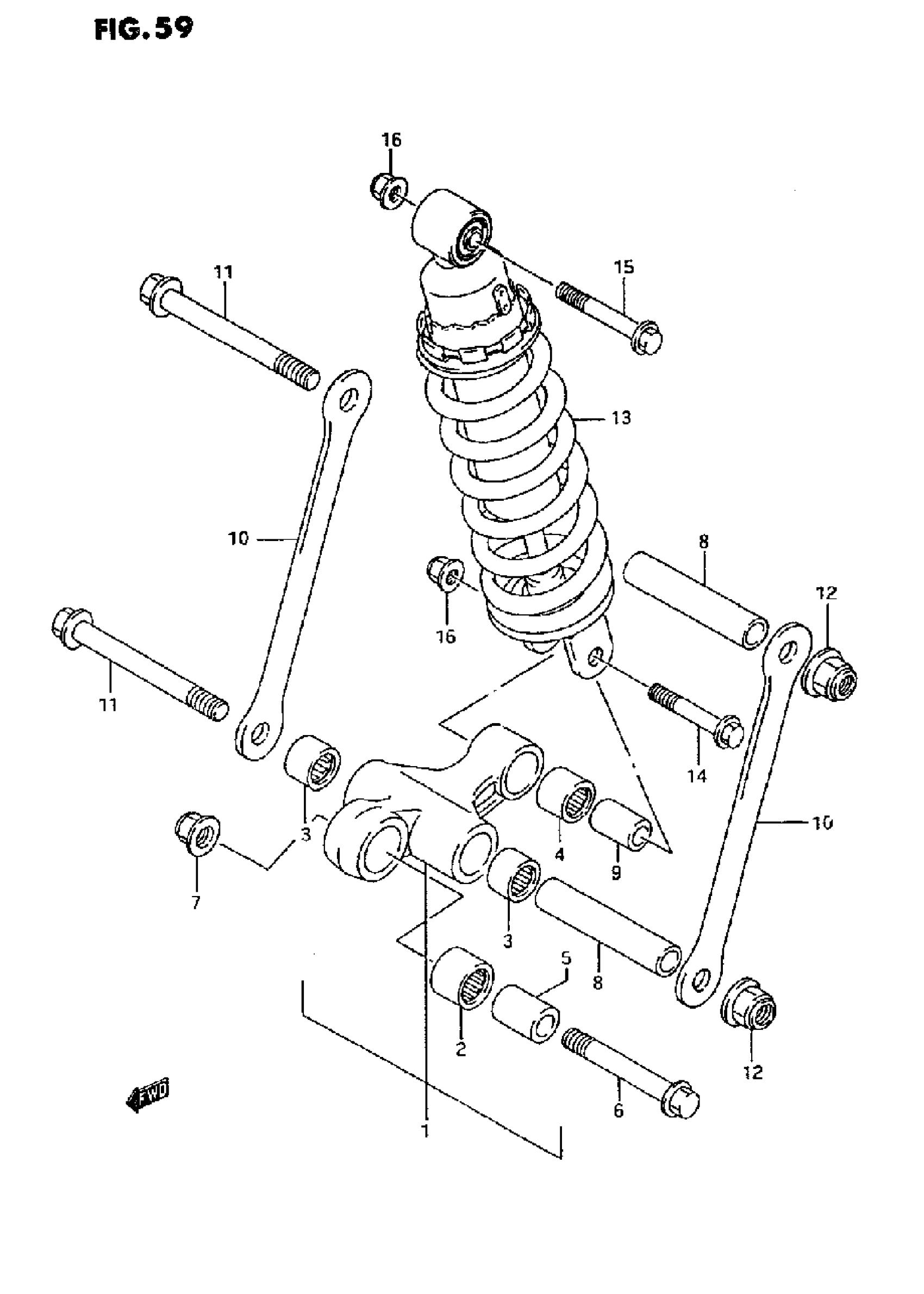

Suzuki RF600R (1995) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-33871

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, RR CUSHION LEVER RR This part replaces 62684-05C00.

62684-01D00

$19.37

6

BOLT, LEVER FRONT

62668-42A02

$10.67

7

NUT This part replaces 08319-31128.

08319-3112A

$3.76

8

SPACER (12X17X85)

09180-12122

$23.05

9

SPACER, LEVER REAR

62684-40A10

$12.15

10

ROD, REAR CUSHION LEVER

62641-24D10

Unavailable

11

BOLT (12X115)

09103-12037

$13.53

12

NUT This part replaces 08319-31128.

08319-3112A

$3.76

13

ABSORBER ASSY, REAR SHOCK

62100-21E21

Unavailable

14

BOLT, LOWER

09103-10027

$4.60

15

BOLT, UPPER

09103-10064

$5.52

16

NUT

08319-31107

$2.73
