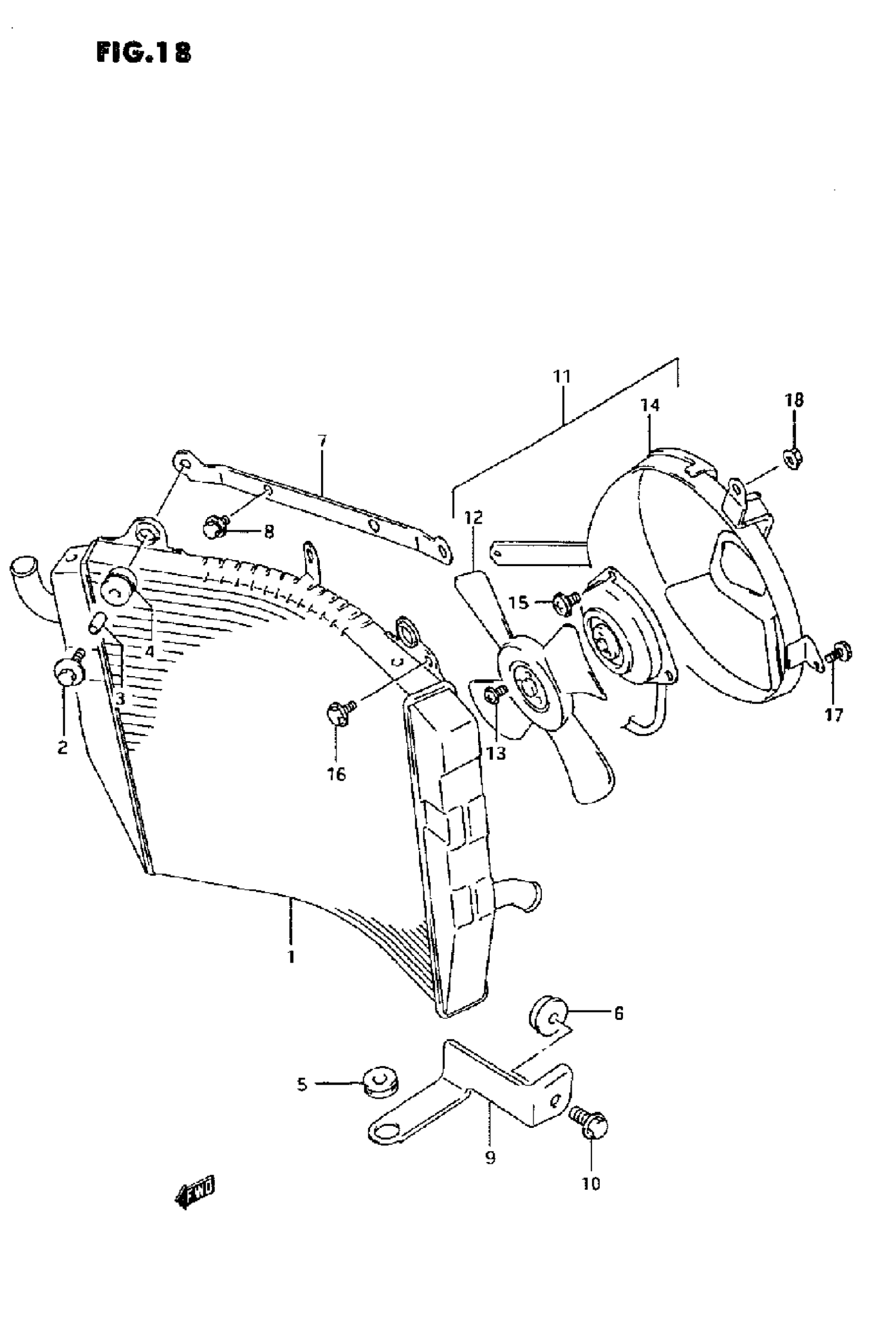

Suzuki RF600R (1995) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-21E00

Unavailable

2

BOLT

09116-06147

$3.20

3

SPACER (6.5X10.5X12)

09180-07004

$2.30

4

CUSHION, RADIATOR UPPER

17787-19A00

$3.56

5

CUSHION This part replaces 09320-12053.

09320-12092

$3.37

6

SPACER, RADIATOR LOWER

17761-21E00

Unavailable

7

BRACKET, RADIATOR UPPER | MODEL R This part replaces 17740-21E00.

17740-21E01

Unavailable

7

BRACKET, RADIATOR UPPER | MODEL S/T

17740-21E01

Unavailable

8

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

9

BRACKET, RADIATOR LOWER | MODEL R This part replaces 17750-21E00.

17750-21E02

Unavailable

9

BRACKET, RADIATOR LOWER | MODEL S/T

17750-21E02

Unavailable

10

.BOLT This part replaces 01550-08553.

01550-0855A

$3.05

11

FAN ASSY, RADIATOR

17800-21E01

Unavailable

12

FAN ASSY

17820-17E00

Unavailable

13

SCREW | MODEL R This part replaces 17801-05A00.

02112-0406B

$1.55

13

SCREW | MODEL S/T This part replaces 02112-04063.

02112-0406B

$1.55

14

SHROUD ASSY, FAN

17770-21E00

Unavailable

15

SCREW (M5X0.8) | MODEL R

17801-45C00

Unavailable

15

SCREW | MODEL S/T This part replaces 02142-05083.

02142-0508A

$1.49

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

17

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

18

NUT This part replaces 08316-10063.

08316-1006B

$2.50
