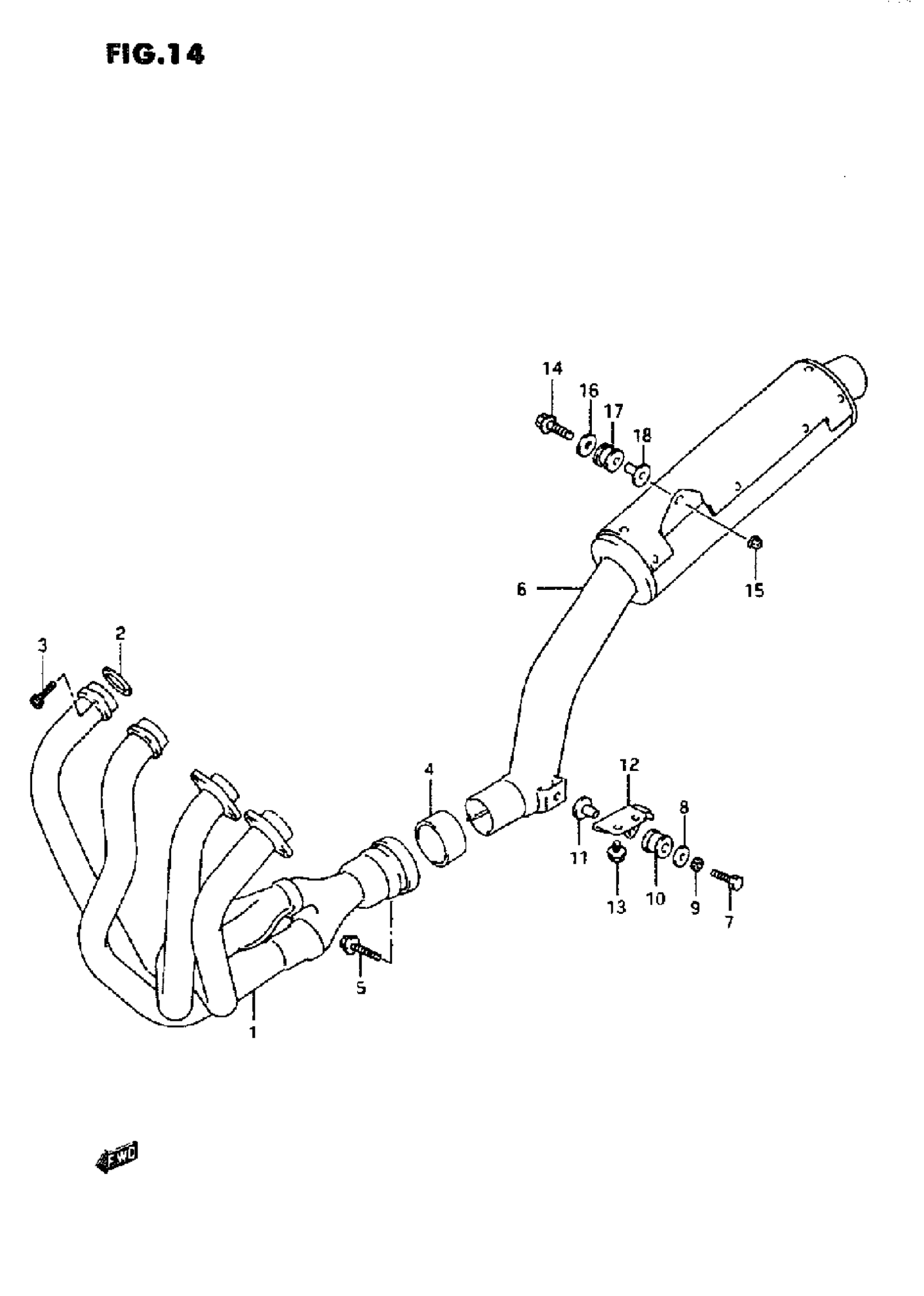

Suzuki RF600R (1995) MUFFLER (MODEL R) Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14100-21E00

Unavailable

2

GASKET, EXHAUST PIPE

14181-17E00

$11.68

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

4

CONNECTOR, MUFFLER

14771-07D00

Unavailable

5

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

6

NO DESCRIPTION AVAILABLE This part replaces 14310-21E00.

14310-21E01

Unavailable

7

BOLT This part replaces 01500-08403.

01500-0840A

$2.60

8

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

9

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

10

CUSHION

09320-12048

$5.11

11

SPACER

09180-08152

$5.83

12

BRACKET, MUFFLER

14770-21E00

Unavailable

13

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

14

BOLT

01550-08457

$4.00

15

NUT This part replaces 08316-10083.

08316-1008B

$2.66

16

WASHER (8.5X33X1.5) This part replaces 09160-08106.

09160-08146

$2.60

17

CUSHION

09320-12049

$10.68

18

SPACER

09180-08156

$6.70
