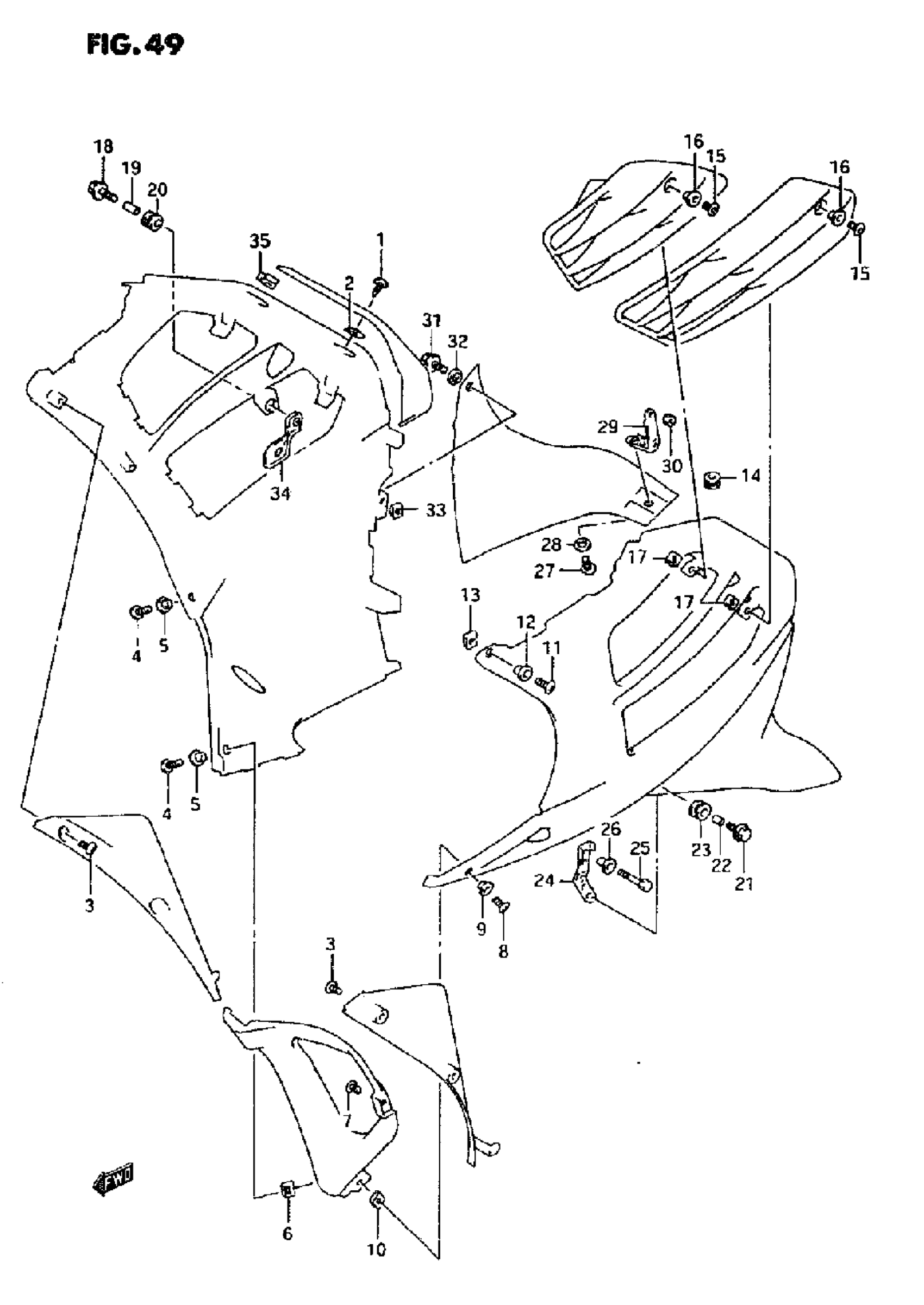

Suzuki RF600R (1995) INSTALLATION PARTS Diagram

#

Description
Price

1

SCREW, BRACKET This part replaces 03241-05163.

03241-0516A

$1.49

2

NUT This part replaces 09148-05004.

09148-05013

$2.07

3

SCREW This part replaces 03541-05103.

03541-0510A

$1.49

4

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

5

WASHER

09161-05017

$3.18

6

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

7

SCREW This part replaces 03541-05103.

03541-0510A

$1.49

8

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

9

WASHER

09161-05017

$3.18

10

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

11

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

12

WASHER

09161-05017

$3.18

13

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

14

CUSHION This part replaces 09320-03005.

09320-03004

$2.12

15

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

16

WASHER

09161-05017

$3.18

17

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

18

BOLT (6X20) | MODEL R/S This part replaces 09116-06056.

09116-06115

$1.97

18

BOLT, COVER LOWER (6X20) | MODEL T

09116-06115

$1.97

19

SPACER (6.5X9X10) This part replaces 09180-06114.

09180-06307

$3.05

20

CUSHION

09320-09016

$1.97

21

BOLT (6X20) | MODEL R/S This part replaces 09116-06056.

09116-06115

$1.97

21

BOLT, UNDER COWL (6X20) | MODEL T

09116-06115

$1.97

22

SPACER (6.5X9X10) This part replaces 09180-06114.

09180-06307

$3.05

23

CUSHION

09320-09016

$1.97

24

BRACKET, UNDER COWL RH

94740-21E21

Unavailable

24

BRACKET, UNDER COWL LH

94750-21E20

Unavailable

25

BOLT, RH (6X55)

01570-06553

Unavailable

25

BOLT This part replaces 01570-06453.

01570-0645A

$3.03

26

SPACER

09180-06202

Unavailable

27

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

28

WASHER

09161-05017

$3.18

29

BRACKET, REAR

94761-21E00

Unavailable

30

NUT This part replaces 08316-20063.

08316-2006A

$2.63

31

SCREW, SCREEN | MODEL R This part replaces 09139-05022.

09139-05042

$2.90

31

SCREW, REAR (5X14) | MODEL S/T

09139-05024

$2.06

32

WASHER

09161-05017

$3.18

33

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

34

BRACKET, UNDER COWL RH

94531-21E01

Unavailable

34

BRACKET, UNDER COWL LH

94541-21E01

Unavailable

35

CUSHION, UNDER PANEL

94642-06C00

Unavailable
