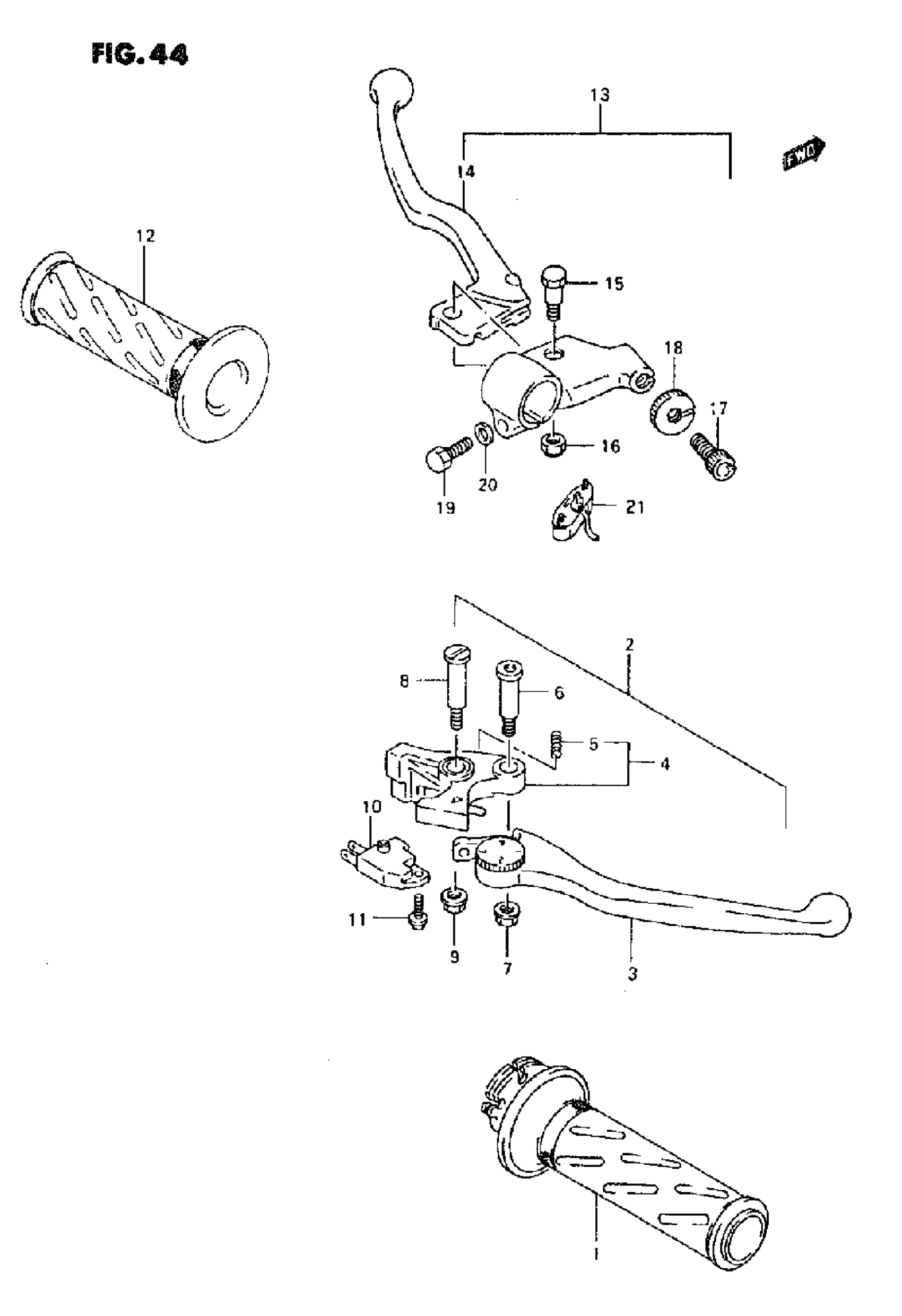

Suzuki RF600R (1995) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE | MODEL R/S This part replaces 57110-22D01.

57110-22D03

$29.21

1

GRIP, THROTTLE | MODEL T This part replaces 57110-22D02.

57110-22D03

$29.21

2

LEVER ASSY, BRAKE This part replaces 57300-40C01.

57300-40C10

$78.02

3

LEVER, ADJUST

57420-32C00

$28.92

4

KNOCKER This part replaces 57430-40C00.

57430-40C10

$59.25

5

SPRING

57438-32C00

$5.67

6

BOLT

57437-32C01

$8.60

7

NUT This part replaces 08319-31065.

08319-3106A

$2.03

8

BOLT, LEVER

57431-17C00

$7.11

9

NUT This part replaces 08316-16064.

08316-1006B

$2.50

10

SWITCH ASSY,FR BRAKE This part replaces 57460-17C00.

57460-14J02

$38.46

11

SCREW

57465-17C00

$2.19

12

GRIP, LH (BLACK) | MODEL R/S This part replaces 57211-22D00.

57211-22D02-291

$14.55

12

GRIP, LH (BLACK) | MODEL T This part replaces 57211-22D01.

57211-22D02-291

$14.55

13

LEVER ASSY, CLUTCH

57500-19C01

Unavailable

14

LEVER This part replaces 57620-19C01.

57620-27A31

$22.77

15

BOLT

57431-49110

$6.31

16

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

17

ADJUSTER

57441-44400

$6.28

18

NUT | ->57442-11010 This part replaces 57442-44400.

57442-11010

$2.79

18

NUT

57442-11010

$2.79

19

BOLT

01204-06204

$2.72

20

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

21

SWITCH ASSY, CLUTCH | <-57560-08AOO

57560-18D10

Unavailable
