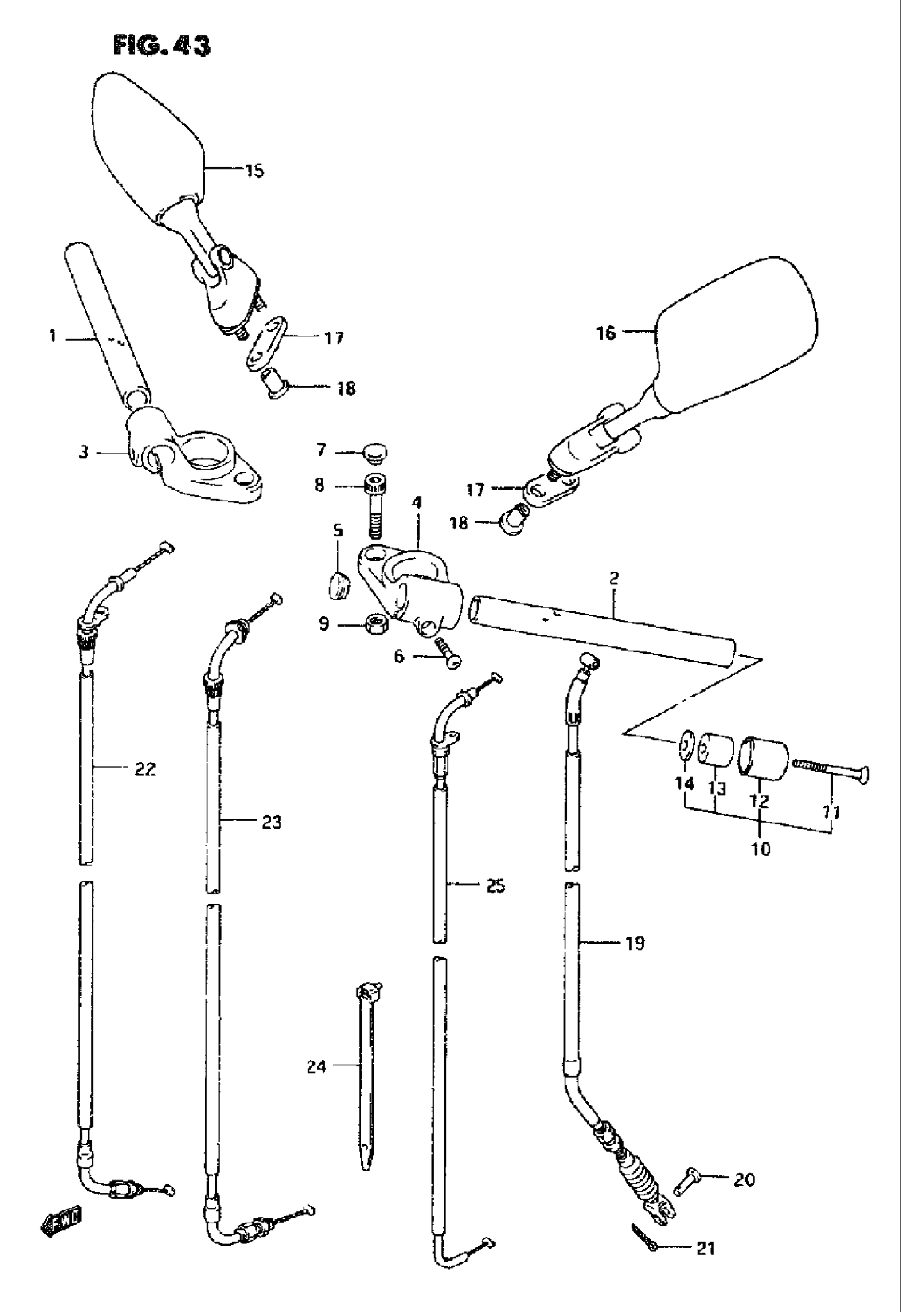

Suzuki RF600R (1995) HANDLE BAR Diagram

#

Description
Price

1

HANDLEBAR, RH | MODEL R/S This part replaces 56110-31E10.

56110-31E11

Unavailable

1

HANDLEBAR, RH | MODEL T

56110-31E11

Unavailable

2

HANDLEBAR, LH | MODEL R/S This part replaces 56150-31E10.

56150-31E11

Unavailable

2

HANDLEBAR, LH | MODEL T

56150-31E11

Unavailable

3

HOLDER, HANDLEBAR RH

56211-21E10

Unavailable

4

HOLDER, HANDLEBAR LH

56221-21E10

Unavailable

5

CAP, HANDLEBAR

09250-18003

$2.45

6

BOLT

09106-08129

$5.40

7

CAP

09250-08014

$2.85

8

BOLT

09106-10061

Unavailable

9

NUT

08319-31107

$2.73

10

BALANCER SET,HA This part replaces 56200-02821.

56200-02822

$33.95

11

SCREW This part replaces 02122-06453.

02122-0645B

$2.76

12

CAP

56274-04700

Unavailable

13

BALANCER

56271-49410

$30.95

14

SPACER

56275-34401

$4.02

15

MIRROR ASSY, REAR VIEW RH

56500-24D11

Unavailable

16

MIRROR ASSY, REAR VIEW LH

56600-24D11

Unavailable

17

CUSHION, MIRROR

94576-22D00

$5.44

18

NUT, MIRROR

56619-12C00

$7.78

19

CABLE ASSY, CLUTCH | MODEL R This part replaces 58200-21E00.

58200-21E01

Unavailable

19

CABLE ASSY, CLUTCH | MODEL S/T

58200-21E01

Unavailable

20

PIN

09200-06011

Unavailable

21

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

22

CABLE ASSY,THRO | MODEL R This part replaces 58300-21E00.

58300-21E01

Unavailable

22

CABLE ASSY, THROTTLE NO.1 | MODEL S/T

58300-31E01

Unavailable

23

CABLE ASSY,THRO | MODEL R This part replaces 58300-21E10.

58300-21E11

Unavailable

23

CABLE ASSY, THROTTLE NO.2 | MODEL S/T

58300-31E11

Unavailable

24

CLAMP | MODEL R

09407-22404

Unavailable

25

CABLE,STARTER This part replaces 58410-21E00.

58410-21E01

Unavailable
