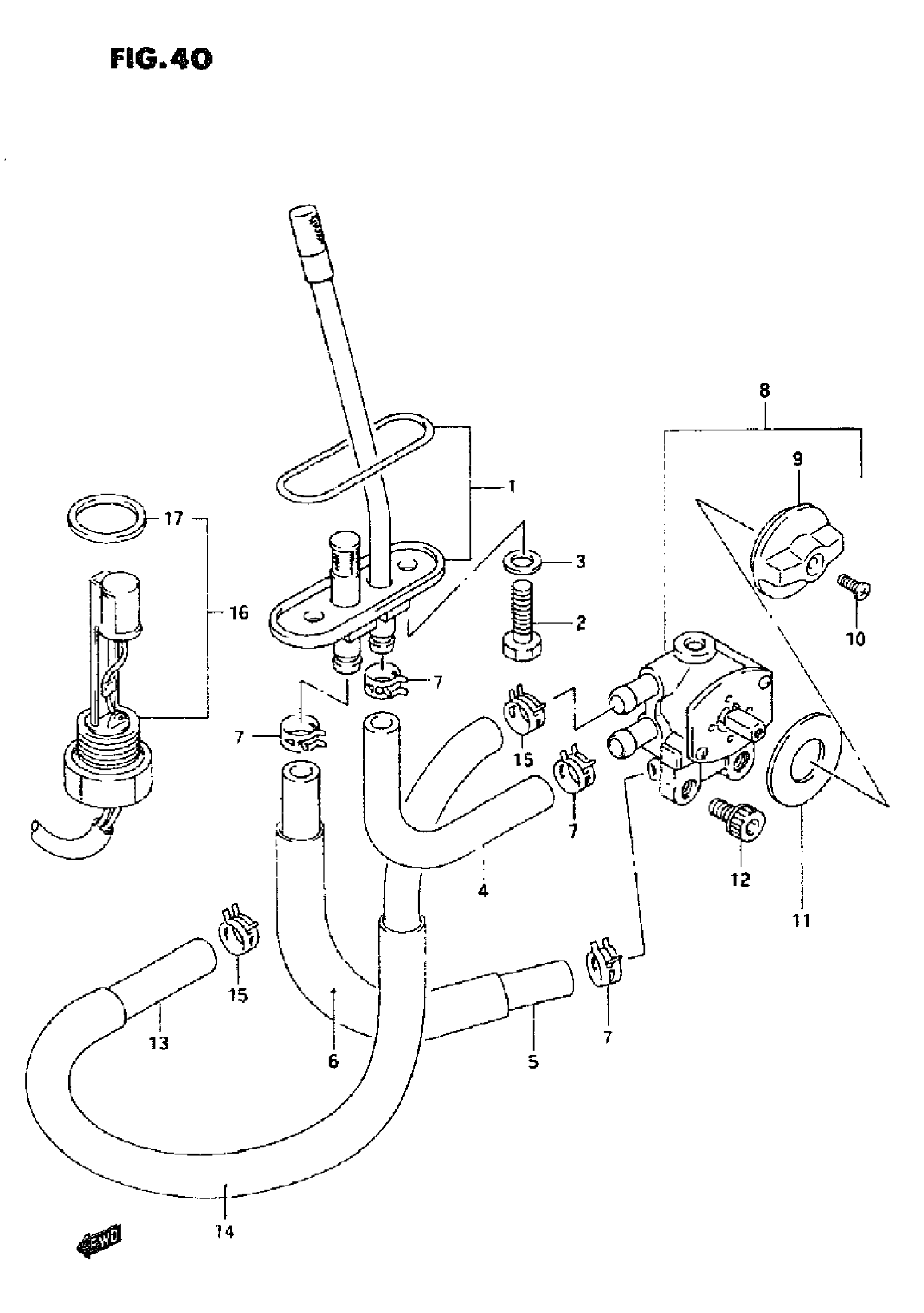

Suzuki RF600R (1995) FUEL COCK Diagram

#

Description
Price

1

FILTER UNIT,FUE | MODEL R This part replaces 44330-21E00.

44330-21E11

Unavailable

1

FILTER UNIT,FUE | MODEL S/T This part replaces 44330-21E10.

44330-21E11

Unavailable

2

BOLT | MODEL R/S This part replaces 09128-06006.

09128-06057

$1.65

2

BOLT | MODEL T

09128-06057

$1.65

3

GASKET

09168-06026

$3.10

4

HOSE,FUEL,ON This part replaces 44431-21E00.

44431-21ER0

$13.68

5

HOSE,6.5X11.5X6 This part replaces 09354-70123-600.

44421-12FR0

$12.33

6

PROTECTOR, RES (L:600->120)

09351-14152-600

$10.62

7

CLIP This part replaces 09401-11407.

09401-11415

$2.23

8

COCK ASSY,FUEL This part replaces 44300-21E00.

44300-21E01

Unavailable

9

LEVER

44306-21E00

Unavailable

10

.SCREW This part replaces 44307-21E00.

02122-0412A

$1.93

11

COVER, FUEL COCK

44391-21E00

Unavailable

12

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

13

HOSE,6.5X11.5X6 This part replaces 09354-70123-600.

44421-12FR0

$12.33

14

PROTECTOR (L:600->280)

09351-14152-600

$10.62

15

CLIP This part replaces 09401-11407.

09401-11415

$2.23

16

GAUGE ASSY,FUEL This part replaces 34810-40C01.

34810-40C02

Unavailable

17

GASKET,FUEL LEV This part replaces 34825-40C00.

34825-40C01

$5.02
