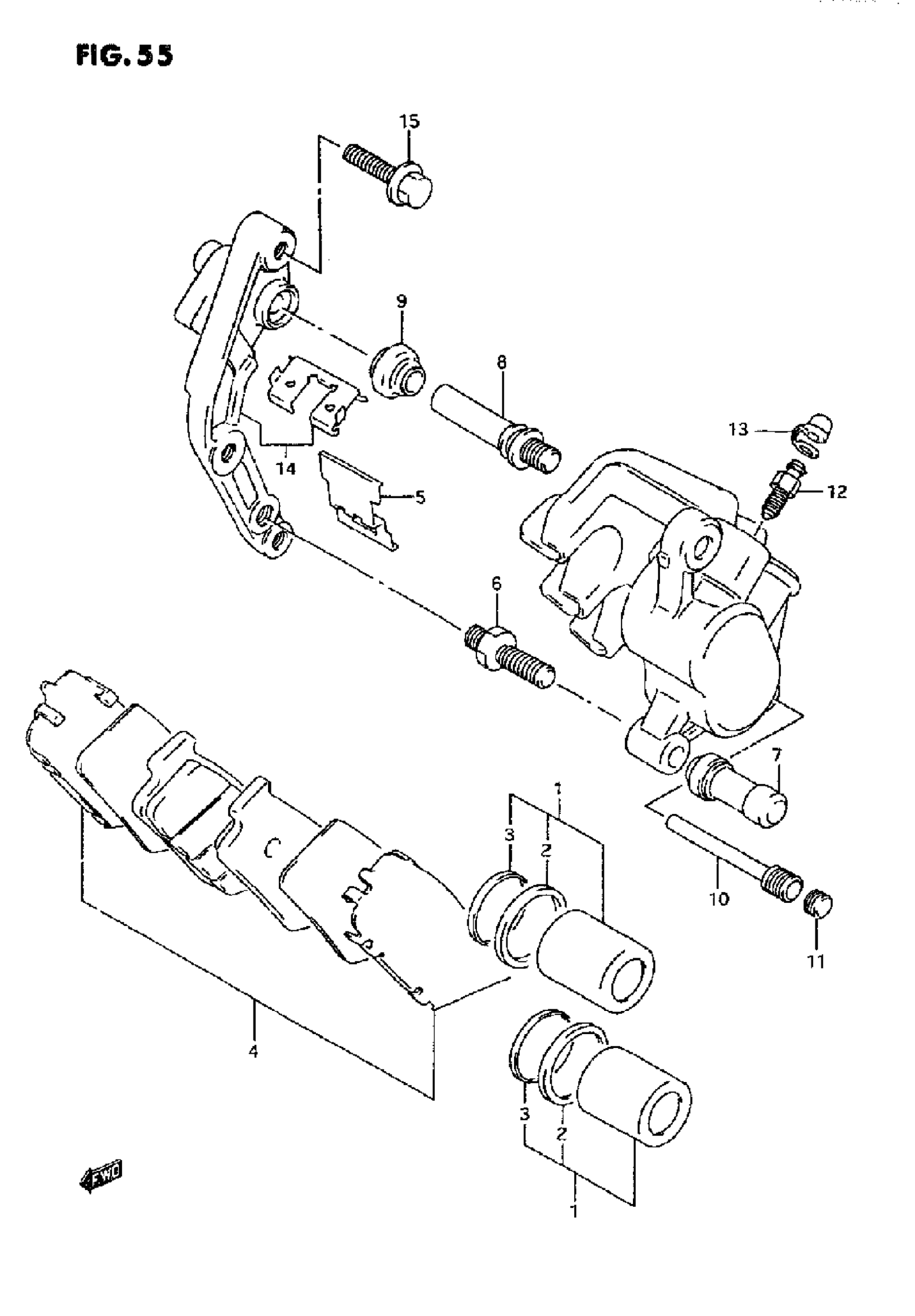

Suzuki RF600R (1995) FRONT CALIPERS Diagram

#

Description
Price

1

PISTON SET

59300-21810

$66.25

2

SEAL SET, PISTON This part replaces 59107-21E10.

69100-21840

$13.60

3

SEAL, DUST

59108-21E10

Unavailable

4

PAD SET | MODEL R

59300-21820

Unavailable

4

PAD SET | MODEL S/T

59300-21840

Unavailable

5

SPRING, PAD

59115-21E10

$14.72

6

PIN

59382-14500

$8.95

7

BOOT

59386-13A00

$7.95

8

PIN

59187-21E10

$26.73

9

BOOT

59303-14500

$5.52

10

PIN

59145-21E10

$21.57

11

PLUG

59146-21E10

$6.15

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34

14

BRACKET, RH

59151-21E10

$120.05

14

BRACKET, LH

59351-21E10

Unavailable

15

BOLT

09103-08197

$1.70
