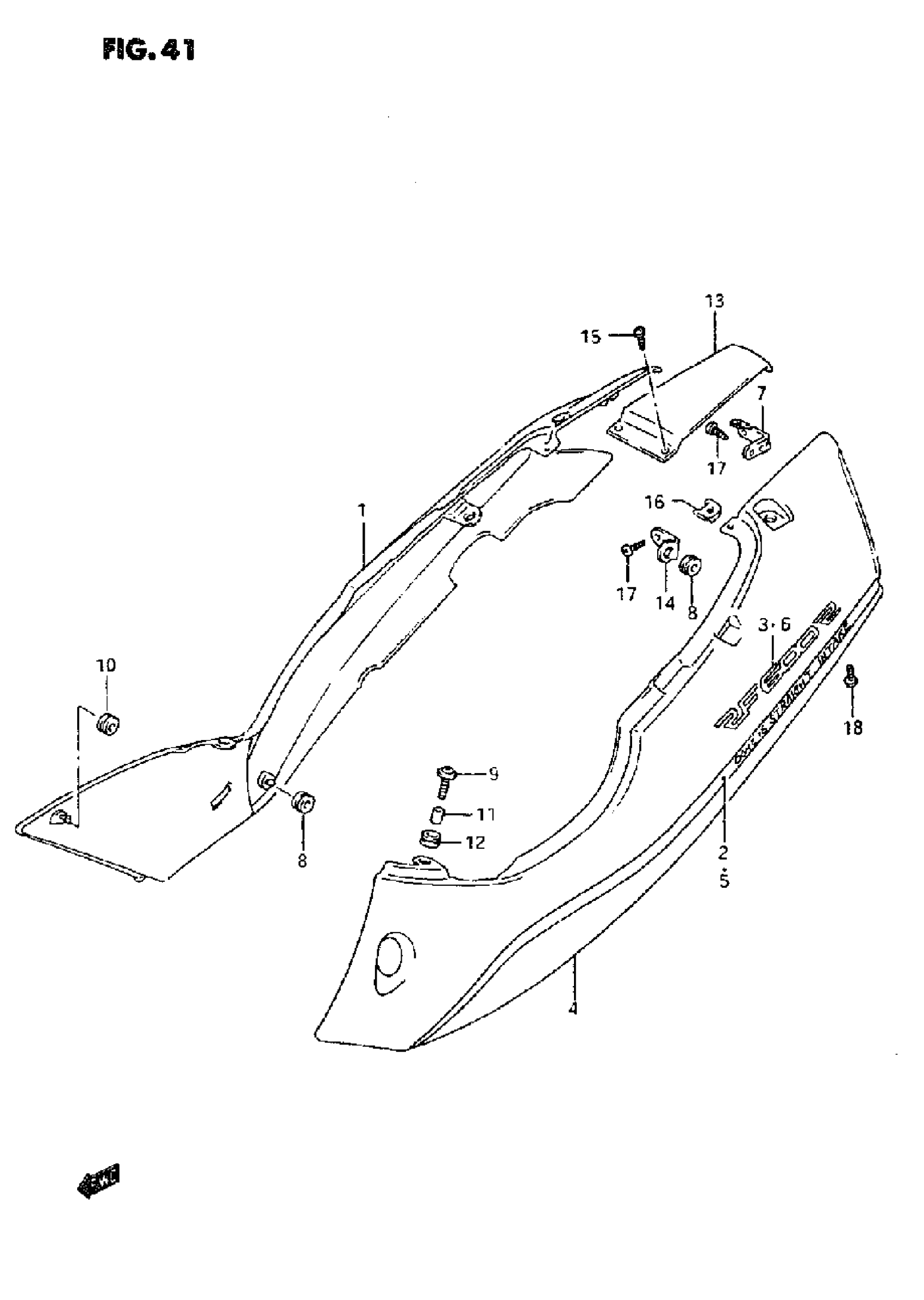

Suzuki RF600R (1995) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (RED) | MODEL R

47100-21E00-1TY

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL R

47100-21E00-34R

Unavailable

1

COVER, FRAME RH (GREEN) | MODEL S

47100-21E00-1ZV

Unavailable

1

COVER, FRAME RH (RED) | MODEL S

47100-21E00-28V

Unavailable

1

COVER, FRAME RH (RED) | MODEL T FOR E6S

47100-21E00-3AX

Unavailable

2

TAPE SET, RH | MODEL R FOR 1TY

68130-21E00-B7G

Unavailable

2

TAPE SET, RH | MODEL R FOR 34R

68130-21E00-C6A

Unavailable

2

TAPE SET, RH | MODEL S FOR IZV

68130-21E00-D3M

Unavailable

2

TAPE SET, RH | MODEL S FOR 28V

68130-21E00-D3L

Unavailable

2

TAPE SET, RH | MODEL T

68130-21E00-E8C

Unavailable

3

EMBLEM | MODEL R FOR 1TY

68131-21E00-B8S

Unavailable

3

EMBLEM | MODEL R FOR 34R

68131-21E00-C6B

Unavailable

3

EMBLEM | MODEL S FOR 1ZV

68131-21E00-D3R

Unavailable

3

EMBLEM | MODAL S FOR 28V

68131-21E00-A02

Unavailable

3

EMBLEM | MODEL T FOR 3AX

68131-21E00-E8E

Unavailable

4

COVER, FRAME LH (RED) | MODEL R

47200-21E00-1TY

Unavailable

4

COVER, FRAME LH (BLUE) | MODEL R

47200-21E00-34R

Unavailable

4

COVER, FRAME LH (GREEN) | MODEL S

47200-21E00-1ZV

Unavailable

4

COVER, FRAME LH (RED) | MODEL S

47200-21E00-28V

Unavailable

4

COVER, FRAME LH (RED) | MODEL T FOR E6S

47200-21E00-3AX

Unavailable

5

TAPE SET, LH | MODEL R FOR 1TY

68140-21E00-B7G

Unavailable

5

TAPE SET, LH | MODEL R FOR 34R

68140-21E00-C6A

Unavailable

5

TAPE SET, LH | MODEL S FOR 1ZV

68140-21E00-D3M

Unavailable

5

TAPE SET, LH | MODEL S FOR 28V

68140-21E00-D3L

Unavailable

5

TAPE SET, LH | MODEL 1

68140-21E00-E8C

Unavailable

6

EMBLEM | MODEL R FOR 1TY

68131-21E00-B8S

Unavailable

6

EMBLEM | MODEL R FOR 34R

68131-21E00-C6B

Unavailable

6

EMBLEM | MODEL S FOR 1ZV

68131-21E00-D3R

Unavailable

6

EMBLEM | MODEL S FOR 28V

68131-21E00-A02

Unavailable

6

EMBLEM | MODEL T FOR 3AX

68131-21E00-E8E

Unavailable

7

BRACKET, FRAME COVER RH

47191-21E00

Unavailable

7

BRACKET, FRAME COVER LH

47192-21E00

Unavailable

8

CUSHION, SIDE

09320-08018

$3.04

9

SCREW (6X16) | MODEL R This part replaces 09136-06102.

09136-06121

$2.76

9

BOLT, FRONT | MODEL S/T

09116-06131

$2.36

10

CUSHION,FRAME C This part replaces 47161-21E00.

47161-21E01

$10.17

11

SPACER This part replaces 09180-06225.

09180-06265

$3.68

12

CUSHION This part replaces 09320-08061.

09320-08525

$3.35

13

COVER, FRAME CENTER (RED) | MODEL R

47311-21E00-1TY

Unavailable

13

COVER, FRAME CENTER (BLUE) | MODEL R

47311-21E00-34R

Unavailable

13

COVER, FRAME CENTER (GREEN) | MODEL S

47311-21E00-1ZV

Unavailable

13

COVER, FRAME CENTER (RED) | MODEL S/T

47311-21E00-28V

Unavailable

14

BRACKET, REAR

47193-21E00

Unavailable

15

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

16

NUT

09148-05021

$1.86

17

SCREW This part replaces 03541-14123.

03541-1412A

$2.13

18

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49
