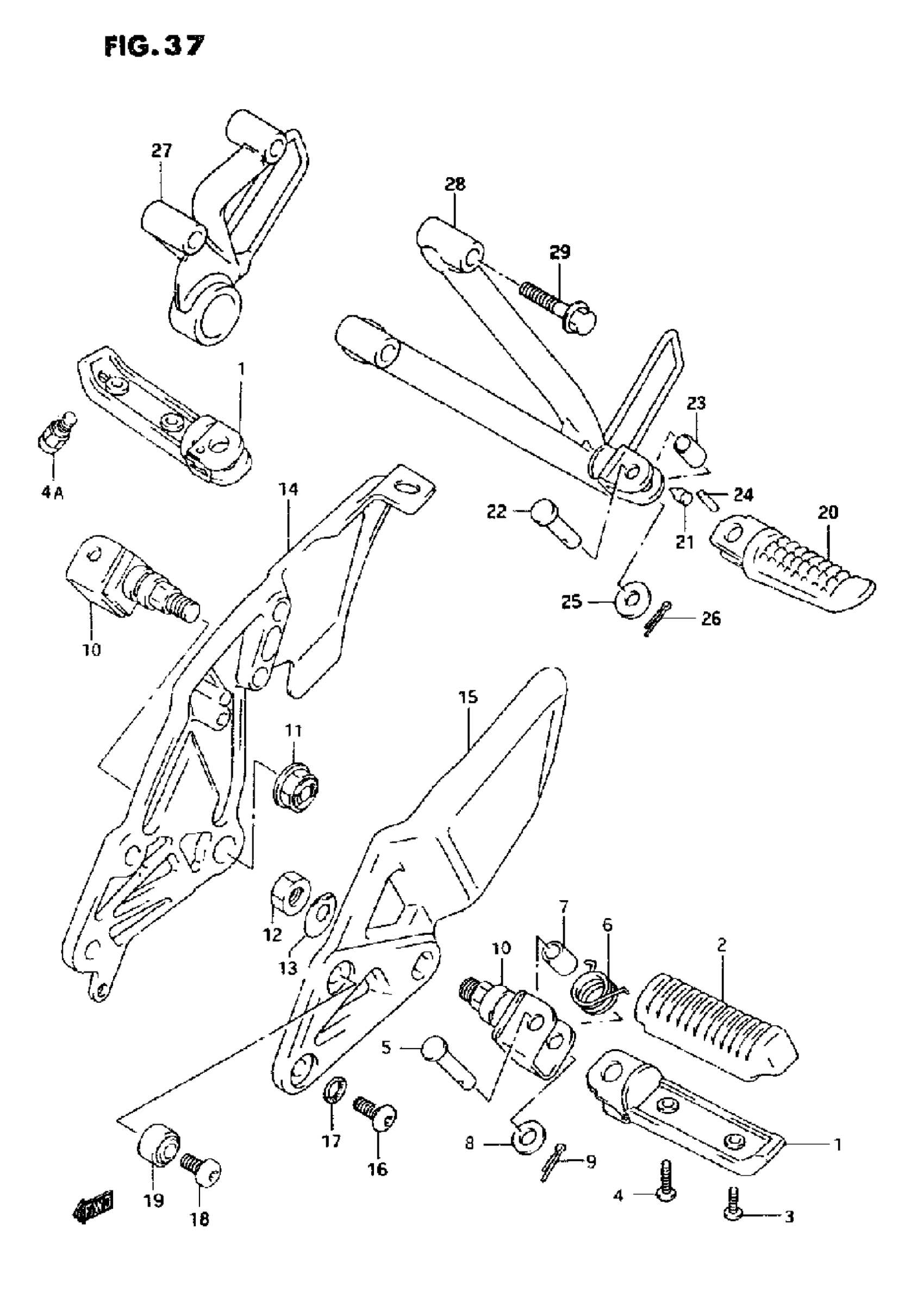

Suzuki RF600R (1995) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH | MODEL R

43511-40C00

$63.90

1

BAR, FRONT FOOTREST RH | MODEL S/T

43511-31E00

Unavailable

1

BAR, FRONT FOOTREST LH

43521-40C00

$63.90

2

RUBBER

43550-40C11

$21.90

3

SCREW This part replaces 02112-35163.

02112-3516A

$2.43

4

SCREW This part replaces 02112-35203.

02112-3520B

Unavailable

4

BOLT, BANK SENSOR | MODEL S/T This part replaces 43576-48B01.

43576-48B02

$7.48

5

PIN

09200-08057

$2.36

6

SPRING | MODEL R/S This part replaces 09448-19020.

09448-18022

$3.79

6

SPRING | MODEL T

09448-18022

$3.79

7

SPACER

09180-08149

$5.58

8

WASHER | MODEL R

09160-08043

$1.83

9

PIN This part replaces 04111-25158.

04111-2515A

$1.49

10

HOLDER, BAR

43530-11D00

Unavailable

11

NUT This part replaces 08319-31128.

08319-3112A

$3.76

12

NUT This part replaces 08310-00123.

08310-0012A

$2.36

13

WASHER, LH

43214-17C01

Unavailable

14

BRACKET, FOOTREST RH

43511-21E00

Unavailable

15

BRACKET, FOOTREST LH

43521-21E00

Unavailable

16

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

17

WASHER

09164-08015

$3.21

18

BOLT

09106-08129

$5.40

19

BUSH

09319-08025

Unavailable

20

BAR, PILLION RH

43611-32C00

$54.48

20

BAR, PILLION LH

43621-32C00

Unavailable

21

CUSHION

43691-17C00

$6.38

22

PIN

09200-08067

Unavailable

23

SPACER

09180-08149

$5.58

24

PIN

09261-04003

Unavailable

25

WASHER

08322-01087

$2.13

26

PIN This part replaces 04111-25158.

04111-2515A

$1.49

27

BRACKET, PILLION RH | MODEL R

43810-21E10

Unavailable

27

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 43810-21E20.

43810-21E20-0FP

Unavailable

27

BRACKET, PILLION RH (BLACK) | MODEL T

43810-21E20-019

Unavailable

28

NO DESCRIPTION AVAILABLE | MODEL R/S This part replaces 43820-21E10.

43820-21E10-0FP

Unavailable

28

BRACKET, PILLION LH (BLACK) | MODEL T

43820-21E10-019

Unavailable

29

BOLT | ICA This part replaces 01550-08403.

01550-0840A

$3.05
