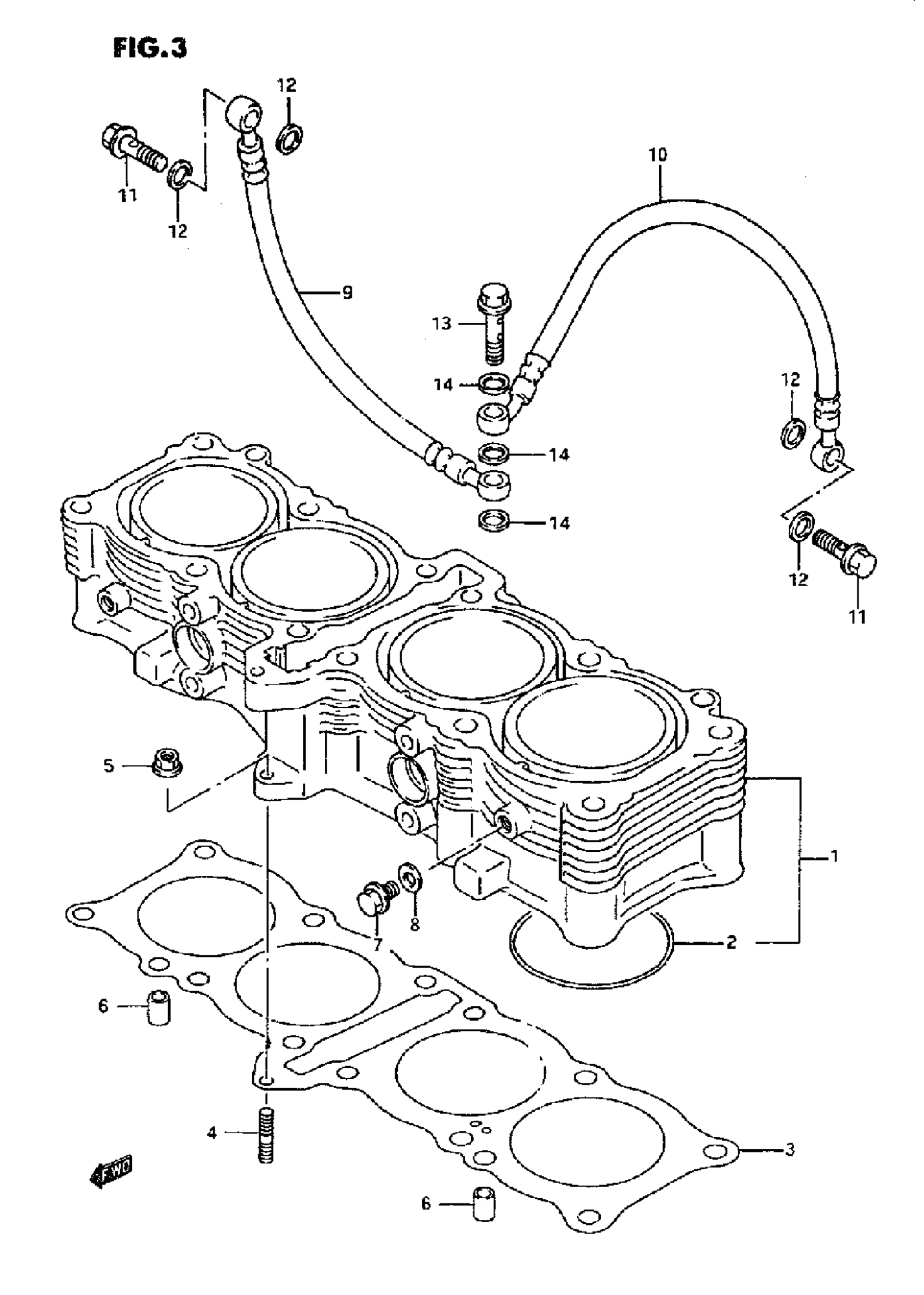

Suzuki RF600R (1995) CYLINER Diagram

#

Description
Price

1

CYLINDER | MODEL R This part replaces 11210-21E10.

11210-21E11

Unavailable

1

CYLINDER | MODEL S/T

11210-21E11

Unavailable

2

O RING

09280-71004

$23.94

3

GASKET, CYLINDER

11241-21E00

Unavailable

4

STUD BOLT | MODEL R This part replaces 01421-06205.

01421-0620A

$1.91

4

STUD BOLT | MODEL S/T This part replaces 01421-06203.

01421-0620A

$1.91

5

NUT This part replaces 08316-10063.

08316-1006B

$2.50

6

PIN

04211-11189

$1.78

7

BOLT, CYLINDER DRAIN | MODEL R

17415-14300

$2.99

8

GASKET (8.2X14X1) | MODEL R This part replaces 09168-08008.

09168-08016

$1.65

9

HOSE, OIL RH

11281-21E00

Unavailable

10

HO% , OIL LH

11282-21E00

Unavailable

11

BOLT,OIL PIPE This part replaces 11284-17E00.

09360-08013

$11.83

12

GASKET (8.2X14X1)

09168-08016

$1.65

13

NO DESCRIPTION AVAILABLE This part replaces 11285-32C00.

09360-10052

Unavailable

14

WASHER (10X15X1.5)

09161-10009

$1.84
