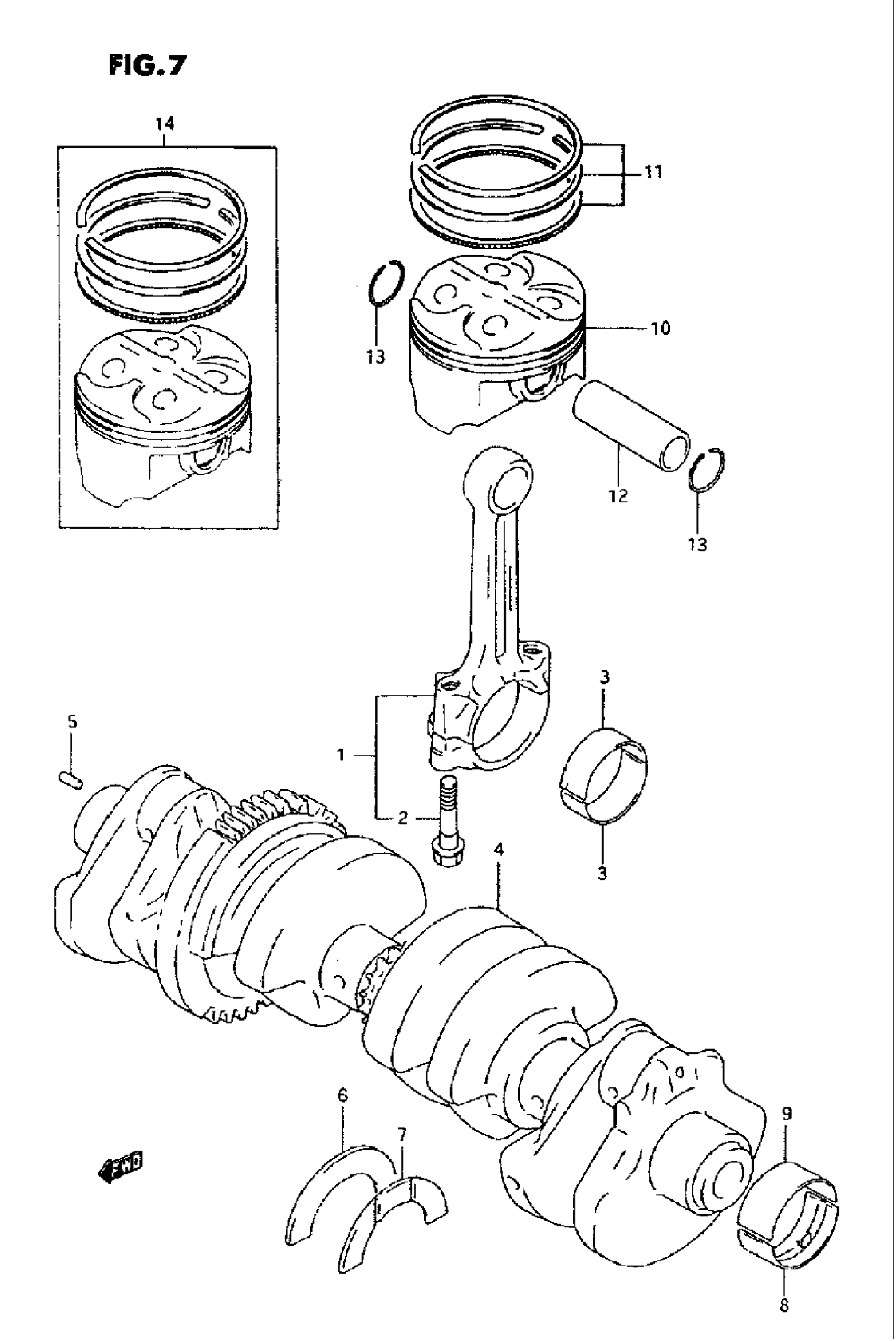

Suzuki RF600R (1995) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING

12160-18E02

Unavailable

2

BOLT

12163-27A52

Unavailable

3

BEARING, CRANK PIN (GREEN)

12164-18E00-0A0

Unavailable

3

BEARING, CRANK PIN (BLACK)

12164-18E00-0B0

Unavailable

3

BEARING, CRANK PIN (BROWN)

12164-18E00-0C0

Unavailable

3

BEARING, CRANK PIN (YELLOW)

12164-18E00-0D0

Unavailable

4

CRANKSHAFT SET

12000-18812

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (RED)

12228-17E00-0A0

$11.38

7

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

7

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

7

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

7

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

8

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-17E00-0A0

Unavailable

8

BEARING, CRANKSHAFT (BLACK)

12229-17E00-0B0

Unavailable

8

BEARING, CRANKSHAFT (BROWN)

12229-17E00-0C0

Unavailable

8

BEARING, CRANKSHAFT (YELLOW)

12229-17E00-0D0

Unavailable

9

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-17E10-0A0

Unavailable

9

BEARING, CRANKSHAFT (BLACK)

12229-17E10-0B0

$13.97

9

BEARING, CRANKSHAFT (BROWN)

12229-17E10-0C0

Unavailable

9

BEARING, CRANKSHAFT (YELLOW)

12229-17E10-0D0

Unavailable

10

PISTON | MODEL R

12111-18E12-0F0

Unavailable

10

PISTON | MODEL S/T

12111-18E20-0F0

Unavailable

11

RING SET, PISTON

12140-18E10

Unavailable

12

PIN, PISTON This part replaces 12151-78110.

12151-60D00

$17.37

13

CIRCLIP

09381-16001

$1.67

14

PISTON SET (OS:0.5) | MODEL R OPT

12100-18E10-050

Unavailable

14

PISTON SET (OS.1.0) | MODEL R OPT

12100-18E10-100

Unavailable

14

PISTON SET (OS:0.5) | MODEL S/T OPT

12100-18E20-050

Unavailable

14

PISTON SET (OS:1.0) | MODEL S/T OPT

12100-18E20-100

Unavailable
