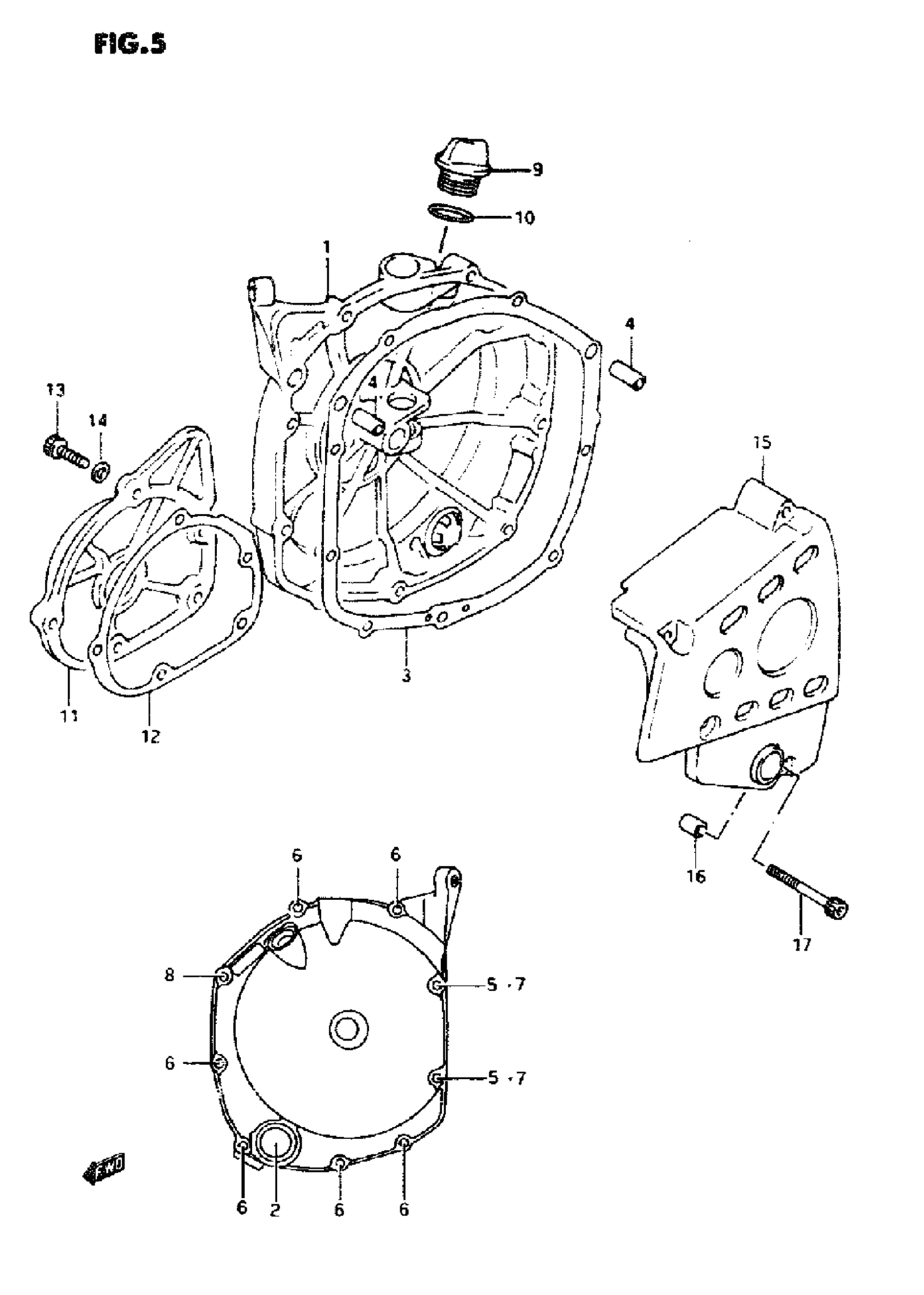

Suzuki RF600R (1995) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-21E00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-17E00

Unavailable

4

PIN

04211-09189

$1.65

5

GASKET

09168-06024

$2.20

6

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

7

BOLT This part replaces 07130-06303.

07130-0630B

$3.37

8

BOLT This part replaces 07130-06353.

07130-0635B

$3.37

9

.PLUG This part replaces 09259-20012.

09259-20008-XC0

$7.50

10

O RING

09280-17003

$1.65

11

COVER, SIGNAL GENERATOR

11381-31E00

Unavailable

12

GASKET, SIGNAL GENERATOR COVER

11491-17E01

Unavailable

13

BOLT (6X23)

09106-06082

$2.62

14

GASKET

09168-06024

$2.20

15

COVER. ENGINE SPROCKET

11361-21E10

Unavailable

16

PIN

04211-09129

$1.65

17

BOLT

09106-06083

$5.00
