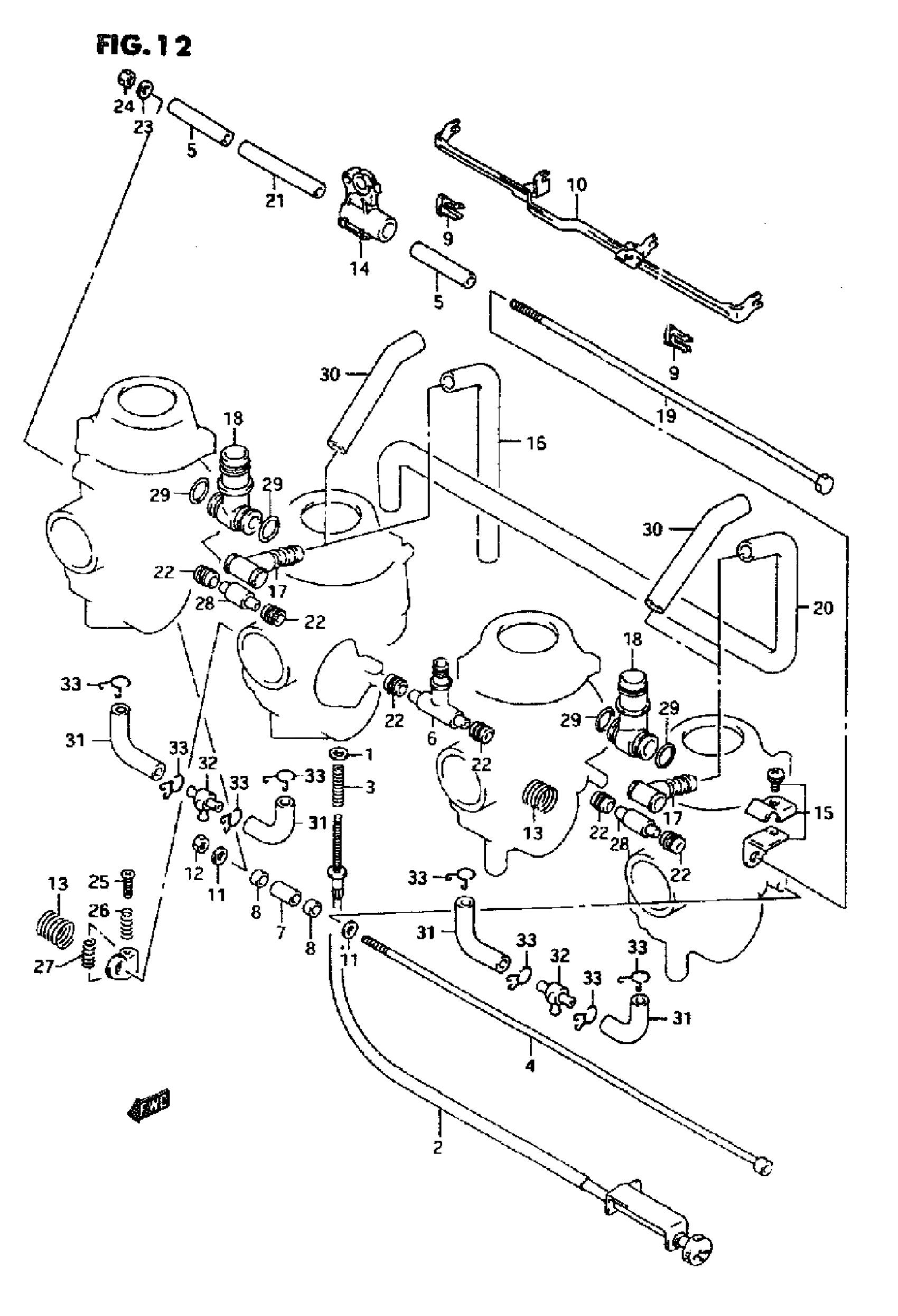

Suzuki RF600R (1995) CARBURETOR FITTINGS Diagram

#

Description
Price

1

WASHER

13427-38300

$1.92

2

ADJUSTER

13267-21E00

Unavailable

3

SPRING

13271-33C00

$6.03

4

BOLT

13612-21E00

Unavailable

5

RING

13331-21E00

Unavailable

6

NIPPLE

13685-21E00

Unavailable

7

RING

13331-21E20

Unavailable

8

RING

13331-21E30

Unavailable

9

HOLDER

13439-17C00

$10.62

10

LEVER, STARTER

13413-31E00

Unavailable

11

WASHER, FRONT | MODEL R/S This part replaces 13606-00A10.

08322-0105A

$1.84

11

WASHER, FRONT | MODEL T This part replaces 08322-01053.

08322-0105A

$1.84

12

NUT | MODEL R

13607-33C00

Unavailable

12

NUT | MODEL S/T This part replaces 08310-00053.

08310-0005A

$1.84

13

SPRING

13573-06C10

$7.77

14

NO DESCRIPTION AVAILABLE This part replaces 13413-06C10.

13427-06C00

Unavailable

15

BRACKET ASSY

13624-33C00

Unavailable

16

HOSE (ID:9X0D:13)

13683-21E10

$42.22

17

HOSE

13683-34C00

$9.03

18

NIPPLE

13685-33C00

Unavailable

19

BOLT

13612-21E10

Unavailable

20

HOSE (ID:9X0D:13)

13683-21E00

Unavailable

21

RING

13331-21E10

Unavailable

22

SEAL

13673-44B00

$4.60

23

.WASHER | MODEL R/S This part replaces 13606-06C00.

08322-0106B

$2.26

23

.WASHER | MODEL T This part replaces 08322-01063.

08322-0106B

$2.26

24

NUT | MODEL R/S This part replaces 13607-06C00.

08310-0006A

$1.84

24

NUT | MODEL T This part replaces 08310-00063.

08310-0006A

$1.84

25

SCREW

13267-44B00

$4.10

26

SPRING

13271-44B00

$3.89

27

SPRING This part replaces 13268-96110.

13268-96111

$4.35

28

PIPE

13685-21E10

Unavailable

29

O RING (D:1.9,ID:9.8) | MODEL R/S This part replaces 13509-33C00.

09280-10016

$3.37

29

O RING (D:1.9,ID:9.8) | MODEL T This part replaces 09280-10005.

09280-10016

$3.37

30

HOSE | CALIFORNIA ONLY

13683-21E30

Unavailable

31

HOSE | CALIFORNIA ONLY, MODEL R This part replaces 13684-48B00.

13684-48B11

$15.96

31

HOSE | CALIFORNIA ONLY MODEL S/T This part replaces 13684-48B10.

13684-48B11

$15.96

32

.NIPPLE | CALIFORNIA ONLY

13685-48B00

$12.15

33

CLIP | CALIFORNIA ONLY This part replaces 09401-10410.

09401-10401

$1.49
