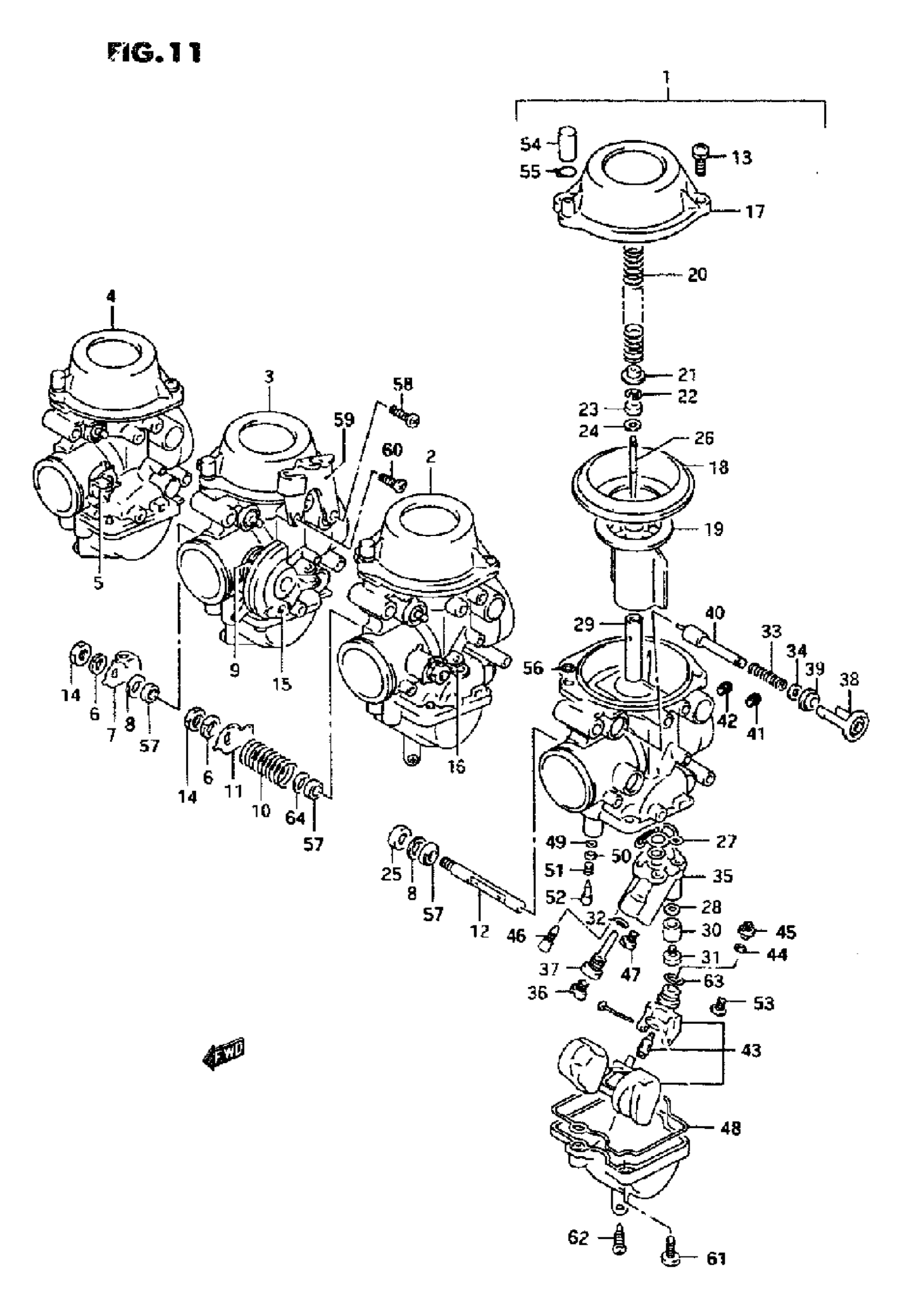

Suzuki RF600R (1995) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | MODEL R

13201-21E40

Unavailable

1

CARBURETOR ASSY, LH | MODEL S/T

13201-21EG0

Unavailable

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY, MODEL R

13201-21E50

Unavailable

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY MODEL S/T

13201-21EH0

Unavailable

2

CARBURETOR ASSY, ML | MODEL R

13202-21E40

Unavailable

2

CARBURETOR ASSY, ML | MODEL S/T

13202-21EG0

Unavailable

2

CARBURETOR ASSY, ML | CALIFORNIA ONLY, MODEL R

13202-21E50

Unavailable

2

CARBURETOR ASSY, ML | CALIFORNIA ONLY MODEL S/T

13202-21EH0

Unavailable

3

CARBURETOR ASSY, MR | MODEL R

13203-21E40

Unavailable

3

CARBURETOR ASSY, MR | MODEL S/T

13203-21EG0

Unavailable

3

CARBURETOR ASSY, MR | CALIFORNIA ONLY, MODEL R

13203-21E50

Unavailable

3

CARBURETOR ASSY, MR | CALIFORNIA ONLY MODEL S/T

13203-21EH0

Unavailable

4

CARBURETOR ASSY, RH | MODEL R

13204-21E40

Unavailable

4

CARBURETOR ASSY, RH | MODEL S/T

13204-21EG0

Unavailable

4

CARBURETOR ASSY, RH | CALIFORNIA ONLY, MODEL R

13204-21E50

Unavailable

4

CARBURETOR ASSY, RH | CALIFORNIA ONLY MODEL S/T

13204-21EH0

Unavailable

5

SHAFT, THROTTLE | RH

13550-21E30

Unavailable

6

.LOCK WASHER | ML, MR, MODEL R This part replaces 08321-21087.

08321-01087

$2.13

6

.LOCK WASHER | ML, MR, MODEL S/T

08321-01087

$2.13

7

LEVER, THROTTLE | MR

13553-21E10

Unavailable

8

GASKET

13557-47070

$3.59

9

SPRING | MR

13573-21E10

Unavailable

10

SPRING | ML

13573-21E00

Unavailable

11

LEVER, THROTTLE | ML

13550-21E10

Unavailable

12

SHAFT, THROTTLE | LH

13550-21E00

Unavailable

13

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

14

NUT | ML, MR This part replaces 08310-00083.

08310-0008A

$1.84

15

SHAFT, THROTTLE | MR

13550-21E20

Unavailable

16

SHAFT, THROTTLE | ML

13553-21E00

Unavailable

17

COVER, DIAPHRAGM

13502-17E20

Unavailable

17

COVER, DIAPHRAGM | CALIFORNIA ONLY

13502-33C00

Unavailable

18

.DIAPHRAGM | MODEL R This part replaces 13507-17C00.

13507-17C02

$29.60

18

.DIAPHRAGM | MODEL S/T This part replaces 13507-17C01.

13507-17C02

$29.60

19

VALVE, PISTON

13501-18E00

Unavailable

20

SPRING

13417-12D00

Unavailable

21

RING

13382-42A00

$4.48

22

.E-RING

13394-40D20

$5.45

23

RING

13387-47010

$7.22

24

WASHER

13382-44030

$3.71

25

RING | LH, RH

13574-32C00

Unavailable

26

NEEDLE, JET (5E97-1)

13383-21E10

Unavailable

26

NEEDLE, JET (5E97-1) | CALIFORNIA ONLY, MODEL R

13383-21E10

Unavailable

26

NEEDLE, JET (5E95-1) | CALIFORNIA ONLY MODEL S/T

13383-21E30

Unavailable

27

O RING

13251-33C00

$9.72

28

WASHER

13332-05A10

$3.62

29

JET, NEEDLE (0-9) | MODEL R

09494-00810

Unavailable

29

JET, NEEDLE (0-9) | MODEL S/T

09494-00854

Unavailable

29

JET, NEEDLE (0-8) | CALIFORNIA ONLY, MODEL R

09494-00814

Unavailable

29

JET, NEEDLE (0-8) | CALIFORNIA ONLY MODEL S/T

09494-00853

Unavailable

30

RING

13331-21E40

Unavailable

31

SCREW

13602-06C20

Unavailable

32

O RING

13294-33C00

$4.64

33

SPRING

13417-26D00

$6.08

34

WASHER

13432-47090

$2.28

35

HOLDER, JET

13220-21E00

Unavailable

36

JET, MAIN (112.5) This part replaces 09491-22025.

09491-22014

$17.37

36

JET, MAIN (112.5) | CALIFORNIA ONLY, MODEL R This part replaces 09491-22025.

09491-22014

$17.37

36

JET,MAIN(107.5) | CALIFORNIA ONLY MODEL S/T This part replaces 09491-21020.

09491-21019

$12.72

37

HOLDER, JET

13385-33C20

Unavailable

37

HOLDER, JET | CALIFORNIA ONLY

13385-21E00

Unavailable

38

HOLDER, GUIDE

13418-17C10

$13.90

39

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$4.19

40

PLUNGER ASSY

13411-05320

$26.80

41

JET, MAIN AIR (0.6) | MODEL R

09493-60004

$16.87

41

JET, MAIN AIR (0.7) | MODEL S/T

09493-70009

$16.87

41

JET, MAIN AIR (0.6) | CALIFORNIA ONLY

09493-60004

$16.87

42

JET, PILOT AIR (1.45)

09493-29002

Unavailable

42

JET, PILOT AIR (1.35) | CALIFORNIA ONLY

09493-27002

$16.87

43

FLOAT, NEEDLE V This part replaces 13250-21E00.

13250-31E00

Unavailable

44

RING

13331-06C20

Unavailable

45

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

46

JET, PILOT (15)

09492-15017

$17.74

46

JET, PILOT (10) | CALIFORNIA ONLY

09492-10002

Unavailable

47

JET, STARTER (47.5)

09491-47001

Unavailable

48

SEAL

13258-33C00

$14.37

49

O-RING This part replaces 13295-29900.

13295-29901

$4.34

50

WASHER

13291-29900

$1.98

51

.SPRING (NT:45)

13268-47070

$4.34

52

SCREW, PILOT (1.1/4)

13279-47070

$13.36

53

SCREW

13602-05A10

$3.56

54

CAP

13508-17C00

$4.74

55

CLIP | MODEL R/S This part replaces 13671-33600.

13671-05A40

$3.71

56

O RING

13251-06C10

$4.52

57

SEAL This part replaces 13651-51010.

13651-51011

$2.20

58

SCREW | MR This part replaces 13602-05148.

13601-05148-XC0

$3.11

59

BRACKET | MR, MODEL R

13627-21E00

Unavailable

59

BRACKET | MR, MODEL S/T

13627-31E00

Unavailable

60

SCREW | MR, MODEL R/S This part replaces 13603-05108.

02122-0510A

Unavailable

60

SCREW | MR, MODEL T This part replaces 02122-05103.

02122-0510A

Unavailable

61

SCREW

02112-05127

$1.97

62

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

63

O RING This part replaces 13374-44080.

13374-35C00

$5.99

64

RING | ML

13557-07D00

Unavailable
