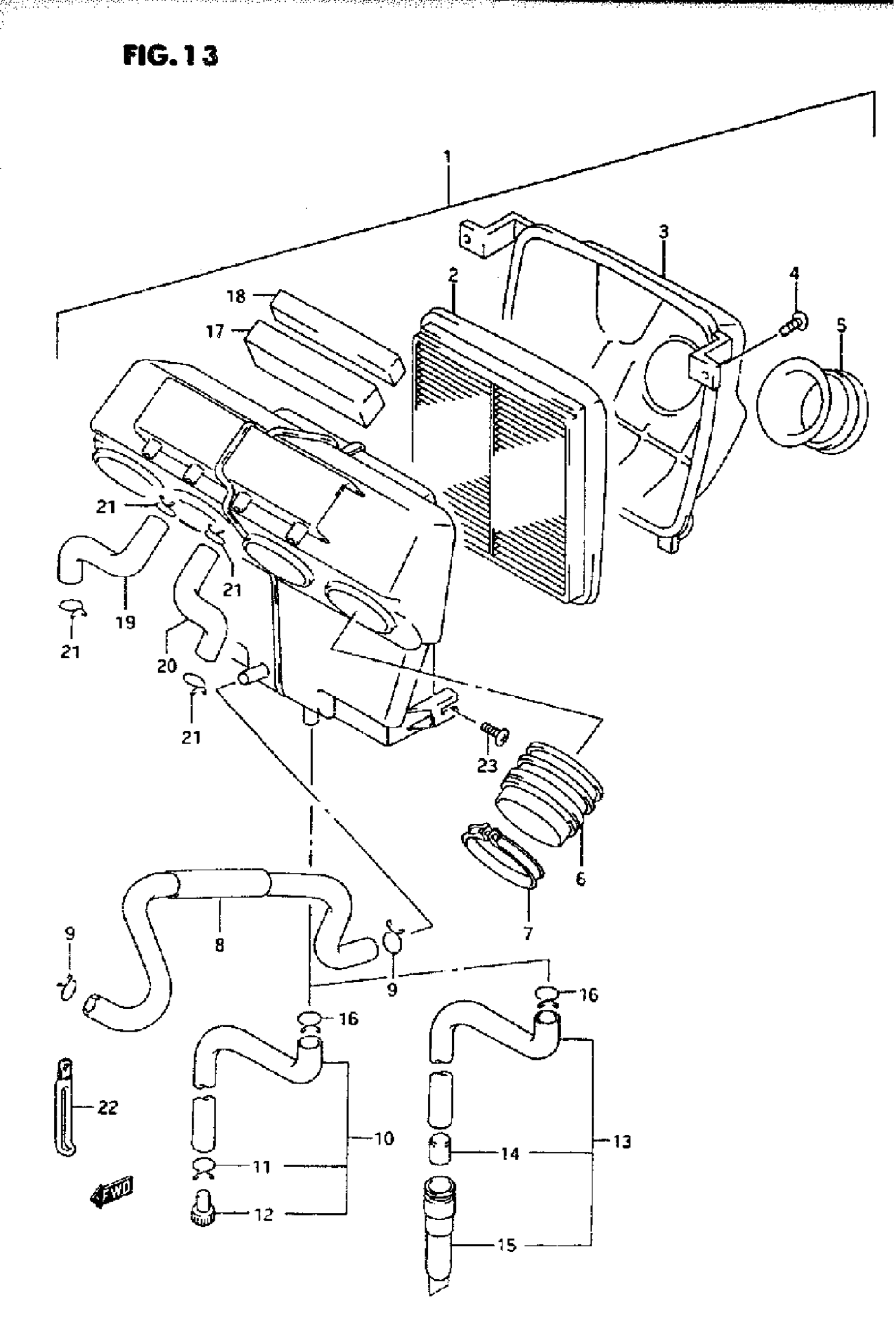

Suzuki RF600R (1995) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL R This part replaces 13700-21E00.

13700-21E03

Unavailable

1

CLEANER ASSY, AIR | MODEL S This part replaces 13700-21E02.

13700-21E03

Unavailable

1

CLEANER ASSY, AIR | MODEL T

13700-21E03

Unavailable

2

FILTER, AIR

13780-21E00

Unavailable

3

CAP, AIR CLEANER

13740-21E00

Unavailable

4

SCREW | MODEL R This part replaces 02142-05164.

02142-0516A

$1.49

4

SCREW | MODEL S/T

02142-05167

$1.49

5

TUBE,INLET This part replaces 13891-17E00.

13891-17E01

$27.00

6

TUBE, OUTLET

13881-21E00

Unavailable

7

CLAMP This part replaces 09402-58207.

09402-58208

$5.36

8

TUBE, BREATHER

13850-21E00

Unavailable

9

CLIP | MODEL R This part replaces 13824-48B10.

09401-16401

$3.14

9

CLIP | MODEL S/T

09401-16401

$3.14

10

TUBE,DRAIN | MODEL R This part replaces 13870-21428.

13870-21459

$23.68

11

CLIP | MODEL R This part replaces 13824-18910.

09401-11101

$2.36

12

STOPPER, DRAIN | MODEL R

13877-38A00

$5.98

13

TUBE,DRAIN | MODEL S/T This part replaces 13870-21628.

13870-21629

$22.90

14

FILTER, DRAIN | MODEL S/T

13789-00020

Unavailable

15

CAP, DRAIN | MODEL S/T This part replaces 13872-00A00.

13872-00A00-010

Unavailable

16

CLIP | MODEL R/S This part replaces 13824-00A00.

09401-13409

$2.12

16

CLIP | MODEL T

09401-13409

$2.12

17

FILTER, CARB AIR, NO.1

13783-21E01

Unavailable

18

FILTER, CARB AIR,NO.2 | MODEL R This part replaces 13784-21E00.

13784-21E01

Unavailable

18

FILTER, CARB AIR, NO.2 | MODEL S/T

13784-21E01

Unavailable

19

TUBE, CARB AIR R

13855-21E00

Unavailable

20

TUBE, CARB AIR L

13856-21E00

Unavailable

21

CLIP | MODEL R/S This part replaces 13824-48B10.

09401-16401

$3.14

21

CLIP | MODEL T

09401-16401

$3.14

22

CLAMP(L:80) | MODEL R This part replaces 09404-06426.

09404-06036

$1.74

22

CLAMP(L:80) | MODEL S/T This part replaces 09404-06433.

09404-06036

$1.74

23

SCREW This part replaces 02142-06123.

02142-0612A

$1.49
