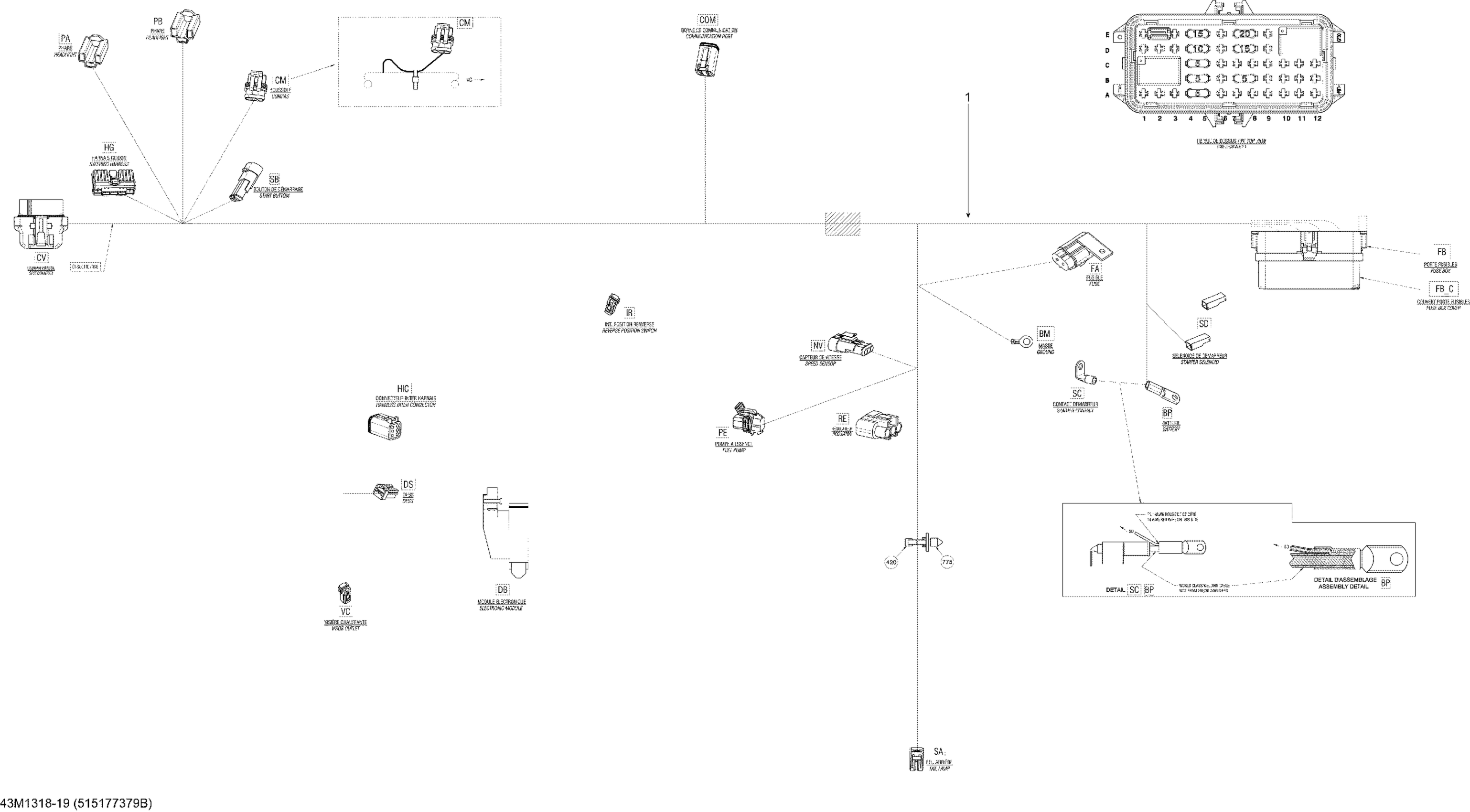

Ski-Doo RENEGADE X & ADRENALINE 1200 XR, 2013 10- Electrical Harness Diagram

#

Description
Price

1

WIRING HARNESS - Call your local BRP dealership | Includes 1 to VC

515177379

Unavailable

420

Tie-Rap 180 mm

414115200

$0.11

775

Mount Dart

293730040

$1.04

BM

Open Barrel

278000992

$2.21

BP

Terminal

515177174

$9.29

CM

Female Housing, 3 Circuits

409209600

$35.99

CM

Female Terminal

710001340

$5.89

CM

Wire Seal

515176621

$7.49

COM

Female Terminal

278000632

$2.09

COM

Sealing Cap

293000052

$3.19

COM

Male Housing, 6 Circuits

515175673

$15.49

COM

Male Wedge, 6 Circuits

515175678

$5.39

CV

Plug

515175812

$2.19

CV

Female Housing, 24 Circuits

515175801

$9.59

CV

Retainer Block

515175802

$11.49

CV

Wire Seal

515175803

$2.99

CV

Female Terminal

515175806

$0.99

CV

Female Housing

710000399

$16.49

CV

Female Terminal

710001131

$8.89

DB

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

DB

SEAL - Call your local BRP dealership

515175886

Unavailable

DB

Latch

515175883

$9.12

DB

LOCK - Call your local BRP dealership

515175884

Unavailable

DB

COVER - Call your local BRP dealership

515175885

Unavailable

DB

FEMALE TERMINAL - Call your local BRP dealership

515177481

Unavailable

DS

Female Terminal

515175231

$4.39

DS

Female Housing, 3 Circuits

515175495

$16.18

FA

Fuse, 30 Amperes

410917200

$3.28

FA

Fuse Holder Cap

278001326

$7.69

FA

Fuse Holder

278001325

$8.79

FA

Female Terminal

710000113

$6.99

FA

Cushion

278000805

$3.28

FB

Wire Seal

278000999

$3.19

FB

Seal

415128501

$1.89

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 20 Amperes

710000746

$8.49

FB

Fuse Box Base Ass´y

415129856

$50.99

FB

Fuse Puller

710000781

$8.09

FB

Cap

710000840

$5.89

FB

Female Terminal

515177009

$5.89

FB

Relay, 30 AMP

515176774

$21.99

FB

Relay, 30 AMP

515176774

$21.99

FB_C

Little Fuse, 5 Amperes

710000742

$8.79

FB_C

Little Fuse, 10 Amperes

710000744

$8.79

FB_C

Little Fuse, 15 Ampere

710000745

$8.49

FB_C

Little Fuse, 20 Amperes

710000746

$8.49

FB_C

Fuse Cover

710001026

$21.99

FB_C

Foam

278002172

$5.89

FB_C

RELAY FUSE DECAL - Call your local BRP dealership

516005571

Unavailable

HG

Female Terminal

515175231

$4.39

HG

Female Terminal

515175282

$7.86

HG

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

HIC

Female Terminal

278000632

$2.09

HIC

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

HIC

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

HIC

Sealing Cap

293000052

$3.19

IR

Female Terminal

515175231

$4.39

IR

Female Housing, 2 Circuits

515175658

$16.18

NV

Housing

710000568

$11.12

NV

Male Terminal

515176164

$7.16

NV

Clip

710000992

$4.29

NV

Wire Seal

515176621

$7.49

PA

Female Housing

515176908

$13.99

PA

Terminal

515176909

$2.21

PB

Female Housing

515176908

$13.99

PB

Terminal

515176909

$2.21

PE

Female Terminal

278001481

$3.49

PE

Seal

278001482

$3.19

PE

Housing

710001132

$9.85

PE

Lock

710001133

$4.39

RE

Female Terminal

710000877

$9.12

RE

Female Housing, 3 Circuits

710000879

$25.99

RE

Seal

710000881

$17.99

RE

Cap

710000882

$11.49

SA

Female Terminal

515175231

$4.39

SA

Female Housing, 3 Circuits

515175495

$16.18

SB

Housing

710000568

$11.12

SB

Male Terminal

515176164

$7.16

SB

Wire Seal

515176621

$7.49

SC

Open Barell | Model-XT

710000506

$6.11

SC

Protector Cap | XT

515175919

$17.99

SD

Female Terminal

409010100

$5.61

SD

Female Terminal Housing, 1 Circuit

409010400

$7.62

VC

Female Terminal

515175231

$4.39

VC

Female Housing, 2 Circuits

515175658

$16.18
