Description

Price

2

Hair Pin

114045200

$11.11

4

Socket Screw M5 X 25

205052544

$1.68

5

Elastic Stop Nut M5

232551414

$0.87

6

Flat Washer M5

234051410

$0.53

7

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

8

Torx Screw M5 X 14

250000742

$1.47

9

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

10

Torx Screw M6 X 30

250000580

$6.08

11

Spring Washer 14 mm

250200006

$6.99

12

Lock Washer 8 mm

250200009

$2.11

13

Spring Pin M3 X 18

250400061

$2.11

14

Pop Rivet 3/16"

293150103

$0.55

17

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

18

O-Ring

293300185

$0.98

21

Circlip

293370037

$3.19

22

Circlip

293370049

$4.99

23

Circlip

293370065

$0.98

25

Avex Rivet

390909200

$0.30

28

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

31

Pulley Roller

417127016

$24.49

32

Cam Ass'y | Includes 100c to 100c2

417127327

$159.49

34

Washer

417127155

$8.26

38

Calibration Ass'y

415129604

$21.49

40

Fix Flange Ass'y | Includes 101 to 101e

417127362

$1.00

42

Pivot Stud

417127294

$14.49

44

Release Spring

417127344

$45.49

46

Roller Axle

417223257

$6.99

47

Slider Shoe

417223919

$6.83

50

Fixed Flange Ass'y

417224091

$309.99

51

Spring Cover Ass'y

417223650

$44.99

54

Stopper Washer

417223660

$3.17

55

Rampe 735

417223679

$38.99

56

Drive Pulley Kit Ass'Y This part replaces 417223692.

415130054

$709.99

57

Ramp Axle

417223694

$11.05

58

Clutch Spring

417224084

$17.39

59

Seat Spring

417223752

$15.27

60

Flange Slide Ass'y

417224044

$294.99

62

Roller

417223767

$11.59

63

Governor Cup Ass'y

417223865

$274.99

65

Side Protector

417300356

$14.76

66

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

$14.49

67

BELT GUARD BRACKET - Call your local BRP dealership

417300361

Unavailable

68

Reinforcement

417300380

$7.29

69

Guide

417300381

$11.99

70

Belt Guard

417300382

$90.99

71

Drive Belt

417300551

$179.99

72

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

73

Pulley Drive Bolt

417300432

$41.49

74

Ball Bearing

504152574

$35.99

75

PROTECTOR TUBE 25 MM - 210 MM - Call your local BRP dealership

219702532

Unavailable

76

Decal English

516005503

Unavailable

77

Safety Belt Guard Decal

516005509

Unavailable

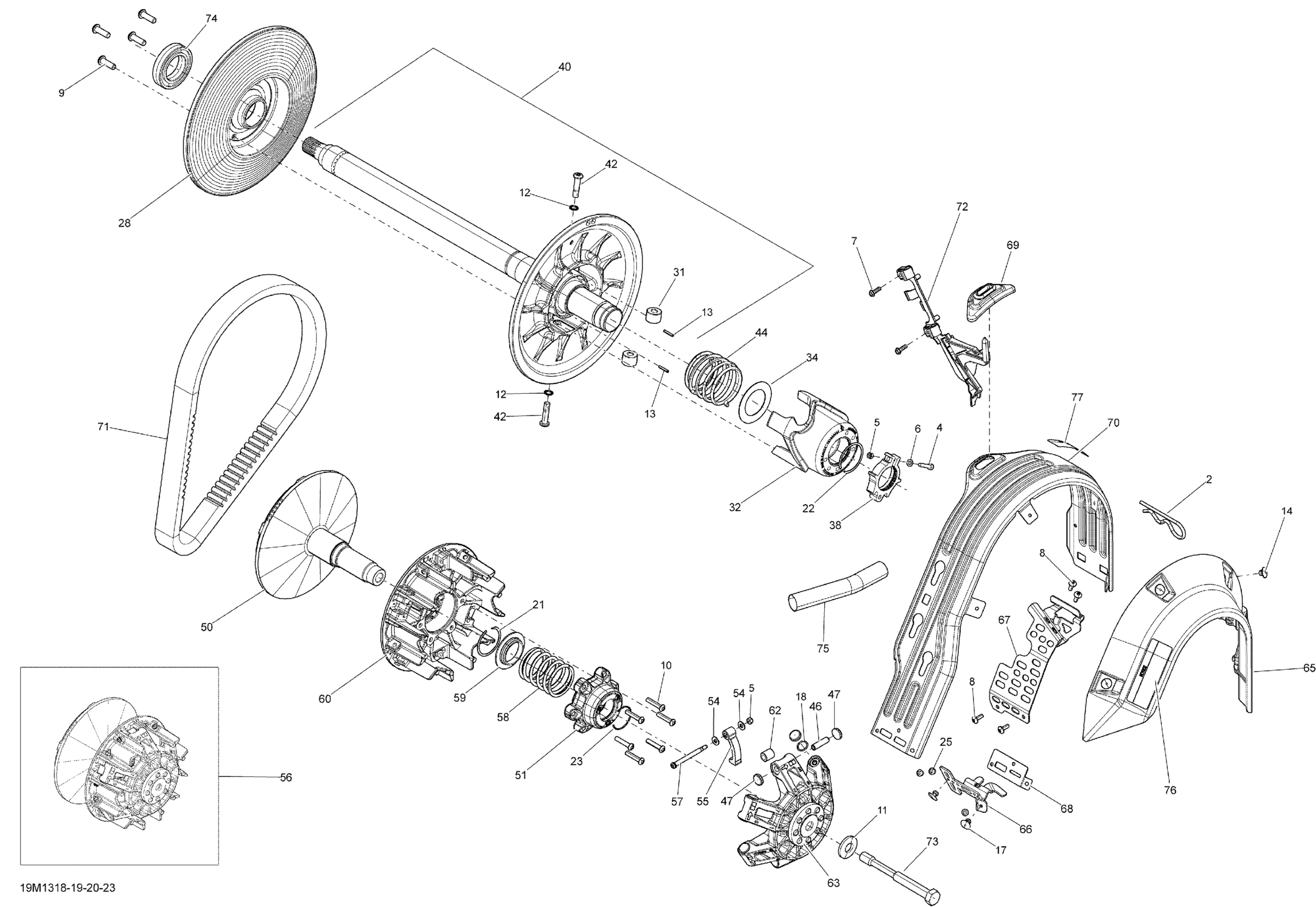

Ski-Doo RENEGADE X & ADRENALINE 1200 XR, 2013 05- Pulley System Diagram
