Description

Price

1

FRAME RENEGADE REV XR 137'' - Call your local BRP dealership | Includes 1 to 37

415129663

Unavailable

2

E MODULE - Call your local BRP dealership

518327485

Unavailable

3

RH Side Member

518326328

$284.99

4

LH Side Member

518326330

$284.99

5

Front Member

518326198

$64.99

6

Stavex Rivet

293150144

$0.82

7

Hemlock Rivet 6.5 mm

293150120

$7.41

8

Hemlock Rivet, 6.5 mm

293150119

$4.29

9

Leg Bushing

505072690

$12.49

11

MAG Engine Support

518325371

$77.49

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Hex. Flange Screw M6 X 20

207662044

$2.00

15

RH Reinforcement

518324874

$27.99

16

LH Reinforcement

518324875

$27.99

17

RH Deflector, Black Polypropylene

518325782

$13.99

18

LH Deflector, Black Polypropylene

518325783

$13.99

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

20

Reinforcement Plate

518326647

$4.69

21

RH Bracket

518328789

$39.99

22

LH Bracket

518328790

$39.99

23

RH Rear Base

518325973

$21.99

24

LH Rear Base | Includes 10v to 10x

518325974

$21.99

25

RH ROLLER - Call your local BRP dealership

518325377

$69.99

26

LH Roller

518325378

$76.99

27

Insert

293450275

$12.99

28

Seal

518326656

$9.19

29

FRONT RADIATOR ASS'Y - Call your local BRP dealership

518326489

Unavailable

31

Rear Radiator Ass'y, 137" | SPORT

518326641

$720.49

32

Stavex Rivet

293150144

$0.82

33

Rear Cap

518327105

$22.49

34

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

35

LH Stirup

518326820

$37.99

36

Panel Nut M5 X 0.8

250000958

$4.23

37

Full Moon Dart 5 mm

293730042

$2.21

12a

Hex. Flange Screw M6 X 20

207662044

$2.00

12b

Hex. Flange Screw M6 X 16

207661644

$0.74

17a

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

35a

U-Attach

518326961

$10.99

35b

Ornit Rivet 6,5 X 14.5

293150266

$2.40

35c

Tork Screw M6 X 16

250000534

$2.11

35d

Tork Screw M6 X 18

250000536

$2.11

35e

Flat Washer

250200039

$0.74

35f

Attach | Includes 10n to 10p

518326986

$12.99

35g

Elastic Stop Nut M6

232561414

$0.55

35h

Torx Screw M8 X 55

250000535

$3.17

35j

Hex. Flange Nut M6

233061414

$1.68

35k

Support

518326960

$12.99

A

Pop Rivet 3/16"

390402300

$0.75

B

Avex Rivet

390909200

$0.30

C

Avex Rivet

390909100

$0.30

D

Stavex Rivet

293150144

$0.82

E

Henrob Rivet

293150146

$2.09

F

Hemlock Rivet, 6.4 mm

293150174

$7.86

G

Interlock Rivet 3/16''

293150194

$1.04

H

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

$69.99

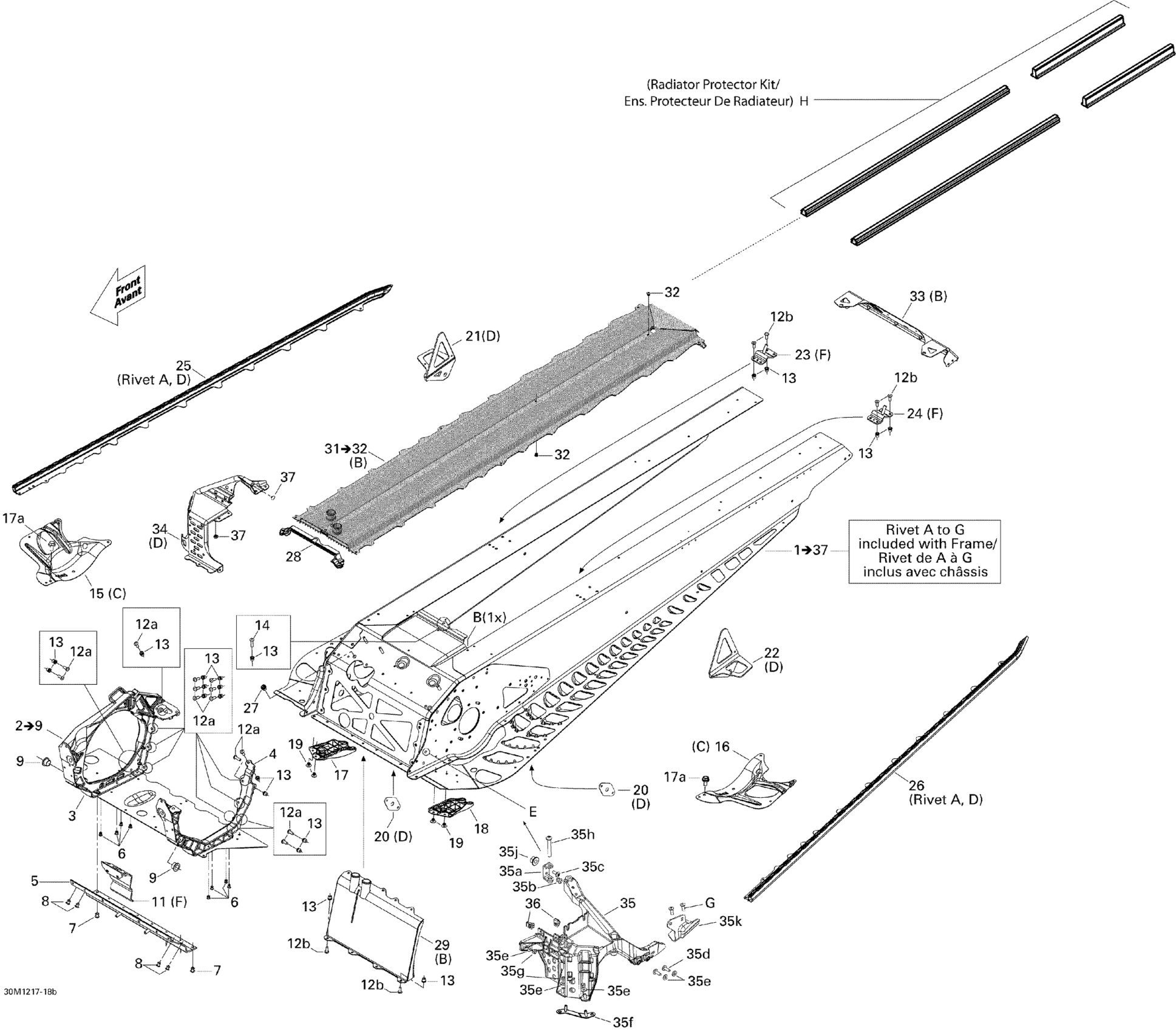

Ski-Doo Renegade X & Adrenaline 1200 XR, 2012 09- Frame Diagram
