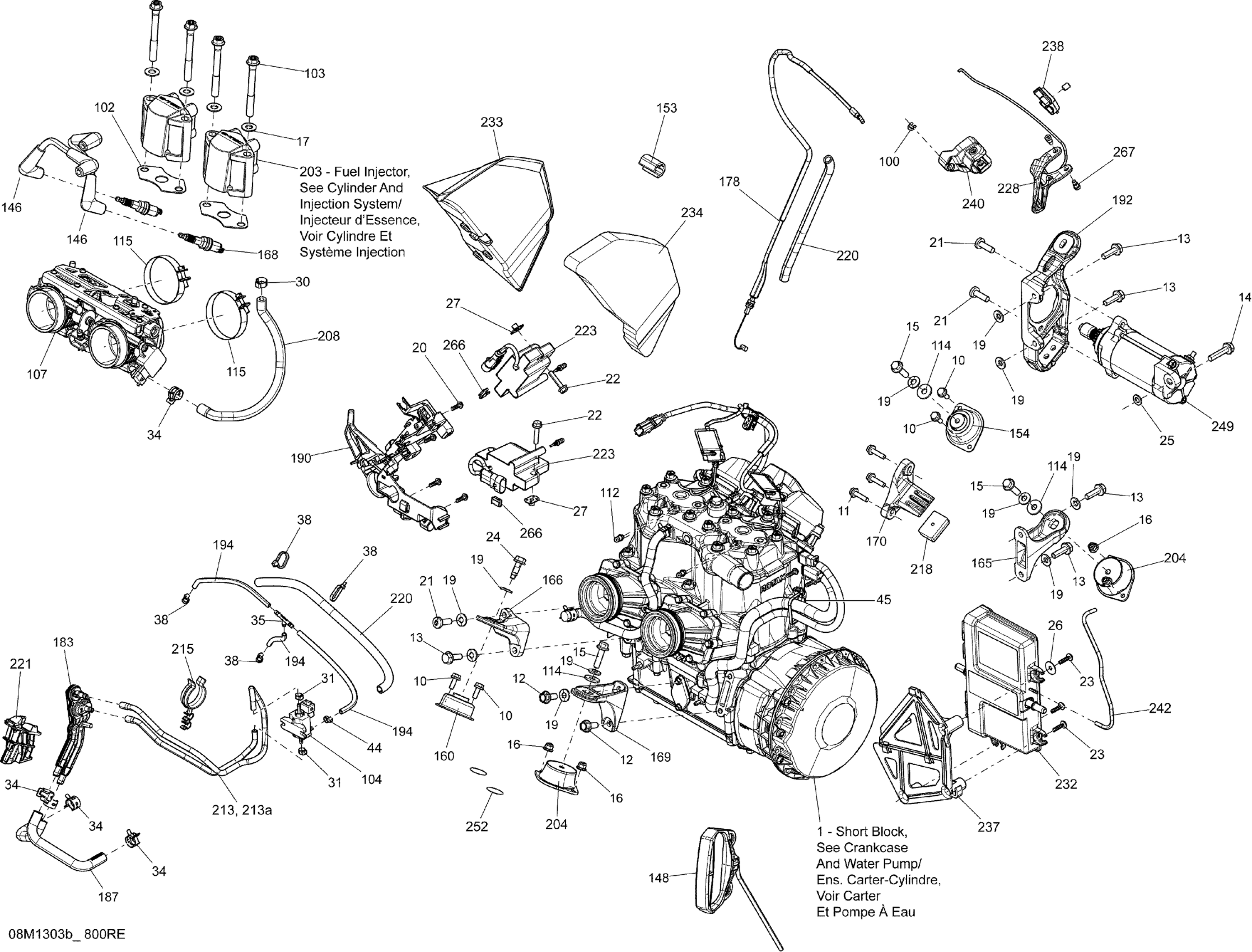

Ski-Doo RENEGADE X 800RE XS, 2013 Engine And Engine Support 800 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

10

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

11

Hex. Flange Screw M6 X 25

207562544

$1.60

12

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

13

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

14

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.15

15

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

17

Flat Washer 10 mm

234001410

$1.12

19

Conical Spring Washer M8

250200146

$0.96

20

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

21

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

21

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

22

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.12

23

Truss Head Torx Screw K50 X 20

250000297

$2.00

24

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.00

25

Flat Washer With Teflon 8 mm

250200008

$3.58

26

Flat Washer

250200040

$1.76

27

Nut Welded, M6

293100003

$7.25

30

Oetiker Clamp

293650046

$2.67

31

Oetiker Gear Clamp

293650043

$3.10

34

Norma Spring Clamp

293650214

$14.90

34

Norma Spring Clamp

293650214

$14.90

35

T-Fitting

293710068

$7.57

38

Tie Wrap 94 mm | 4X4

293750001

$0.96

45

Tie Wrap 368 mm

293750008

$0.97

100

Circlip

414274500

$0.85

102

Gasket

420430930

$4.46

103

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.13

104

Solenoid Valve

270600005

$45.49

107

Throttle Body

420889202

$1,217.13

112

Hose Nipple

420924724

$14.10

114

Yellow, Washer

503183200

$2.91

115

GEMI CLAMP - Call your local BRP dealership | 800RE

508000007

Unavailable

146

Ignition Cable, 177mm long

512061126

$26.84

148

Starter Grip

512060136

$14.10

153

Protector

512060313

$9.03

154

Rubber Mount

512060387

$41.01

160

Rubber Mount

512060448

$41.01

165

Front Support, MAG

512060469

$30.57

166

Rear Support, PTO

512060478

$29.07

168

Spark Plug NGK PFR7AB | 800-TEC This part replaces 512060553.

415129484

$26.84

169

Rear Support, MAG

512060559

$29.07

170

Stopper Support

512060576

$27.58

178

Throttle Cable

512060668

$77.58

183

Manifold

512060692

$41.76

187

RH Formed Hose

512060694

$7.57

187

LH Formed Hose

512060695

$7.57

190

Ignition Coils Support

512060888

$10.21

192

Front Support, PTO

512060714

$82.81

194

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

203

Fuel Injector | Includes 13 to 16

512061054

$330.57

204

Rubber Mount

512060729

$67.88

208

Bleeder's Collector Outlet Hose

512060944

$26.09

213

Polyurethane Hose 10000Mm Long

219704410

$52.96

213a

SPRING - Call your local BRP dealership

512060814

Unavailable

215

HOSE SUPPORT - Call your local BRP dealership

512060762

Unavailable

218

Stopper

512060627

$9.03

220

Was 409901700 Tubing (9 mm)

219704399

$77.58

221

Manifold Support

512060822

$10.21

223

Ignition Coil

512060953

$126.09

228

Handle Ass'y

512061250

$114.15

232

Calibrated Module

512060756

$749.99

233

Noise Shield

512060847

$14.10

234

Inner Acoustic Foam

512060958

$17.88

237

Calibrated Module Support

512060858

$12.15

238

Upper Housing

512060859

$8.13

240

Lower Housing

512060860

$16.39

242

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

249

Starter

515178473

$319.49

252

Adhesive Patch

518325560

$4.21

266

Clip

710000992

$3.88

267

Flange Screw

732601143

$3.90
