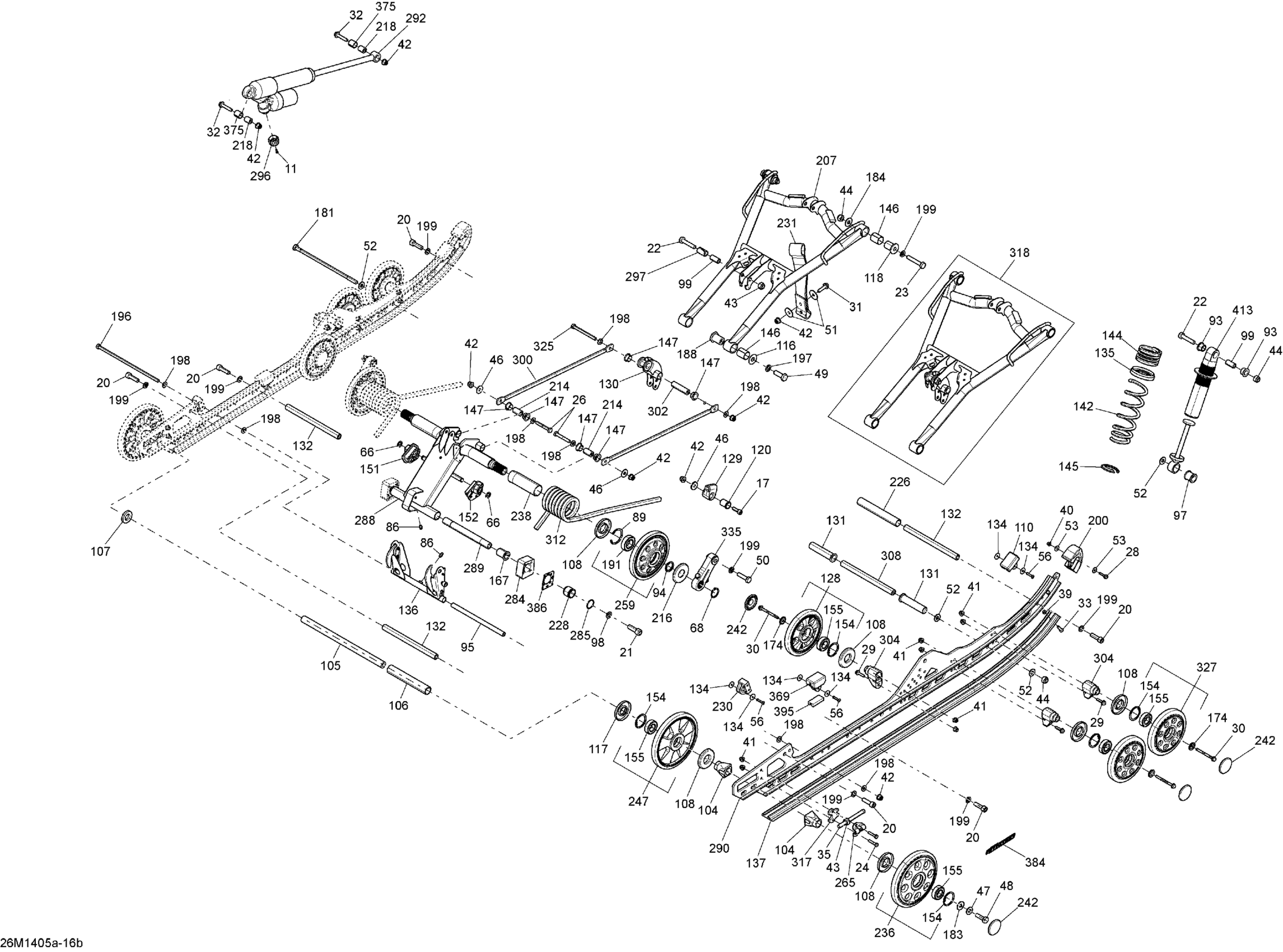

Ski-Doo RENEGADE X 600HOE XS, 2014 Rear Suspension Diagram

#

Description
Price

11

Allen Screw M3 X 0.5 X 10

250000644

$2.00

17

Socket Screw M8 X 25

205082554

$2.00

20

Socket Head Screw M10 X 35

205503554

$7.09

21

Socket Head Screw M12 X 35

205523554

$4.15

22

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

23

Hex. Cap Screw M10 X 60

207006056

$7.09

24

Hex. Cap Screw M6 X 30

207063054

$5.06

26

Hex. Screw M8 X 55

207085544

$1.57

28

Hex. Flange Screw M5 X 25

207652544

$0.48

29

Hex. Flange Screw M6 X 25

207662556

$4.15

30

Hex. Flange Screw M6 X 70

207667056

$4.15

31

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

32

Hex. Flange Screw M8 X 40

207684044

$1.43

33

Phillips Screw M6 X 25

208562531

$2.00

33

Phillips Screw M6 X 25

208562531

$2.00

35

Hex Screw M10 x 100

230100054

$6.07

39

Elastic Stop Nut M6

232561414

$1.78

39

Elastic Stop Nut M6

232561414

$1.78

40

Hex. Flange Elastic Nut M5

233251414

$1.91

41

Hex. Flange Elastic Nut M6

233261466

$1.91

42

Elastic Flange Nut M8

233281466

$0.96

43

Elastic Locking Nut M10 X 1.5

233601416

$1.63

44

Elastic Locking Nut M10

233601466

$2.00

46

Flat Washer 8 mm

234082410

$1.27

47

Conical Spring Washer M10

250200141

$2.00

48

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.15

49

Hex. Cap Screw M12 X 35

250000537

$3.01

50

Cap Screw Hex. M10 X 40

207204056

$7.09

51

Flat Washer 8 mm

250200128

$2.00

52

Washer

250200138

$2.00

53

Washer

250200140

$0.96

56

Pop Rivet 3/16"

293150013

$1.27

66

E-Circlip

293370013

$0.60

68

Retaining Ring

293370080

$2.06

86

Grease Fitting

408200700

$3.21

89

Retaining Ring

415129780

$13.46

93

Urethane Bushing

503189117

$6.67

94

Axle Spring

503189146

$7.31

95

Pivot Arm Axle

503189156

$20.12

97

Bushing

503189271

$10.15

98

Washer

503189276

$3.10

99

Bushing | Includes 240d to 240d1

503189282

$4.06

104

Rear Wheel Spacer

503190428

$5.88

105

Rear Axle

503190429

$58.18

106

Spacer

503196317

$14.90

107

Washer

503190432

$12.15

108

Labyrinth Seal

503190434

$4.16

110

Rubber Stopper

503190576

$9.93

116

Washer

503190656

$2.82

117

Labyrinth Seal

503190682

$5.67

118

Axle

503190698

$17.13

120

Spring Support Kit

861805547

$7.90

128

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

129

Spring Support Kit

861805547

$7.90

130

Rocker

503192531

$76.09

131

Center Bushing

503191259

$8.70

132

Axle Strap

503191260

$28.33

134

Washer

503191273

$1.03

135

Spring Spacer

503191281

$7.43

136

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$114.90

137

Black, Slider Shoe 137''

503191306

$26.84

142

Black Spring (51mm) Short

503193480

$85.79

144

Black, Spring (189mm) Long

503193067

$85.79

145

Spring Stopper

503194270

$16.39

146

Bushing

503191554

$5.70

147

Swivel Bushing

503191555

$5.54

151

LH Cam Adjuster

503191565

$13.54

152

RH Cam Adjuster

503191566

$13.54

154

Retaining Ring

415129371

$8.66

155

Ball Bearing | Package-STD

503190396

$8.18

167

Cushion

503191640

$5.54

174

Wheel Cup M6

503191820

$4.52

181

BOLT M10 X 251MM - Call your local BRP dealership

503191896

$14.30

183

Washer

503191910

$2.18

184

Washer

503191926

$1.52

188

Lower Axle

503191966

$14.90

191

Ball Bearing

503193548

$16.39

196

Bolt M8 X 248mm

503192440

$29.07

197

Washer

503192491

$4.25

198

Washer

503192494

$3.01

199

Washer

503192496

$0.73

200

Slide Protector

503192530

$16.39

207

Front Arm Ass'y | Included 2000 to 2000g

503194529

$429.82

214

Axle Bar

503192555

$11.06

216

Labyrinth Ring

503192592

$4.52

218

Axle Shock Absorber

503196509

$9.69

226

Spacer

503196943

$7.36

228

Guide Block

503192749

$5.67

230

Rubber Stopper

503192750

$12.27

231

Stopper Strap

503192759

$24.60

236

Black, Wheel Ass'y 180 mm | Included 600 to 600b

503192766

$48.48

238

Bushing

503192767

$14.81

242

Black, Wheel Cap

503192771

$2.21

247

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$48.48

259

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$44.75

265

Tensioner

503192583

$5.67

284

LH Cam Block

503192918

$12.27

284

RH Cam Block

503192919

$12.27

285

O-Ring

503192921

$2.18

288

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$258.18

289

Lower Shaft

503192981

$17.13

290

Black, Runner 137"

503193552

$272.36

290

Can-Am Red, Runner 137" | Includes 10a to 10a1

503193554

$272.36

292

Rear Shock Ass'y | Includes 5500 to 5500,007

503193031

$877.49

292

Rear Shock Ass'y | Europe Models

503193800

$877.49

296

Shock Adjuster Knob

503193033

$7.36

297

Bushing

503193037

$14.90

300

Link Rod

503193005

$26.09

302

Axle Bar (Long)

503190643

$14.90

304

Casted Support

503193894

$12.37

308

Pivot Axle

503193435

$37.28

312

Black, LH Spring Square

503193158

$75.34

312

Black, RH Spring Square

503193159

$75.34

317

Spacer

503193250

$13.54

318

Front Arm Ass'y | Included 2000 to 2000g

503194529

$429.82

325

Screw M8 X 90

503193372

$4.15

327

Black, Wheel Ass'y 147 mm | Included 440 to 440b

503193376

$44.75

335

Link Ass'y | Includes 3100 to 3100f

503195985

$75.34

369

Rubber Stopper Ass'y

503195523

$5.09

375

Leg Cushion

505072663

$7.18

384

Runner Decal

516004755

$8.84

386

LH Block Sticker Decal

516004900

$15.64

386

RH Block Sticker Decal

516004901

$15.64

395

Reinforcement Stopper

572084800

$5.09

413

Central Shock

503193283

$403.70

292a

O-Ring

415093804

$4.25

292b

O-Ring

505070400

$4.25

292c

Screw | Not Shown

505070399

$3.88

292d

Air Valve

505070398

$17.13

292e

Piston Ring | Not Shown

415093806

$14.52

292f

O-Ring

415093807

$33.55
