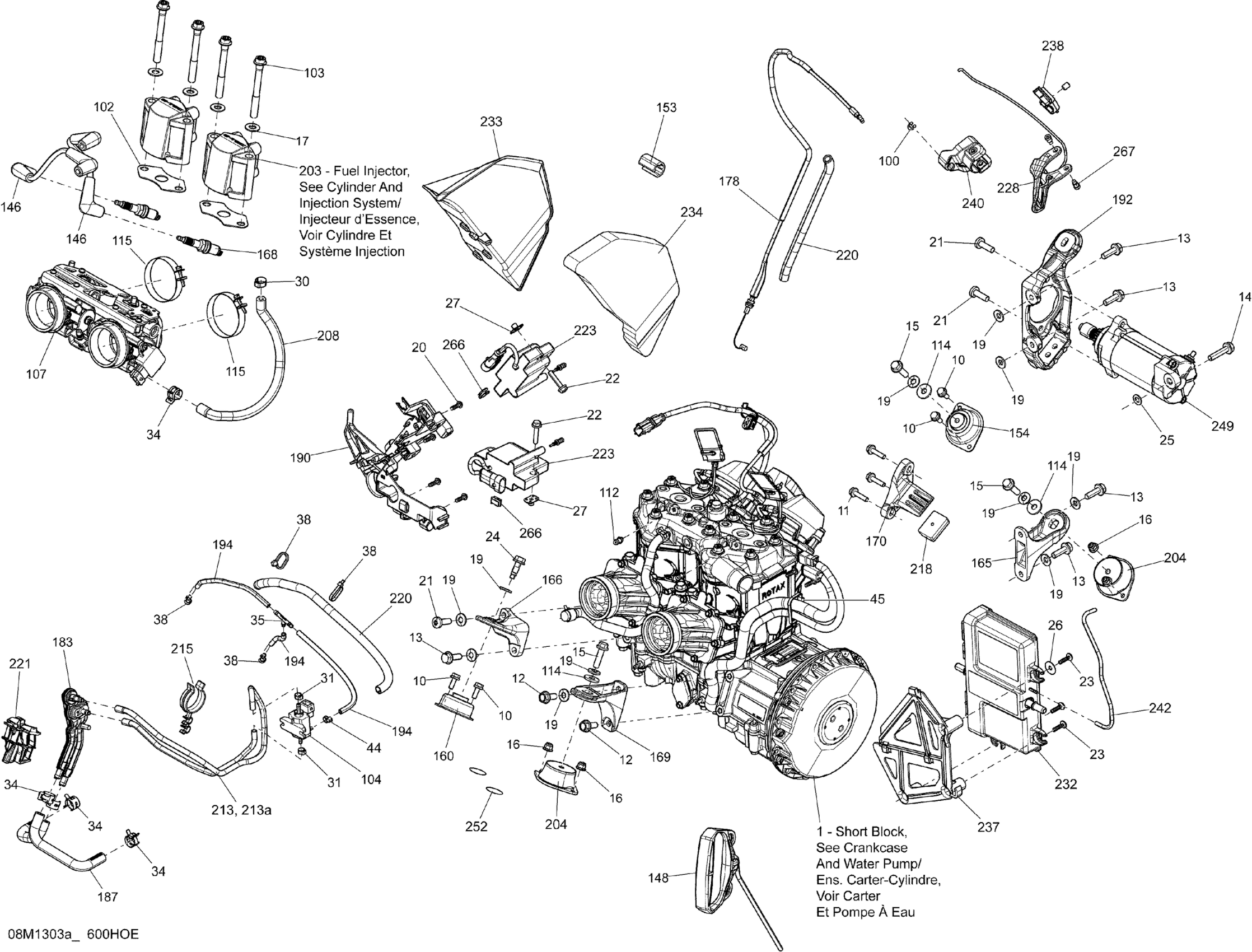

Ski-Doo RENEGADE X 600HOE, 2013 Engine And Engine Support 600 Diagram

Not Available As Spare Part - Friction Washer

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Hex. Flange Screw M6 X 25

207562544

$1.39

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.15

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flat Washer 10 mm

234001410

$0.98

Conical Spring Washer M8

250200146

$0.83

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.12

Truss Head Torx Screw K50 X 20

250000297

$2.00

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

Flat Washer With Teflon 8 mm

250200008

$3.12

Flat Washer

250200040

$1.76

Nut Welded, M6

293100003

$6.32

Oetiker Clamp

293650046

$2.33

Oetiker Gear Clamp

293650043

$2.70

Norma Spring Clamp

293650214

$14.90

Norma Spring Clamp

293650214

$14.90

T-Fitting

293710068

$6.59

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 368 mm

293750008

$0.85

Circlip

414274500

$0.74

Gasket

420430930

$4.46

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.13

Solenoid Valve

270600005

$45.49

Throttle Body

420889201

$1,191.76

Hose Nipple

420924724

$12.29

Yellow, Washer

503183200

$2.91

Gemi Clamp

293650158

$8.09

Ignition Cable, 177mm long

512061126

$26.84

Starter Grip

512060136

$14.10

Protector

512060313

$9.03

Rubber Mount

512060387

$41.01

Rubber Mount

512060448

$41.01

Front Support, MAG

512060469

$30.57

Rear Support, PTO

512060478

$29.07

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$23.37

Rear Support, MAG

512060559

$29.07

Stopper Support

512060576

$27.58

Throttle Cable

512060668

$77.58

Manifold

512060692

$41.76

RH Formed Hose

512060694

$7.57

LH Formed Hose

512060695

$7.57

Ignition Coils Support

512060888

$10.21

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$330.57

Rubber Mount

512060729

$67.88

Bleeder's Collector Outlet Hose

512060944

$26.09

Polyurethane Hose 10000Mm Long

219704410

$46.12

SPRING - Call your local BRP dealership

512060814

Unavailable

HOSE SUPPORT - Call your local BRP dealership

512060762

Unavailable

Stopper

512060627

$9.03

Was 409901700 Tubing (9 mm)

219704399

$77.58

Manifold Support

512060769

$10.21

Ignition Coil

512060953

$126.09

Handle Ass'y

512061250

$114.15

Calibrated Module

512060780

$749.99

Noise Shield

512060847

$14.10

Inner Acoustic Foam

512060958

$17.88

Calibrated Module Support

512060858

$12.15

Upper Housing

512060859

$8.13

Lower Housing

512060860

$16.39

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

Washer

515176500

$10.51

Starter

515178473

$319.49

Adhesive Patch

518325560

$4.21

Clip

710000992

$3.88

Flange Screw

732601143

$3.90
