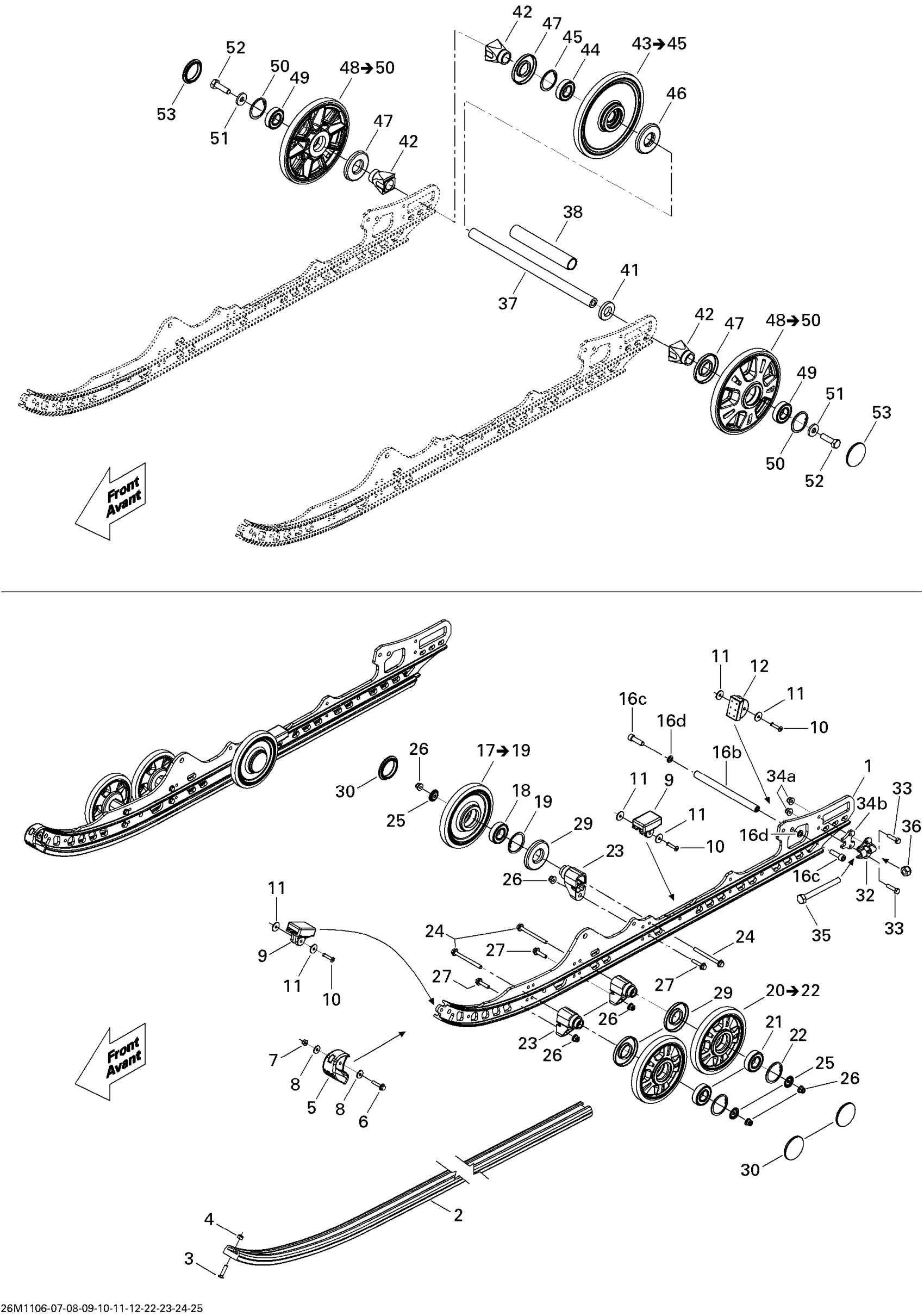

Ski-Doo Renegade X 600HO ETEC, 2011 08- Rear Suspension Diagram

#

Description
Price

1

RAIL_SUSPENSION 137 - Call your local BRP dealership

503192318

Unavailable

1

RUNNER 137'', RED - Call your local BRP dealership | Black-White Model

503192478

Unavailable

2

Black, Slider Shoe 137''

503191306

$29.49

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$12.99

10

Pop Rivet 3/16"

293150142

$2.29

11

Washer

503191273

$1.35

12

Rubber Stopper

503191291

$19.99

16b

Axle Strap

503191260

$30.99

16c

SOCKET SCREW M10 X 35 - Call your local BRP dealership

250000478

Unavailable

16d

Washer

503192496

$0.77

17

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

18

Ball Bearing | Package-STD

503190396

$14.30

19

Retaining Ring

415129371

$12.01

20

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

21

Ball Bearing | Package-STD

503190396

$14.30

22

Retaining Ring

415129371

$12.01

23

Casted Support

503193894

$16.49

24

Hex. Flange Screw M6 X 70

250001027

$2.11

25

Wheel Cup M6

503191820

$4.99

26

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

27

Hex. Flange Screw M6 X 25

207662556

$4.44

29

Labyrinth Seal

503190434

$6.09

30

Wheel Cap

570063600

$3.49

32

Tensioner

503192583

$8.29

33

Hex Cap Screw DIN.931

250000480

$6.39

34a

Elastic Flange Nut M6 X 1.0

233261416

$2.11

34b

Spacer

503193250

$16.49

35

HEX. SCREW CAP FULL THREAD M10 X 100 - Call your local BRP dealership

250000481

Unavailable

36

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

37

Rear Axle

503190429

$59.99

38

Spacer

503196317

$18.49

41

Washer

503190432

$14.22

42

Rear Wheel Spacer

503190428

$8.14

43

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

44

Ball Bearing | Package-STD

503190396

$14.30

45

Retaining Ring

415129371

$12.01

46

Labyrinth Seal

503190682

$6.19

47

Labyrinth Seal

503190434

$6.09

48

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$51.99

49

Ball Bearing | Package-STD

503190396

$14.30

50

Retaining Ring

415129371

$12.01

51

Washer

503190439

$5.93

52

Hex. Screw With Nylon

250000019

$1.69

53

Wheel Cap

570063600

$3.49
