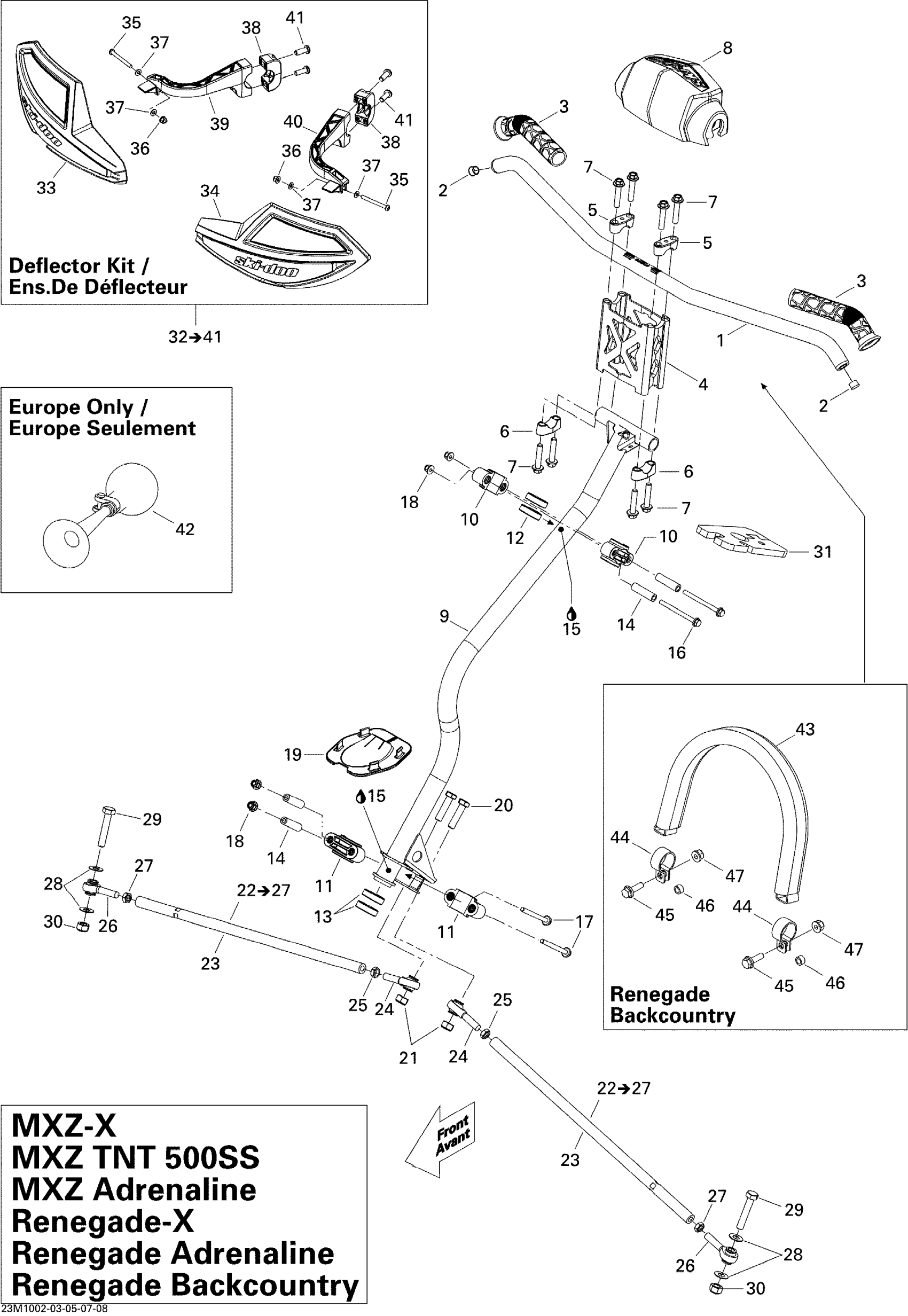

Ski-Doo Renegade X 600HO ETEC, 2010 07- Steering Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$83.49

2

Cap

572051500

$5.89

3

Grip

506152486

$16.34

4

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

$67.99

5

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Steering Support | Includes 40 to 40a

506152751

$13.99

7

Hex. Flange Screw M8 X 40

250000352

$3.38

8

Steering Pad

506152192

$58.99

9

Steering Column

506152964

$199.99

10

Upper Half Housing

506152219

$1.79

11

Lower Half-Housing

506152217

$7.62

12

Upper Vibration Ring

506152292

$0.74

13

Lower Vibration Ring

506152518

$4.79

14

Housing Bushing

506152297

$12.99

15

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

16

Hex. Flange Screw M6 X 70

207667056

$4.44

17

Hex. Flange Screw M6 X 70

207667044

$0.85

18

Elastic Flange Nut M6 X 1.0

233261416

$2.11

19

Plate

506152163

$12.99

20

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

21

Elastic Stop Nut M10

232500416

$1.90

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Tie-Rod Ass'y

506152496

$62.49

24

LH Thread Ball Joint

506152081

$41.49

25

LH Threaded Hex. Jam Nut M10

250100016

$0.74

26

RH Threaded Ball Joint

506152019

$41.49

27

RH Threaded Hex. Jam Nut M10

732610010

$0.74

28

Washer

506152194

$4.55

29

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

30

Elastic Stop Nut M10

232500416

$1.90

31

Bushing

506152521

$15.79

32

Yellow Wind Deflector Kit

860200710

$95.99

32

Not Available As Spare Part - Friction Washer

Unavailable

33

RH DEFLECTOR - Call your local BRP dealership | Black/Black Model

517303623

Unavailable

33

RH DEFLECTOR - Call your local BRP dealership | White/White Model

517303838

Unavailable

34

DEFLECTOR_AIR HAND LH B-190 - Call your local BRP dealership | Black/Black Model

517303624

Unavailable

34

LH DEFLECTOR - Call your local BRP dealership

517303839

Unavailable

35

Socket Head Screw M4 X 40 | X

205444086

$1.69

36

Elastic Stop Nut M4

232541484

$0.74

37

Flat Washer 4 mm

234041480

$0.74

38

U-Clamp | XT

517303264

$11.99

39

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

40

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

41

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable
