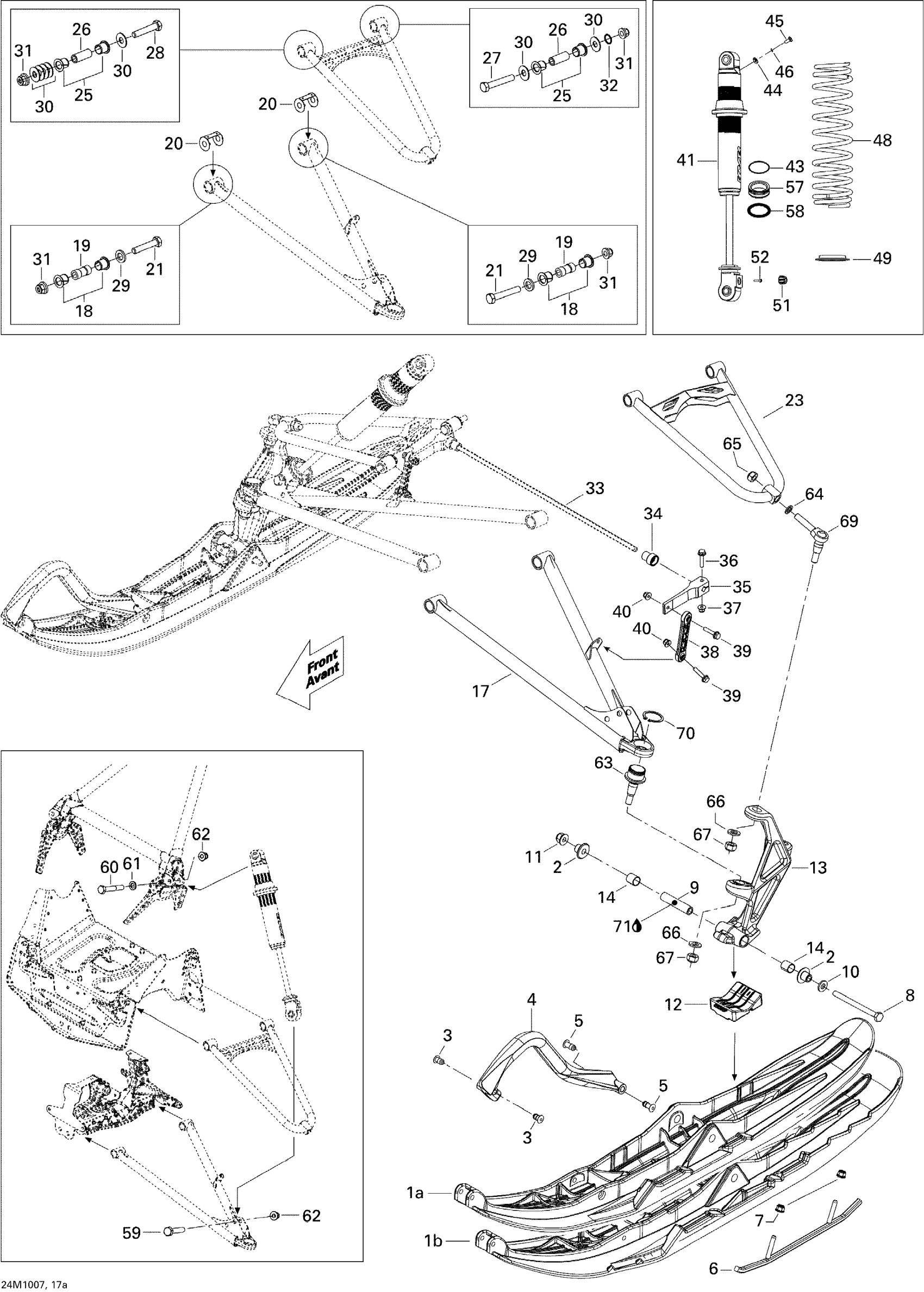

Ski-Doo Renegade X 600HO ETEC, 2010 Front Suspension And Ski Diagram

#

Description
Price

1a

Deep Black, RH Pilot 5.7 Ski

505072855

$160.74

1a

Deep Black, LH Pilot 5.7 Ski

505072854

$175.35

1b

Black Pilot Ski Ass'y 6.9 RH

505073056

$175.35

1b

Black Pilot Ski Ass'y 6.9 LH

505073055

$175.35

2

Ski Bushing

505071781

$15.35

3

Retainer 17mm long

505071812

$4.43

4

Black, Handle

505070963

$35.35

4

Viper Red Handle

505071059

$36.89

5

Retainer 23mm Long

505072133

$5.03

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

9

Spacer

506133300

$19.97

10

Washer

732900049

$0.57

11

Hex. Flange Elastic Nut M10

233201414

$1.26

12

Ski Stopper

505071779

$16.12

13

Clear, LH Ski Leg

505073007

$233.05

13

Clear, RH Ski Leg

505073008

$226.89

14

Leg Bushing

505072690

Unavailable

17

Black, RH Lower Arm

505072664

$193.82

17

Black, LH Lower Arm

505072665

$193.82

18

Bushing

505072208

$3.14

19

Bushing

505072214

$15.26

20

Wear Plate

505072634

$4.45

21

Screw Hex. M10 X 70

250001024

$1.74

23

Upper Arm | SE White/White Models

505072374

$143.05

25

Bushing

505072250

$3.14

26

Sleeve

505072143

$8.62

27

Screw Hex. M10 X 60

250001023

$1.74

28

Screw Hex. M10 X 50

250001022

$1.42

29

Washer

503189564

$0.72

30

Washer

505072392

$4.65

31

Hex. Flange Elastic Nut M10

250100165

$0.70

32

O-Ring

505072448

Unavailable

33

Stabilisator

505072602

$71.99

34

Bushing

505072064

$2.22

35

Stabilisator Lever

505072394

$16.12

36

Hex. Flange Screw M6 X 30

207663046

$1.42

37

Elastic Flange Nut M6 X 1.0

233261416

$1.74

38

Sway Bar Double Joint Link

505072204

$19.20

39

Hex. Flange Screw M6 X 30

207663046

$1.42

40

Elastic Flange Nut M6 X 1.0

233261416

$1.74

41

FRONT SHOCK - Call your local BRP dealership | X

505072752

Unavailable

43

Piston Ring

503189308

$77.66

44

Air Valve

505070398

$17.66

45

Screw | Not Shown

505070399

$4.00

46

O-Ring

505070400

$4.38

48

Deep Black, Spring

505072741

$66.89

49

Spring Stopper

503194270

$16.89

51

Adjustment Knob

505072753

$2.08

52

Allen Screw M3 X 0.5 X 10

250000644

$1.74

57

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

58

O-Ring

414888312

$16.12

59

Hex. Screw M10 X 55

207005544

$1.85

60

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

61

Washer

503189564

$0.72

62

Hex. Flange Elastic Nut M10

233201414

$1.26

63

Ball Joint

505073636

$49.97

64

Washer

503189276

$3.20

65

Hex. Elastic Hex. Nut M12

250100089

$0.39

66

Flat Washer 12 mm

234021410

$0.68

67

Hex. Elastic Hex. Nut M12

250100089

$0.39

69

Upper Ball Joint

505072257

$16.89

70

Circlip

293370035

$2.55

71

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
