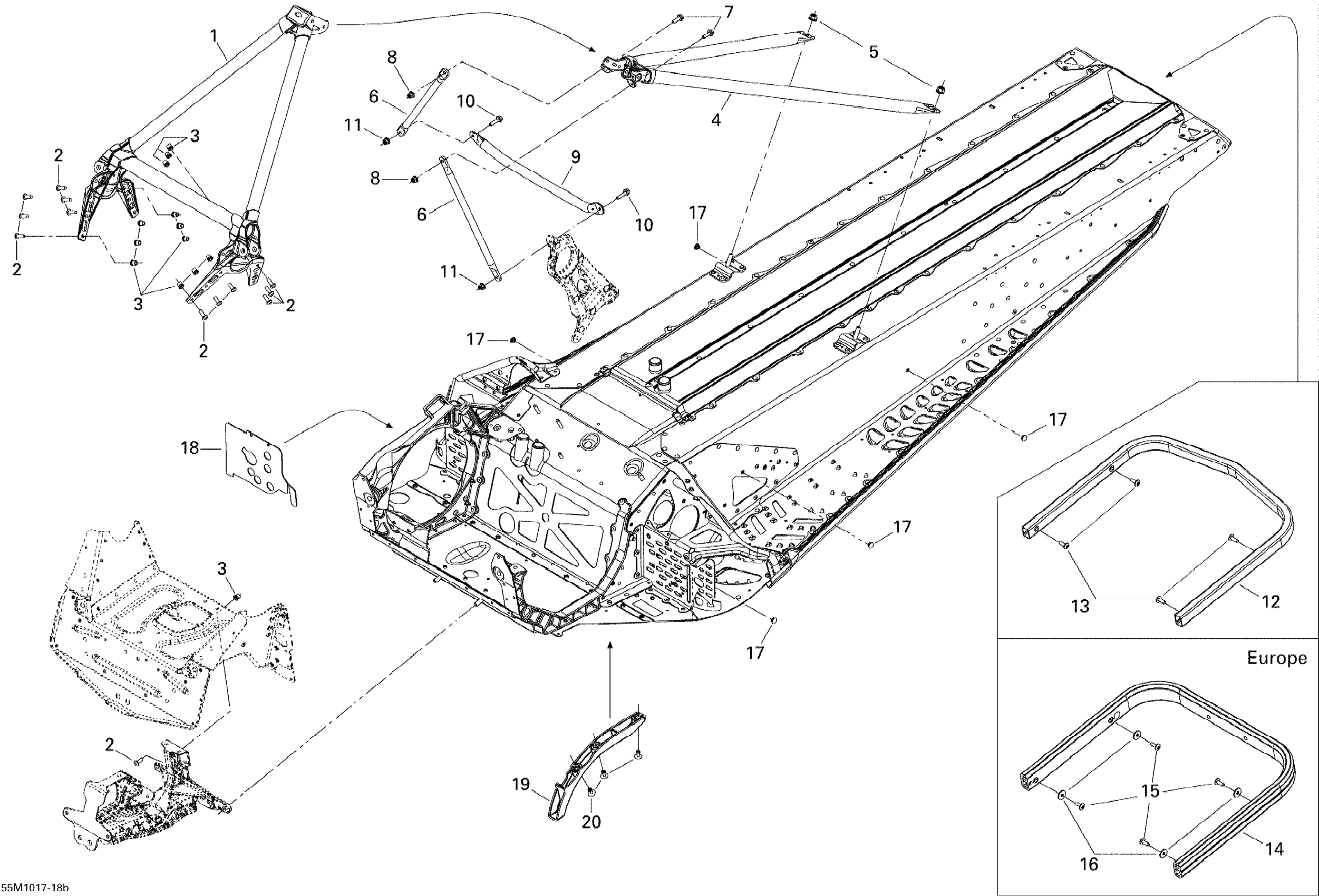

Ski-Doo Renegade X 1200, 2010 09- Frame and Components X Diagram

Front Member

518326970

$299.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Rear Member

518326559

$264.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Lateral Column Support

518325114

$22.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Center Column Support

518326657

$19.99

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Clear Rear Bumper

518324980

$99.49

Black Rear Bumper 137"

518325481

$148.99

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Black Rear Bumper | Europe Models

518326414

$111.99

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Full Moon Dart 8 mm

293730041

$2.21

Black, Dart 8 mm

293730047

$2.21

HEAT SHIELD - Call your local BRP dealership

518325418

Unavailable

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

Pop Rivet 3/16”

293150108

$1.19
