10- Electrical System

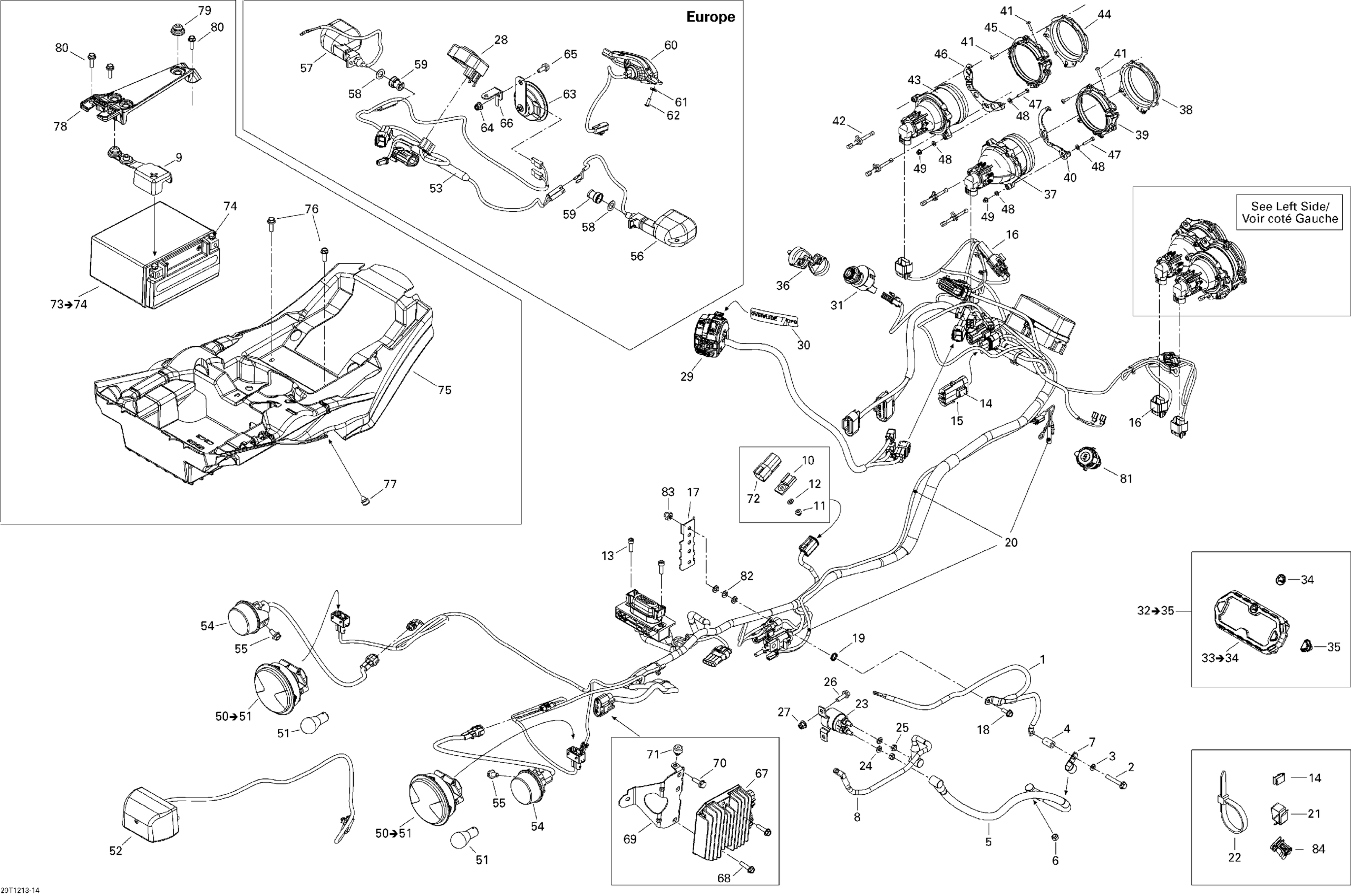

Can-Am Renegade STD, XXC, 800R EFI, 2012 10- Electrical System Diagram
#
1
Ground Cable
710004382
Unavailable
2
Hex. Flange Screw M6 X 40, Scotch Grip
207564044
Unavailable
3
Lock Washer Helical M6
234161601
Unavailable
4
Spacer
517203200
Unavailable
5
POSITIVE CABLE - Call your local BRP dealership
710001750
Unavailable
6
Elastic Stop Nut M6
232561414
Unavailable
7
Open Clamp
518321570
Unavailable
8
Positive Cable
710004376
Unavailable
9
Battery Cable Cap
710006729
Unavailable
10
Clip
270000141
Unavailable
11
Pop Rivet 3/16"
390402300
Unavailable
12
Washer | DS 650 X
391301600
Unavailable
13
Socket Head Screw M6 X 20, Scotch Grip
205562044
Unavailable
14
Clip
710000992
Unavailable
15
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
16
Light Harness
710005944
Unavailable
17
BRACKET - Call your local BRP dealership
710002567
Unavailable
18
Hex. Flange Screw M6 X 16
210261650
Unavailable
19
External Serrated Lock Washer 6 mm
234461608
Unavailable
20
Brake Harness | Includes 1 to FRV2
710004324
Unavailable
21
Clip
414227300
Unavailable
22
Tie-Rap 180 mm
414115200
Unavailable
22
Tie Wrap 368 mm
293750008
Unavailable
22
Tie Wrap 94 mm | 4X4
293750001
Unavailable
22
Tie-rap 627 mm
293750041
Unavailable
23
Starter Relay
710007777
Unavailable
24
Lock Washer Helical M6
234161601
Unavailable
25
Elastic Stop Nut M6
232561414
Unavailable
26
Hex. Flange Screw M6 X 20
207662084
Unavailable
27
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
28
Flasher Unit
710003239
Unavailable
29
Multi-Function Handle
710004040
Unavailable
29
Switch Kit | XT, XTP, XMR, LTD
703500920
Unavailable
29
Handle Kit | STD
703500919
Unavailable
30
DPS LABEL - Call your local BRP dealership | Europe
704901835
Unavailable
31
Ignition Switch
710008400
Unavailable
32
Calibrated Speedometer | Includes 16 to 17
710003288
Unavailable
33
Trim Ring Ass'y
710001183
Unavailable
34
BRP Logo13 mm
704904615
Unavailable
35
Button
710001473
Unavailable
36
Black, Electronic Key
710000817
Unavailable
36
Grey, Electronic Key
710002183
Unavailable
37
Low Beam Ass'y | Includes 1 to 2
710002524
Unavailable
38
RH Low Front Housing
710001081
Unavailable
39
RH Low Rear Housing
710001082
Unavailable
40
RH Low Light Support
710001094
Unavailable
38
LH Low Front Housing
710001083
Unavailable
39
LH Low Rear Housing
710001084
Unavailable
40
LH Low Light Support
710001037
Unavailable
41
Phillips Screw K40 X 16
250000723
Unavailable
42
Setting Screw
710001147
Unavailable
43
High Beam Ass'y | Includes 11 to 12
710002525
Unavailable
44
RH High Front Housing
710001085
Unavailable
45
RH High Rear Housing
710001086
Unavailable
46
RH High Light Support
710001115
Unavailable
44
LH High Front Housing
710001087
Unavailable
45
LH High Rear Housing
710001088
Unavailable
46
LH High Light Support
710001036
Unavailable
47
Hex. Screw M4 X 25
207142544
Unavailable
48
Flat Washer M5
234051410
Unavailable
49
Elastic Stop Nut M4
232541414
Unavailable
50
Tail Light Ass'y | Includes 32 to 33
710001645
Unavailable
51
Bulb
520000758
Unavailable
52
License Plate Light | Europe
710005563
Unavailable
53
Harness Ass'y | Includes 1 to R1, Europe
710002804
Unavailable
54
Flasher | Europe
710002047
Unavailable
55
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
56
Flasher | Europe Models, Includes 60 To 61
710000547
Unavailable
57
Flasher | Europe Models, Includes 60 To 61
710000546
Unavailable
58
Washer
503175800
Unavailable
59
CAP GUARD - Call your local BRP dealership | Europe Models
710001826
Unavailable
60
Day Light
710001042
Unavailable
61
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
62
PHILLIPS SCREW K40 X 10 - Call your local BRP dealership
241641040
Unavailable
63
Horn
710004791
Unavailable
64
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
65
Hex. Flange Screw M6 X 16
207661644
Unavailable
66
SUPPORT - Call your local BRP dealership
709200284
Unavailable
67
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
67
Voltage Regulator | XT, XTP, LTD
710001191
Unavailable
68
Hex. Flange Forming Screw M6 X 25
210262580
Unavailable
69
Rectifier Support
710002587
Unavailable
70
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
71
Rubber Bumper
293830005
Unavailable
72
Diagnostic Connector
278002704
Unavailable
73
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
74
Battery Bolt Kit
250000282
Unavailable
75
BATTERY SUPPORT - Call your local BRP dealership
710002892
Unavailable
76
Hexagonal Head Screw
210262050
Unavailable
77
Rubber Bumper
293830005
Unavailable
78
Fixation Plate
710002404
Unavailable
79
Stopper Rubber
705014429
Unavailable
80
Hex. Flange Screw M6 X 20
207662084
Unavailable
81
DC Outlet
710001248
Unavailable
82
Flat Washer 6 mm
234062410
Unavailable
83
Domed Nut M6
232361493
Unavailable
84
Mount Dart
293730040
Unavailable
