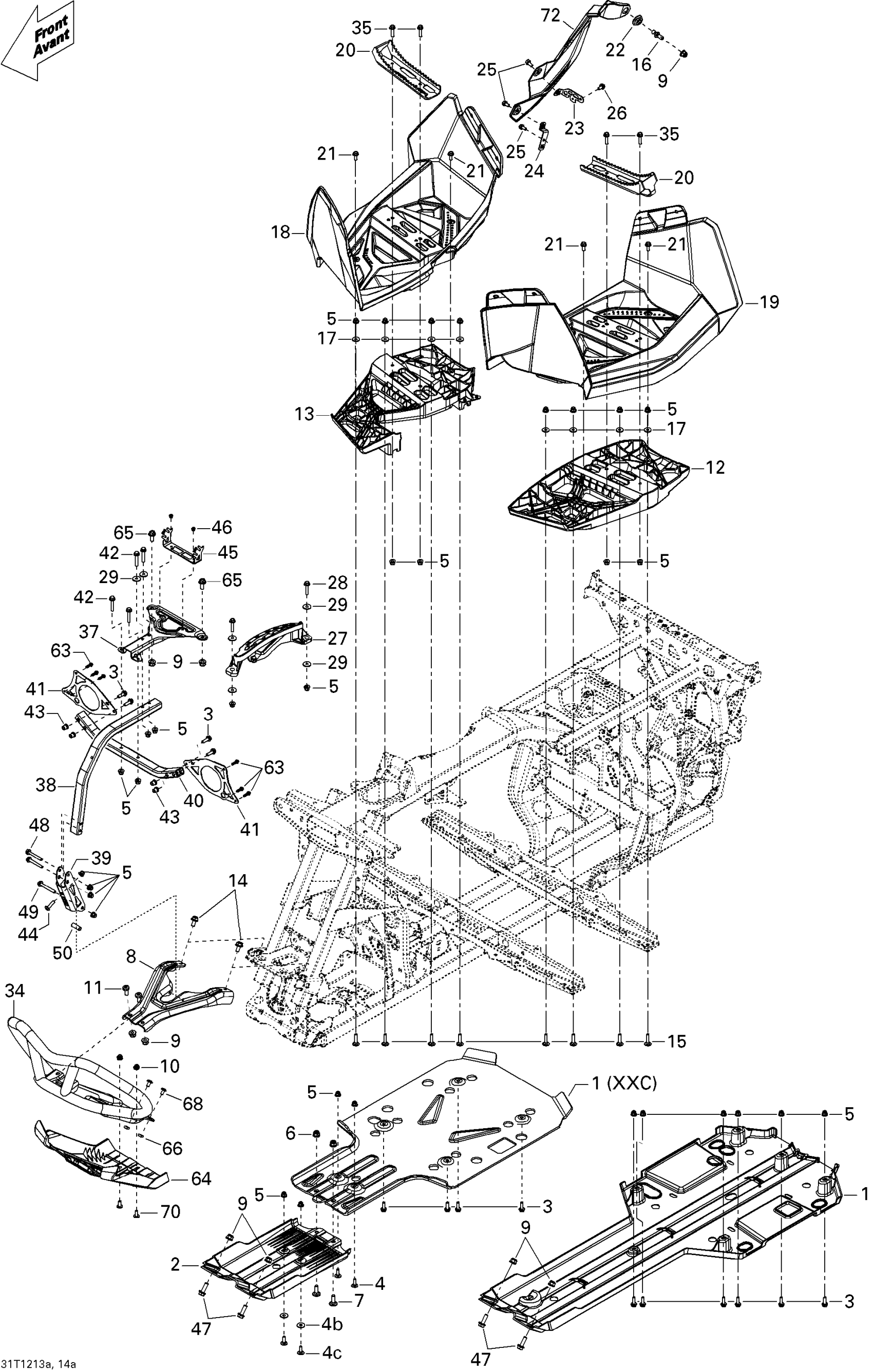

Can-Am Renegade STD, XXC, 800R EFI, 2012 Body And Accessories 1 Diagram

#

Description
Price

1

Protective Plate Kit

715002374

$64.58

1

Ens Protec Cen.*Kit Cent. Skid | XXC

715002078

$144.99

1

Skid Plate, Front | XXC

715000925

$109.99

2

Skid Plate | XXC

705007820

$18.43

3

Hex. Flange Screw M6 X 20

207662084

$0.83

3

Hex. Flange Screw M6 X 20

207662084

$0.83

4

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

4b

Torx Screw M6 X 20

250000712

$1.74

4c

Stainless Steel Flat Washer

234062670

$1.74

5

Flange Elastic Nut M6

233261434

$3.61

5

Flange Elastic Nut M6

233261434

$3.61

6

Hex. Flange Elastic Nut M8

233281434

$1.74

7

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

8

Bumper Support

705003505

$36.89

9

Hex. Flange Elastic Nut M8

233281434

$1.74

10

Insert Half Hex Body M8 x 1.25

293450307

$2.03

11

Torx Screw M8 X 20, Scotch Grip

250000740

$2.09

12

LH Footboard

705004176

$46.12

13

RH Footboard

705004177

$46.12

14

Hex. Flange Screw M8 X 20

207682044

$0.92

15

Carriage Bolt M6 X 30

207763044

$3.61

16

Ball Head Stud

250300039

$6.15

17

Flat Washer 6 mm

234062410

$0.64

19

LH Footboard/Fender

705004730

$124.58

18

RH Footboard/Fender

705004729

$124.58

20

Footrest

705002326

$41.51

21

Hex. Flange Screw M6 X 16

207661654

$1.74

22

Oval Washer

705000321

$4.64

23

Engine Cover Support

705011461

$8.46

24

Engine Cover Support

705003646

$7.69

25

Hex. Flange Screw M6 X 12

210261250

$1.56

26

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

27

Lever Indicator

705003838

$27.66

28

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

29

Flat Washer

224061201

$1.11

34

Front Bumper

705011635

$272.28

35

Hex. Flange Screw M6 X 25

207662554

$1.48

37

Bracket

705003599

$22.28

38

Front Bent Sectional Tube

705016094

$94.58

39

Support

705002282

$32.28

40

Bent Sectional Tube

705016093

$94.58

41

Painted Headlamp Support

705004309

$15.35

42

Hex. Flange Screw M6 X 35

207663544

$0.74

43

Insert

293450275

$9.89

44

Torx Screw M6 x 25

250000284

$1.74

45

Fuse Holder

710002482

$6.89

46

Pop Rivet 3/16"

390402400

$0.25

47

Hex. Flange Screw M8 X 25

207682544

$0.90

48

Hex. Flange Screw M6 X 45

207664544

$1.07

49

Hex. Flange Screw M6 X 50

207665044

$3.38

50

Spacer

705005809

$11.98

63

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

64

Front Bumper Plate

705004850

$16.89

65

Hex. Flange Screw M8 X 20

207682044

$0.92

66

Square Nut M6

232862412

$1.18

68

Torx Screw M6 X 12

250000454

$3.61

70

Torx Truss Screw M6 X 16

250000721

$1.39

72

Engine Cover

705004966

$13.83
