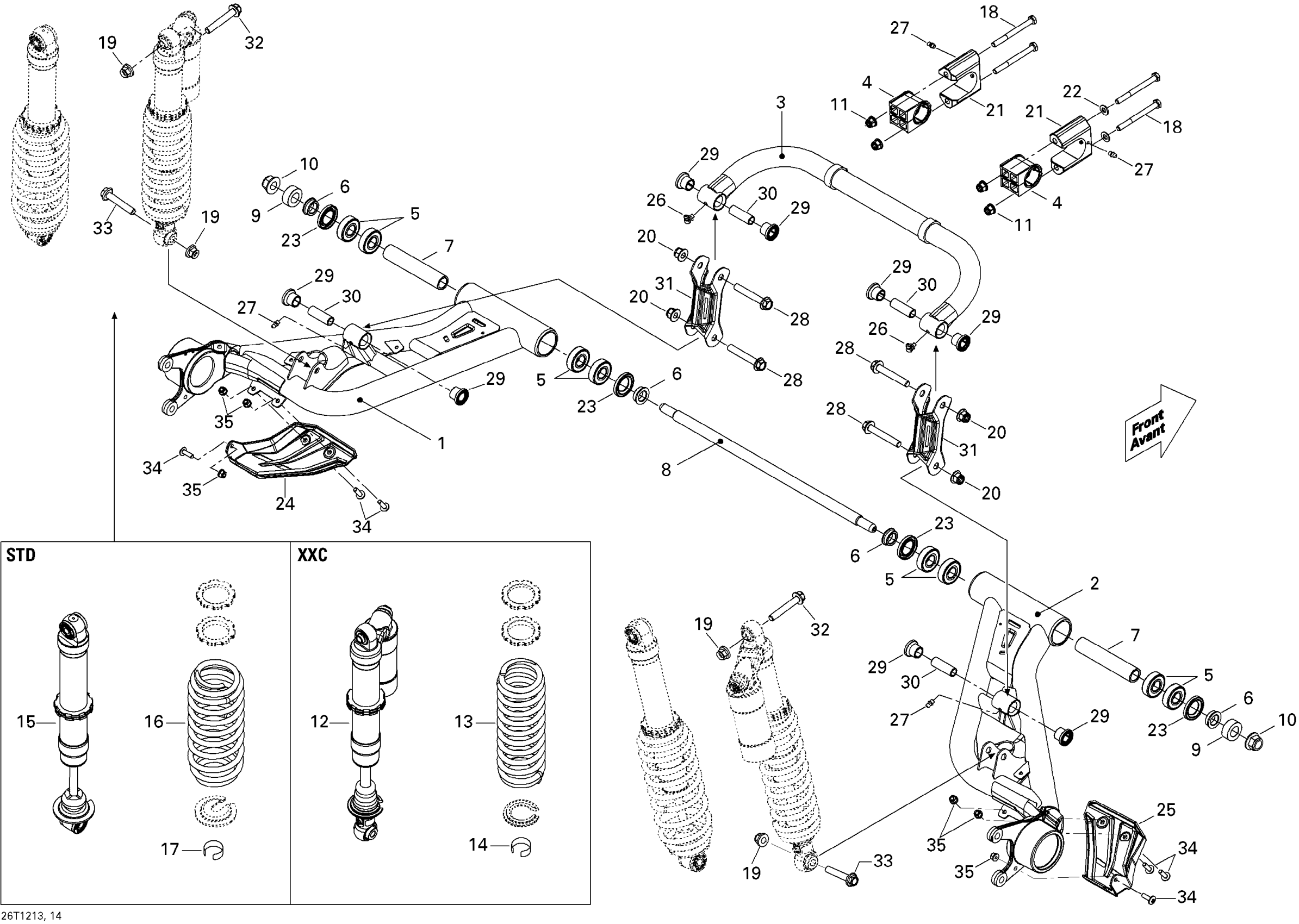

Can-Am Renegade STD, XXC, 800R EFI, 2012 Rear Suspension Diagram

#

Description
Price

1

Black LH Swing Arm

706001860

$276.09

1

YELLOW LH SWING ARM - Call your local BRP dealership | XXC

706001868

Unavailable

2

Black RH Swing Arm

706001861

$276.09

2

Yellow RH Swing Arm | XXC

706001869

$276.09

3

Swaybar

706000988

$117.13

4

Stabilizer Bar Bushing

706004640

$7.28

5

Ball Bearing

293350145

$12.54

6

Spacer

706001282

$10.37

7

Spacer

706002259

$26.09

8

Axial Pivot

706001023

Unavailable

9

Flat Washer M17

250200112

$6.34

10

HEX. ELASTIC FLANGED NUT M14 - Call your local BRP dealership

233271416

Unavailable

11

Hex. Flange Elastic Nut M8

233281434

$1.74

12

REAR SHOCK - Call your local BRP dealership | XXC

706000868

Unavailable

13

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | XXC

706000950

Unavailable

14

Fox Decal - 0.046M | XXC

706001084

Unavailable

15

REAR SHOCK - Call your local BRP dealership | STD

706000864

Unavailable

16

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | STD

706000955

Unavailable

17

Fox Decal - 0.046M | XXC

706001084

Unavailable

18

Hex. Screw M8 X 85

250001035

$1.46

19

Hex. Flange Elastic Nut M10

233201436

$1.74

20

Hex. Flange Elastic Nut M10

233201414

$1.26

21

Bushing Holder

706001099

$29.82

22

Flat Washer M8

234081430

$1.74

23

Seal

293200144

$4.52

24

LH PROTECTOR - Call your local BRP dealership

706001009

Unavailable

25

RH PROTECTOR - Call your local BRP dealership

706001010

Unavailable

26

Grease Fitting 90°

293550056

$1.04

27

Grease Fitting

250000315

$4.82

28

Hex. Flange Screw M10 X 65

207606536

$3.61

29

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

30

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

31

Sway Bar Linkage

706001020

$11.72

32

Hex. Flange Screw M10 X 6

207606046

$3.38

33

Hex. Flange Screw M10 X 55

207605546

$1.74

34

Torx Screw M6 X 20

250000722

$1.34

35

Hex. Flange Elastic Nut M6

233261494

$1.26
