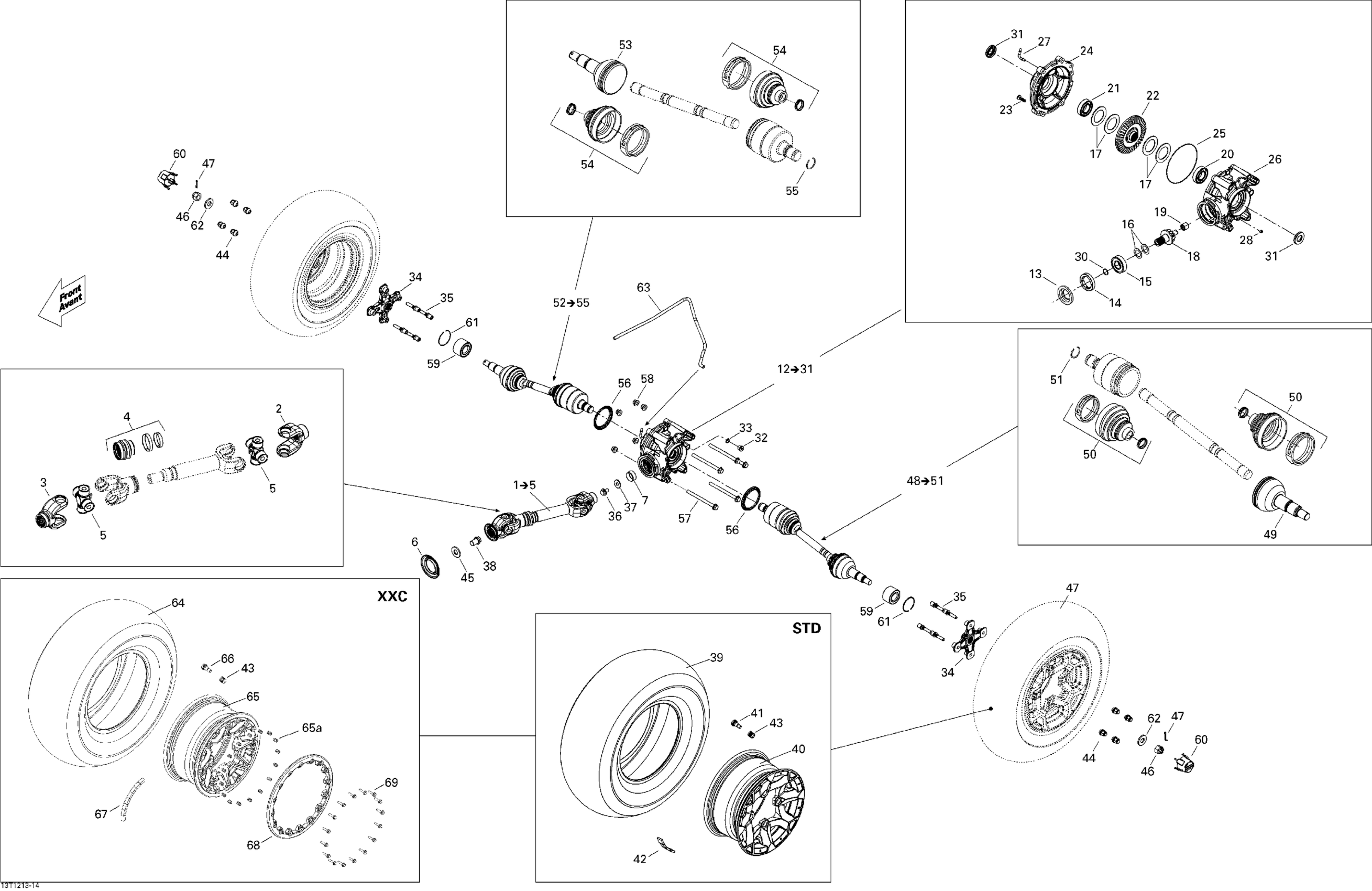

Can-Am Renegade STD, XXC, 800R EFI, 2012 Drive System, Rear Diagram

#

Description
Price

1

Shaft Ass'y Kit | Incldues 1 to 5

703500986

$284.30

2

Fixe Yoke

715900101

$26.84

3

Fixed Joint

715900129

$23.10

4

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

5

Universal Joint

715900326

$64.15

6

Protector

705501123

$5.90

7

Wear Ring | 4X4

705400036

$24.60

12

Rear Differential Ass'y | Includes 12 to 31

705501419

Unavailable

13

Oil Seal | 4X4

705401481

$17.88

14

Nut

705502059

$30.57

15

Ball Bearing | 4X4

705500260

$29.82

16

Pinion Gear Shim .022"

705500075

Unavailable

16

Pinion Gear Shim 1.67 mm

705502061

$15.64

16

Pinion Gear Shim

705501162

$14.72

17

Differential Shim 0.02 mm

705502060

$12.64

18

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$413.40

19

Needle Bearing

705501408

$64.90

20

Ball Bearing

705502737

$44.75

21

Ball Bearing

705502738

$55.19

22

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$413.40

23

Screw | 4X4

705401601

$8.67

24

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

Unavailable

25

Seal | 4X4

705500265

$15.64

26

PINION REAR COVER - Call your local BRP dealership

705501395

Unavailable

27

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

28

Drain Plug | 4X4

705500894

$10.24

30

O-Ring | 4X4

705500267

$6.06

31

Oil Seal

705501996

$20.12

32

Fill Level Plug | 4X4

705500504

$7.61

33

Copper Washer | 4X4

705500506

$0.36

34

Wheel Hub Ass'y

705501716

$123.10

35

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$3.96

36

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

37

Flat Washer M12

250200102

$1.74

38

Hex Flange Screw M12 X 16

250001039

$1.74

39

Rear Tire | Europe & International

705500820

$147.73

40

Deep Black, 12 Inch Rim X 7,5 | STD

705501853

$191.01

41

Rim Valve With Cap

705400193

$6.49

42

1/2 Oz Weight

219704465

$4.22

43

Valve Cap

293000110

$1.15

44

Black, Wheel Nut M10 X 1.25

250100184

$3.54

45

Flat Washer M12

250200102

$1.74

46

Hex. Flange Castellated Nut M18

232291413

$2.82

47

Cotter Pin

250400036

$1.74

48

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$226.84

49

CV JOINT - Call your local BRP dealership

705500980

Unavailable

50

Boot Kit

705500870

$39.52

51

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

52

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$226.84

53

CV JOINT - Call your local BRP dealership

705500980

Unavailable

54

Boot Kit

705500870

$39.52

55

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

56

Wear Ring

705501124

$6.73

57

Hex. Flange Screw M10 X 135

250001041

$4.46

58

Hex. Flange Elastic Nut M10

233201436

$1.74

59

Ball Bearing

293350150

$52.21

60

Wheel Cap

705400928

$6.30

61

Circlip

293370019

$4.68

62

Conical Spring Washer M18

250200171

$5.28

63

Polyurethane Hose 10000Mm Long

219704410

$46.12

64

Tire | North America

705500926

$147.73

64

Rear Tire | Europe & International

705500820

$147.73

65

Black, Rim | XXC

705502244

$265.64

65a

Insert | XXC

293450317

$6.49

66

Rim Valve With Cap

705400193

$6.49

67

1/2 Oz Weight

219704465

$4.22

68

Bead Lock B-190 | XXC

705401810

$81.31

69

Hex. Flange Screw M6 X 25

250000787

$1.83
