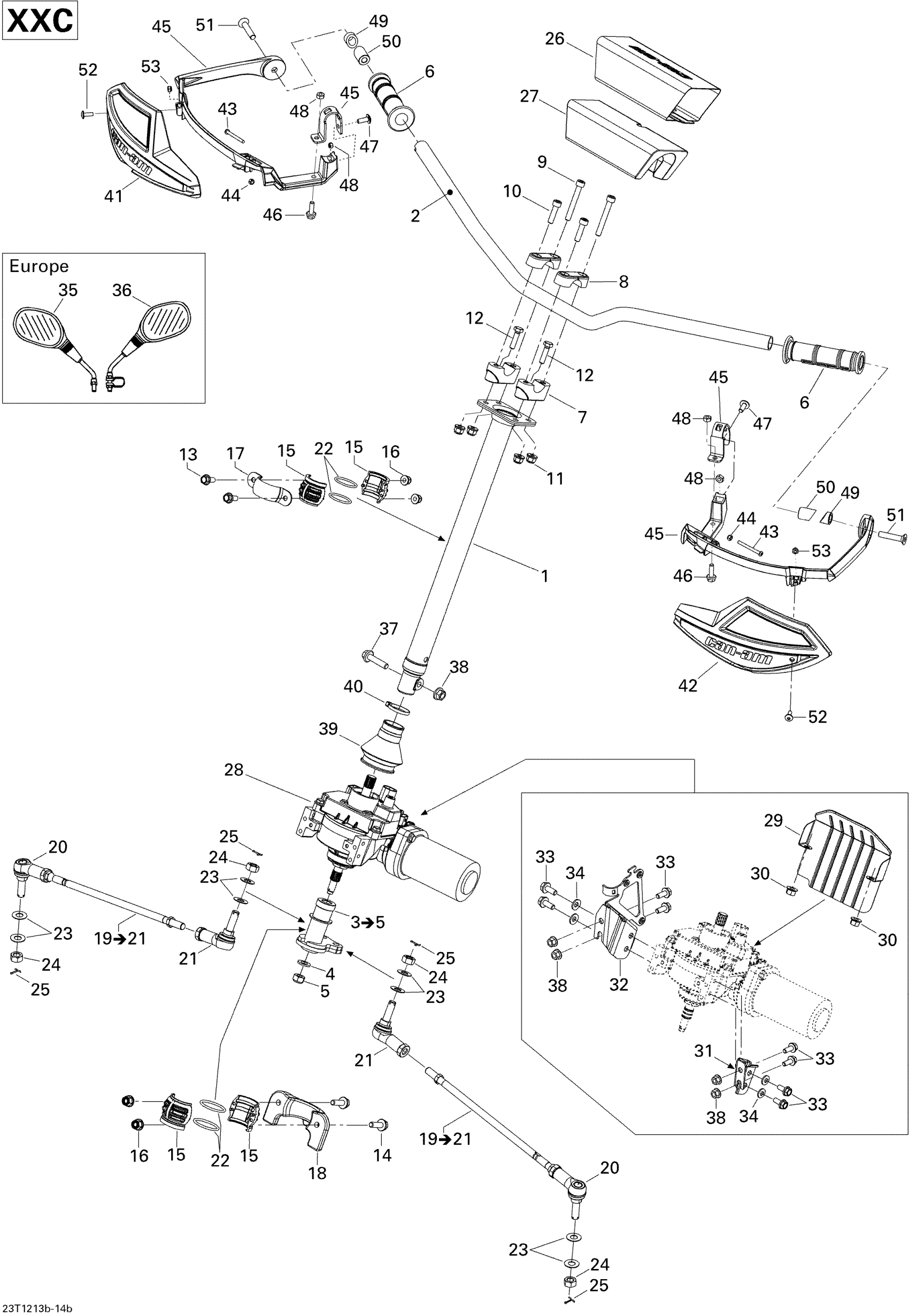

Can-Am Renegade STD, XXC, 800R EFI, 2012 Steering XXC Diagram

#

Description
Price

1

Kit Tube-Main.

703501137

$184.99

2

Aluminum Handle Bar

709400513

$63.49

3

Pitman Kit | Includes 3 to 5

703500785

$159.99

4

Hardened Washer

706200281

$2.85

5

Hex. Flange Elastic Nut M12

250000047

$1.90

6

Handle Grip

709400493

$14.83

7

Lower Mounting Clamp

709402750

$25.99

8

Support

709400496

$22.49

9

Socket Head Screw M8 X 60

205086060

$4.12

10

Socket Screw M8 X 30

205083060

$2.96

11

Hex. Elastic Flange Nut M8

233281416

$1.48

12

Hex. Screw M8 X 30

207183060

$1.58

13

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

14

Hex. Flange Screw M8 X 25

207682544

$1.35

15

Spherical Half Bushing

709400783

$7.65

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

Upper Column Attachment

709400827

$1.09

18

Column Attachment

709401428

$38.99

19

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

20

LH Ball Joint

709402303

$36.99

21

RH Ball Joint

709402302

$36.99

22

O-Ring

293300068

$7.65

23

Hardened Washer

706200281

$2.85

24

Nut M12

250100099

$2.09

25

Cotter Pin

211400013

$0.37

26

Cover B-190

709402414

$30.99

27

Foam

709400422

$17.49

28

Power Steering

709401608

$1,010.49

29

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

30

Hex. Flange Nut M8

233081416

$1.15

31

Power Steering Module Bracket

709400848

$16.49

32

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

33

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

34

Conical Spring Washer M8

234281474

$1.48

35

LH Mirror | Europe

709400406

$32.99

36

RH Mirror | Europe

709400523

$35.99

37

Hex. Flange Screw M8 X 35

207683544

$1.69

38

Hex. Flange Nut M8

233081416

$1.15

39

Bellows

709400674

$18.99

40

Tie-Rap 180 mm

414115200

$0.11

41

RH AIR DEFLECTOR - Call your local BRP dealership

709400530

Unavailable

42

LH AIR DEFLECTOR - Call your local BRP dealership

709400531

Unavailable

43

Socket Head Screw M4 X 40 | X

205444086

$1.69

44

Elastic Stop Nut M4

232541414

$0.58

45

Air Deflector Support Kit | X

715001378

$138.49

46

Hex. Flange Screw M6 X 20

207662044

$2.00

47

Torx Screw M6 X 16

250000223

$2.11

48

Hex. Elastic Stop Nut M6

232561600

$1.15

49

Small Bracket | DS 650 X

709400161

$21.99

50

Large Bracket | DS 650 X

709400162

$20.99

51

Socket Head Screw | X

205384034

$6.49

52

Torx Screw M5 X 14

250000742

$1.47

53

Hex. Elastic Nut M5 | X

232551600

$1.15
