07- Front Suspension

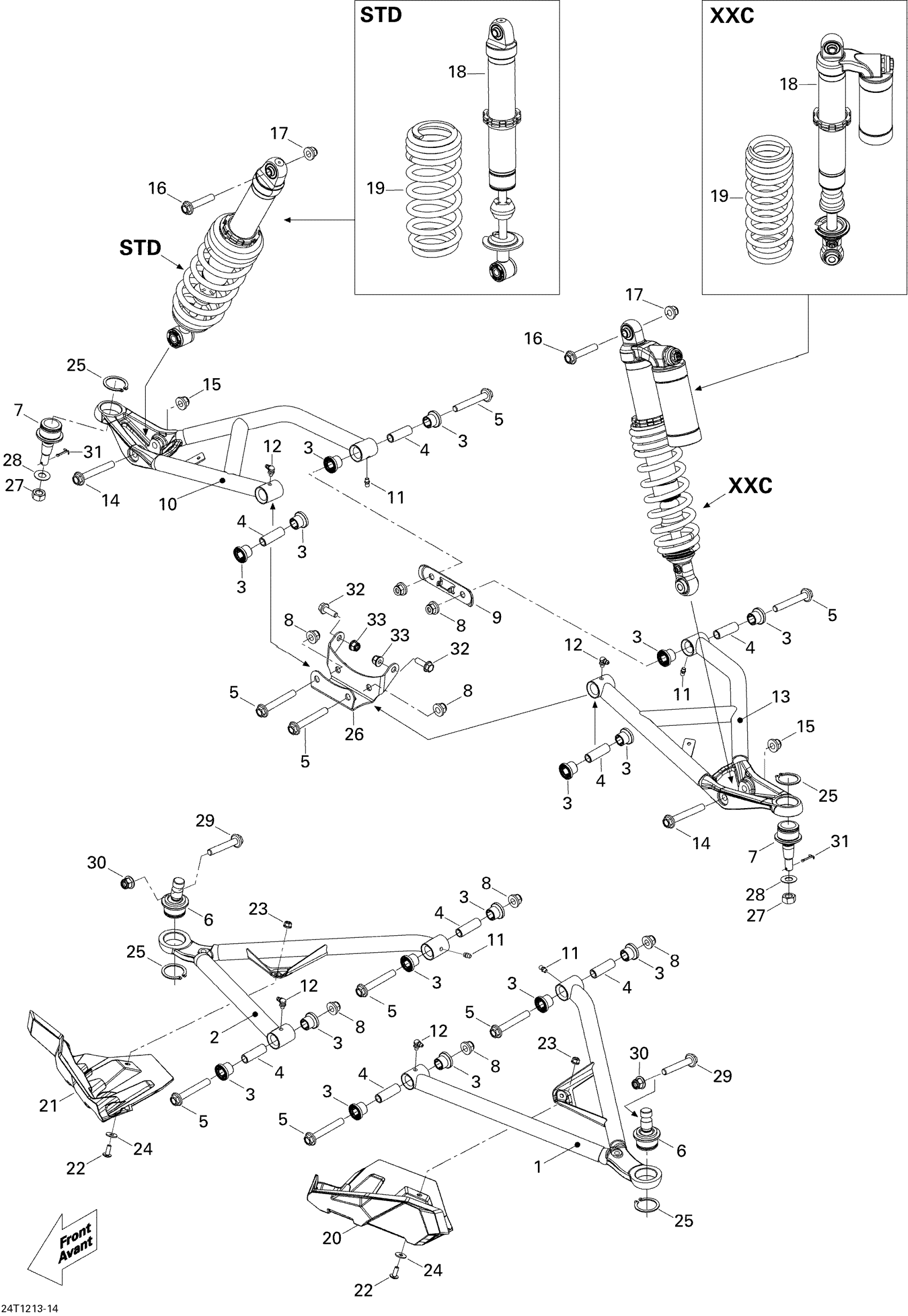

Can-Am Renegade STD, XXC, 800R EFI, 2012 07- Front Suspension Diagram
#
1
LH Lower Suspension Arm
706204639
Unavailable
2
Black, RH Lower Arm
706202870
Unavailable
3
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
4
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
5
Hex. Flange Screw M10 X 70
207607046
Unavailable
6
Ball Joint
706202045
Unavailable
7
Ball Joint
706202044
Unavailable
8
Hex. Flange Elastic Nut M10
233201436
Unavailable
9
Front Suspension Cross Plate
706200998
Unavailable
10
Black RH Upper Arm
706201797
Unavailable
11
Grease Fitting
408200700
Unavailable
12
Grease Fitting 90°
293550056
Unavailable
13
Black LH Upper Arm
706201796
Unavailable
14
Hex. Flange Screw M10 X 75
250001038
Unavailable
15
Hex. Flange Elastic Nut M10
233201436
Unavailable
16
Hex. Flange Screw M10 X 55
207605546
Unavailable
17
Hex. Flange Elastic Nut M10
233201436
Unavailable
18
Shock Absorber | STD
706201267
Unavailable
18
SHOCK ABSORBER - Call your local BRP dealership | XXC
706201257
Unavailable
19
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | STD
706201268
Unavailable
19
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | XXC
706201258
Unavailable
20
LH Joint Protector
706202808
Unavailable
21
RH Joint Protector
706202809
Unavailable
22
Torx Truss Screw M6 X 16
250000721
Unavailable
23
Hex. Flange Elastic Nut M6
233261494
Unavailable
24
Stainless Steel Flat Washer
234062670
Unavailable
25
Circlip
293370035
Unavailable
26
Upper Front Holder
705203247
Unavailable
27
Nut M12
250100099
Unavailable
28
Hardened Washer
706200281
Unavailable
29
Hex. Flange Screw M10 X 60
207606044
Unavailable
30
Hex. Flange Elastic Nut M10
233201434
Unavailable
31
Cotter Pin
211400017
Unavailable
32
Hex. Flange Screw M8 X 25
207682544
Unavailable
33
Hex. Flange Elastic Nut M8
233281414
Unavailable
