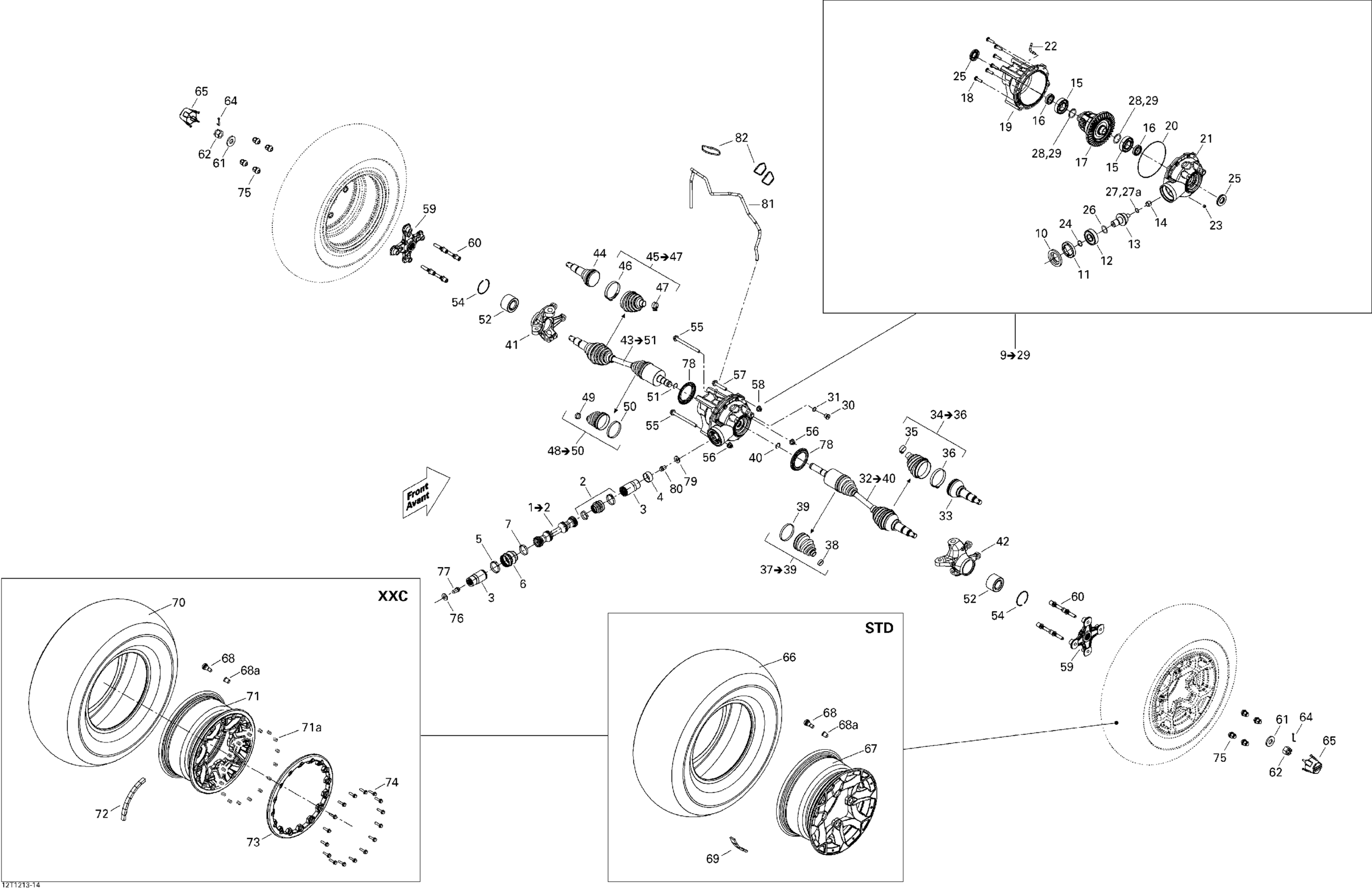

Can-Am Renegade STD, XXC, 800R EFI, 2012 Drive System, Front Diagram

#

Description
Price

1

Propeller Shaft | Includes 1 to 2

705400913

$195.49

2

Rubber Boot Kit

703500794

Unavailable

3

Front Bushing Shaft Kit | 4X4

703500678

$101.46

4

Wear Ring | 4X4

705400036

$24.60

5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

6

Rubber Boot

705401093

$5.00

7

Oetiker Gear Clamp

293650199

$7.16

9

Front Differential | Includes 8 to 31

703500907

$1,410.42

9

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,603.70

10

Oil Seal | 4X4

705401481

$17.88

11

Nut | 4X4

705401603

$33.55

12

Ball Bearing | 4X4

705500260

$29.82

13

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

14

Needle Bearing | 4X4

705500261

$17.13

15

Ball Bearing | 4X4

705401606

$47.73

16

Ball Bearing | 4X4

293350044

$29.82

17

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

17

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

18

Screw | 4X4

705401601

$8.67

19

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

20

Seal | 4X4

705500265

$15.64

21

FRONT COVER - Call your local BRP dealership

705400761

Unavailable

22

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

23

Drain Plug | 4X4

705500894

$10.24

24

O-Ring | 4X4

705500267

$6.06

25

Gasket | 4X4

705401618

$17.13

26

Pinion Gear Shim 1.67 mm

705502061

$15.64

27

Pinion Gear Shim .022"

705500075

Unavailable

27a

Pinion Gear Shim

705501162

$14.72

28

Shim | 4X4

705401604

$51.46

29

Shim | 4X4

705401604

$51.46

30

Fill Level Plug | 4X4

705500504

$7.61

31

Copper Washer | 4X4

705500506

$0.36

32

RH Front - Premium CV Axle

705401116

$226.84

33

CV Joint

705500560

Unavailable

34

Wheel Boot Kit

705400511

$39.52

35

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

36

OETIKER CLAMP 70MM - Call your local BRP dealership

293650194

Unavailable

37

Differential Boot Kit

705400512

$39.52

38

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

39

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

40

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

41

LH KNUCKLE - Call your local BRP dealership

705401178

Unavailable

42

RH KNUCKLE - Call your local BRP dealership

705401179

Unavailable

43

LH Front - Premium CV Axle | Includes 43 to 51

705401115

$226.84

44

CV Joint

705500560

Unavailable

45

Wheel Boot Kit

705400511

$39.52

46

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

47

OETIKER CLAMP 70MM - Call your local BRP dealership

293650194

Unavailable

48

Differential Boot Kit

705400512

$39.52

49

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

50

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

51

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

52

Ball Bearing

293350150

$52.21

54

Circlip

293370019

$4.68

55

Hex. Flange Screw M10 X 125

230602546

$6.08

56

Hex. Flange Elastic Nut M10

233201436

$1.74

57

Hex. Flange Screw M8 X 55

207685544

$4.41

58

Hex. Flange Elastic Nut M8

233281414

$1.14

59

Wheel Hub Ass'y

705501716

$123.10

60

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$3.96

61

Conical Spring Washer M18

250200171

$5.28

62

Hex. Flange Castellated Nut M18

232291413

$2.82

64

Cotter Pin

250400036

$1.74

65

Wheel Cap

705400928

$6.30

66

Tire | North America

705400600

$170.87

66

TIRE_205/80R12 F - Call your local BRP dealership | Europe & International

705400475

Unavailable

67

Deep Black, 12" X 6 Rim | STD

705401417

$175.34

68

Rim Valve With Cap

705400193

$6.49

68a

Valve Cap

293000110

$1.15

69

1/2 Oz Weight

219704465

$4.22

70

Tire | North America

705400600

$170.87

70

TIRE_205/80R12 F - Call your local BRP dealership | Europe & International

705400475

Unavailable

71

Black, Rim | XXC

705401678

$260.99

71a

Insert | XXC

293450317

$6.49

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Bead Lock B-190 | XXC

705401810

$81.31

74

Hex. Flange Screw M6 X 25

250000787

$1.83

75

Black, Wheel Nut M10 X 1.25

250100184

$3.54

76

Flat Washer M12

250200102

$1.74

77

Hex Flange Screw M12 X 20

250001042

$1.56

78

Wear Sleeve

705400780

$6.73

79

Flat Washer M12

250200102

$1.74

80

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

81

Polyurethane Hose 10000Mm Long

219704410

$46.12

82

Tie-Rap 180 mm

414115200

$0.09
