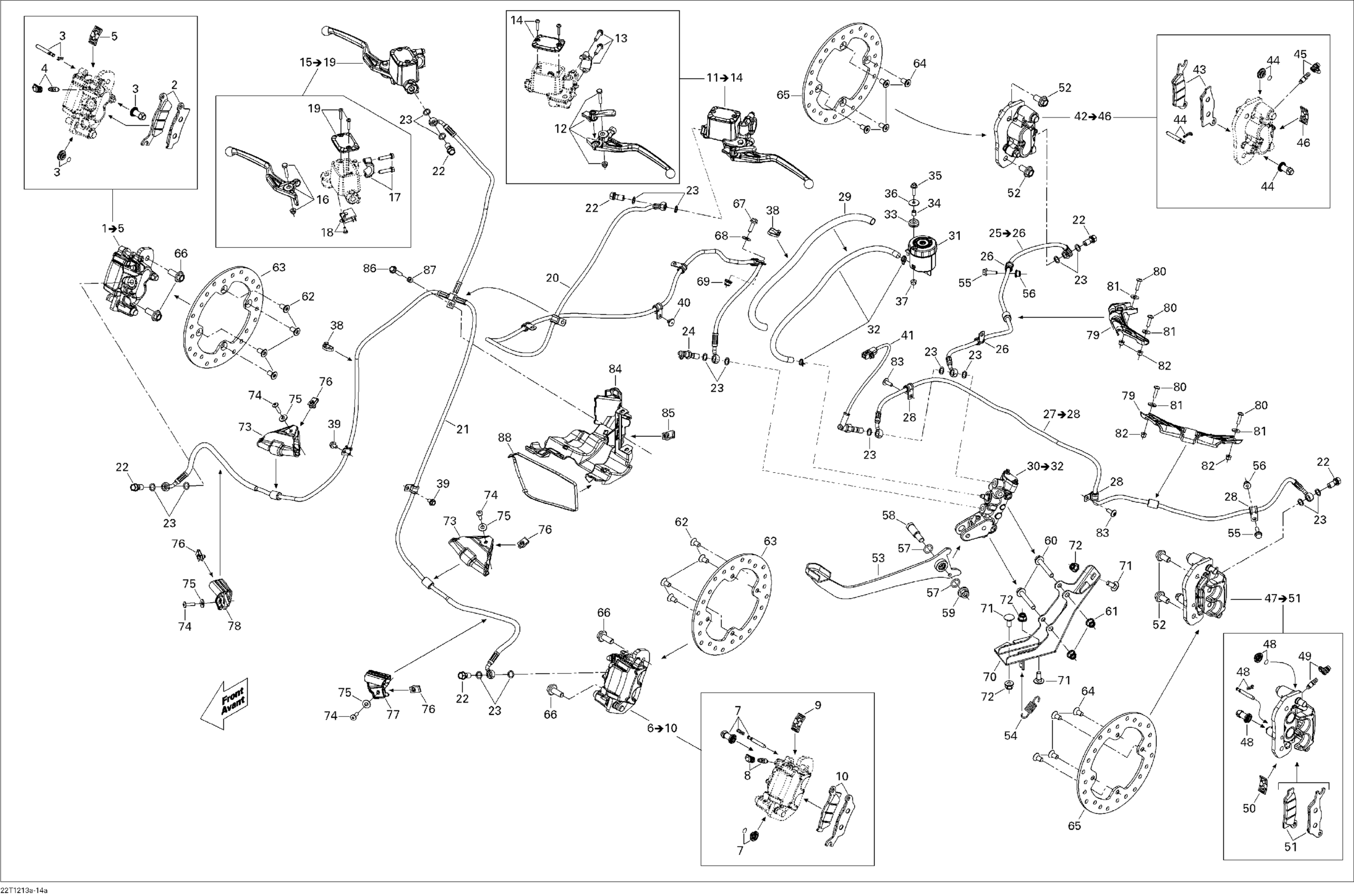

Can-Am Renegade STD, XXC, 800R EFI, 2012 Hydraulic Brakes Except Europe Diagram

#

Description
Price

1

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$214.15

2

RH Organic Brake Pad Kit

705601014

$39.52

3

Pin Set

705601016

$9.26

4

Bleeding Screw

705601017

$5.90

5

Retaining Spring

705601018

$7.55

6

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$214.15

7

Pin Set

705601016

$9.26

8

Bleeding Screw

705601017

$5.90

9

Retaining Spring

705601018

$7.55

10

LH Organic Brake Pad Kit

705601015

$39.52

11

LH Front Master Cylinder Ass'y | Includes 11 to 14

705601431

$202.21

12

Lever Set

705601013

$57.43

13

Clamp And Screw Kit

507032477

$22.36

14

Cap Set

219800096

$20.12

15

RH Front Master Cylinder Ass'y | Includes 15 to 19

705601432

$261.16

16

Lever Set

705601011

$64.15

17

Clamp And Screw Kit

507032477

$22.36

18

Kit Switch

705601012

$52.21

19

Cap Set

219800096

$20.12

20

BRAKE LINE - Call your local BRP dealership

705601059

Unavailable

21

Front Brake Hose

705601489

$141.01

22

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

23

Copper Washer

705601628

$4.21

24

Bleeding Screw

705601051

$10.97

25

Brake Line Ass'y

705601002

$35.79

26

Clamp

293650256

$4.36

27

Brake Line Ass'y | Includes 27 to 28

705600911

$46.99

28

Clamp

293650256

$4.36

29

Tubing 10 MM 1000MM Long

219704407

$2.20

30

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$206.69

31

Oil Tank

705601020

$35.79

32

Oil Housing Hose

705601019

$14.43

33

Grommet

414036300

$2.22

34

Bushing

293900112

$9.30

35

Hex.Flange Screw M5 X 20

207652044

$1.56

36

Flat Washer

224060201

$1.12

37

Hex. Flange Elastic Nut M5

233251414

$1.66

38

Tie-Rap 180 mm

414115200

$0.09

39

Hex. Flange Screw M6 X 10

210261040

$1.25

40

Pop Rivet 3/16"

390406500

$0.70

41

Brake Switch

705601251

$47.73

42

RH Rear Brake Caliper | Includes 41 to 45

705602190

$213.40

43

RH Organic Brake Pad Kit

705601014

$39.52

44

Pin Set

705601016

$9.26

45

Bleeding Screw

705601017

$5.90

46

Retaining Spring

705601018

$7.55

47

LH Rear Caliper Ass'y | Includes 47 to 51

705600860

$213.40

48

Pin Set

705601016

$9.26

49

Bleeding Screw

705601017

$5.90

50

Retaining Spring

705601018

$7.55

51

LH Organic Brake Pad Kit

705601015

$39.52

52

Hex. Flange Screw M10 X 20

207502046

$1.74

53

Deep Black, Brake Pedal

705602163

$138.03

54

Brake Pedal Spring

705600792

$8.42

55

Hex. Flange Screw M6 X 20

207662044

$1.66

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

57

O-Ring

293300144

$3.79

58

Shoulder Screw M10

250000513

$5.54

59

Hex. Flange Elastic Nut M10

233201436

$1.74

60

Hex. Flange Screw M8 X 55

207685544

$4.41

61

Hex. Flange Elastic Nut M8

233281414

$1.14

62

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

63

Disc Brake

705600999

$83.55

64

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

65

Disc Brake

705600999

$83.55

66

Hex. Flange Screw M10 X 25

207502546

$1.74

67

Hex. Flange Screw M6 X 20

207662044

$1.66

68

Flat Washer 6 mm

234062410

$0.64

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

70

Brake Pedal Bracket

705202000

$35.04

71

Carriage Bolt, M8 X 20

207782044

$1.56

72

Hex. Flange Elastic Nut M8

233281414

$1.14

73

Hose Guard

705601893

$4.19

74

Torx Screw M5 X 20

250000724

$1.39

75

Washer M5

250200025

$0.61

76

Panel Nut M5 X 0.8

250000958

$3.48

77

LH Hose Bracket

705601048

$4.19

78

RH Hose Bracket

705601049

$4.19

79

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

80

Torx Screw M5 X 20

250000792

$1.74

81

Washer M5

250200025

$0.61

82

Elastic Flange Nut M5

233251494

$1.74

83

Torx Screw M6 X 16

250000755

$0.72

84

Front Hose Bracket

705600983

$11.81

85

Panel Nut M6 X 1.0

250100198

$1.73

86

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

87

Bushing | DS 650 X

293900104

$5.10

88

Tie Rap, 533 mm

293750047

$1.84
