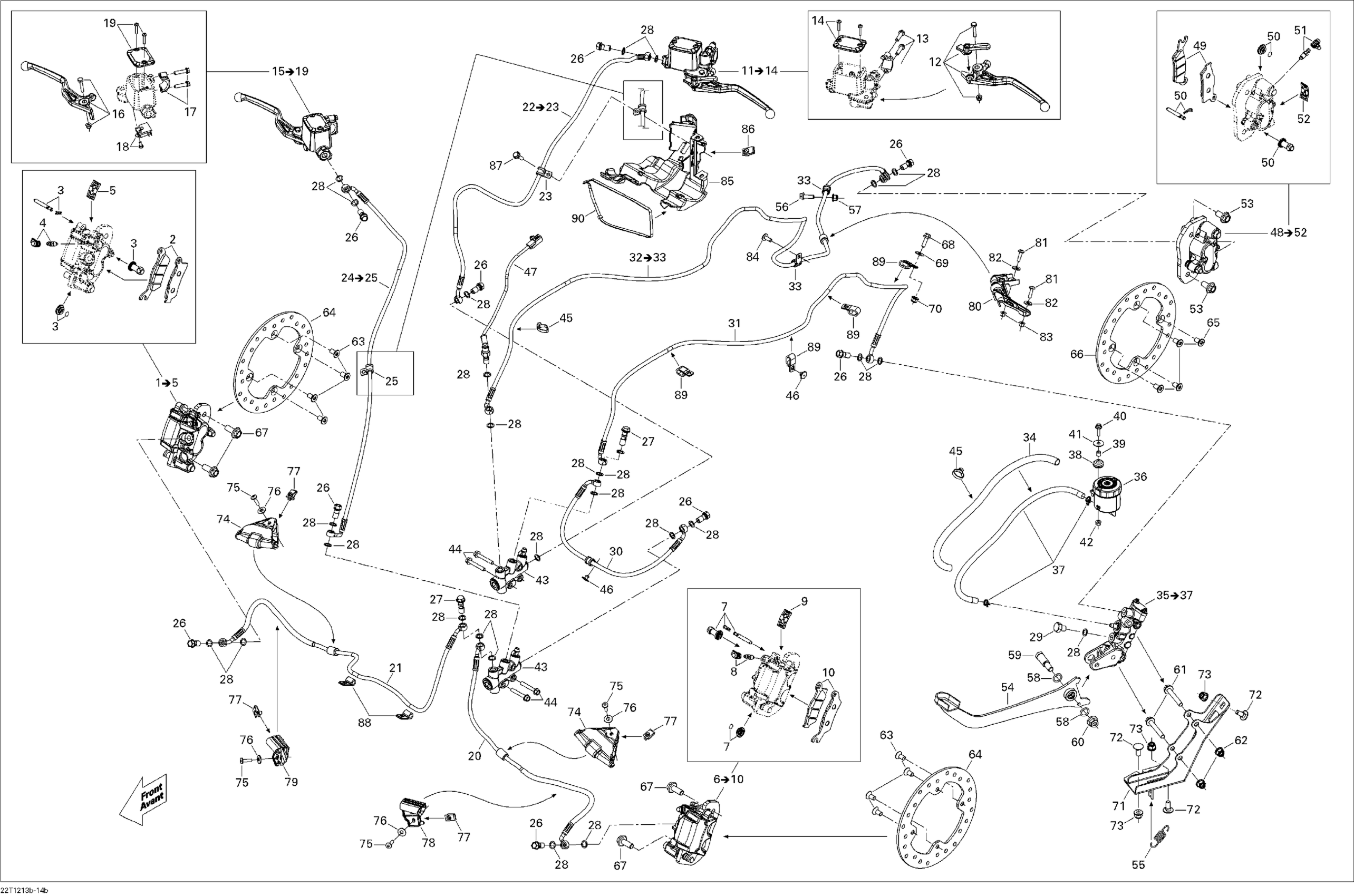

Can-Am Renegade STD, XXC, 800R EFI, 2012 06- Hydraulic Brakes Europe Diagram
#
1
RH Front Caliper Ass'y | Includes 1 to 5
705600861
Unavailable
2
RH Organic Brake Pad Kit
705601014
Unavailable
3
Pin Set
705601016
Unavailable
4
Bleeding Screw
705601017
Unavailable
5
Retaining Spring
705601018
Unavailable
6
LH Front Caliper Ass'y | Includes 6 to 10
705600862
Unavailable
7
Pin Set
705601016
Unavailable
8
Bleeding Screw
705601017
Unavailable
9
Retaining Spring
705601018
Unavailable
10
LH Organic Brake Pad Kit
705601015
Unavailable
11
LH Front Master Cylinder Ass'y | Includes 11 to 14
705601431
Unavailable
12
Lever Set
705601013
Unavailable
13
Clamp And Screw Kit
507032477
Unavailable
14
Cap Set
219800096
Unavailable
15
RH Front Master Cylinder Ass'y | Includes 15 to 19
705601432
Unavailable
16
Lever Set
705601011
Unavailable
17
Clamp And Screw Kit
507032477
Unavailable
18
Kit Switch
705601012
Unavailable
19
Cap Set
219800096
Unavailable
20
LH Front Brake Hose
705601523
Unavailable
21
RH Front Brake Hose
705601522
Unavailable
22
LH BRAKE HANDLE LINE ASS'Y - Call your local BRP dealership | Includes 22 to 23
705601525
Unavailable
23
Clamp
293650256
Unavailable
24
RH BRAKE HANDLE LINE ASS'Y - Call your local BRP dealership | Includes 24 to 25
705600970
Unavailable
25
Clamp
293650256
Unavailable
26
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
27
Banjo Bolt
705600958
Unavailable
28
Copper Washer
705601628
Unavailable
29
Hex. Screw M10 X 14, Scotch Grip
250000163
Unavailable
30
BRAKE LINE - Call your local BRP dealership
705600981
Unavailable
31
OUTLET HOSE, MASTER CYLINDER - Call your local BRP dealership
705600980
Unavailable
32
RH REAR BRAKE LINE ASS'Y - Call your local BRP dealership | Includes 32 to 33
705600971
Unavailable
33
Clamp
293650256
Unavailable
34
Tubing 10 MM 1000MM Long
219704407
Unavailable
35
Rear Master Cylinder Ass'y | Includes 28 to 30
705601776
Unavailable
36
Oil Tank
705601020
Unavailable
37
Oil Housing Hose
705601019
Unavailable
38
Grommet
414036300
Unavailable
39
Bushing
293900112
Unavailable
40
Hex.Flange Screw M5 X 20
207652044
Unavailable
41
Flat Washer
224060201
Unavailable
42
Hex. Flange Elastic Nut M5
233251414
Unavailable
43
Splitter
705600994
Unavailable
44
HEX. SCREW M6 X 40 - Call your local BRP dealership
210264080
Unavailable
45
Tie-Rap 180 mm
414115200
Unavailable
46
Pop Rivet 3/16"
390406500
Unavailable
47
Brake Switch
705601250
Unavailable
48
RH Rear Brake Caliper | Includes 41 to 45
705602190
Unavailable
49
RH Organic Brake Pad Kit
705601014
Unavailable
50
Pin Set
705601016
Unavailable
51
Bleeding Screw
705601017
Unavailable
52
Retaining Spring
705601018
Unavailable
53
Hex. Flange Screw M10 X 20
207502046
Unavailable
54
Deep Black, Brake Pedal
705602163
Unavailable
55
Brake Pedal Spring
705600792
Unavailable
56
Hex. Flange Screw M6 X 20
207662044
Unavailable
57
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
58
O-Ring
293300144
Unavailable
59
Shoulder Screw M10
250000513
Unavailable
60
Hex. Flange Elastic Nut M10
233201436
Unavailable
61
Hex. Flange Screw M8 X 55
207685544
Unavailable
62
Hex. Flange Elastic Nut M8
233281414
Unavailable
63
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
64
Disc Brake
705600999
Unavailable
65
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
66
Disc Brake
705600999
Unavailable
67
Hex. Flange Screw M10 X 25
207502546
Unavailable
68
Hex. Flange Screw M6 X 20
207662044
Unavailable
69
Flat Washer 6 mm
234062410
Unavailable
70
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
71
Brake Pedal Bracket
705202000
Unavailable
72
Carriage Bolt, M8 X 20
207782044
Unavailable
73
Hex. Flange Elastic Nut M8
233281414
Unavailable
74
Hose Guard
705601893
Unavailable
75
Torx Screw M5 X 20
250000724
Unavailable
76
Washer M5
250200025
Unavailable
77
Panel Nut M5 X 0.8
250000958
Unavailable
78
LH Hose Bracket
705601048
Unavailable
79
RH Hose Bracket
705601049
Unavailable
80
REAR HOSE PROTECTOR - Call your local BRP dealership
705600963
Unavailable
81
Torx Screw M5 X 20
250000792
Unavailable
82
Washer M5
250200025
Unavailable
83
Elastic Flange Nut M5
233251494
Unavailable
84
Torx Screw M6 X 16
250000755
Unavailable
85
Front Hose Bracket
705600983
Unavailable
86
Panel Nut M6 X 1.0
250100198
Unavailable
87
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
88
Clamp
293650219
Unavailable
89
Clamp
293650220
Unavailable
90
Tie Rap, 533 mm
293750047
Unavailable
