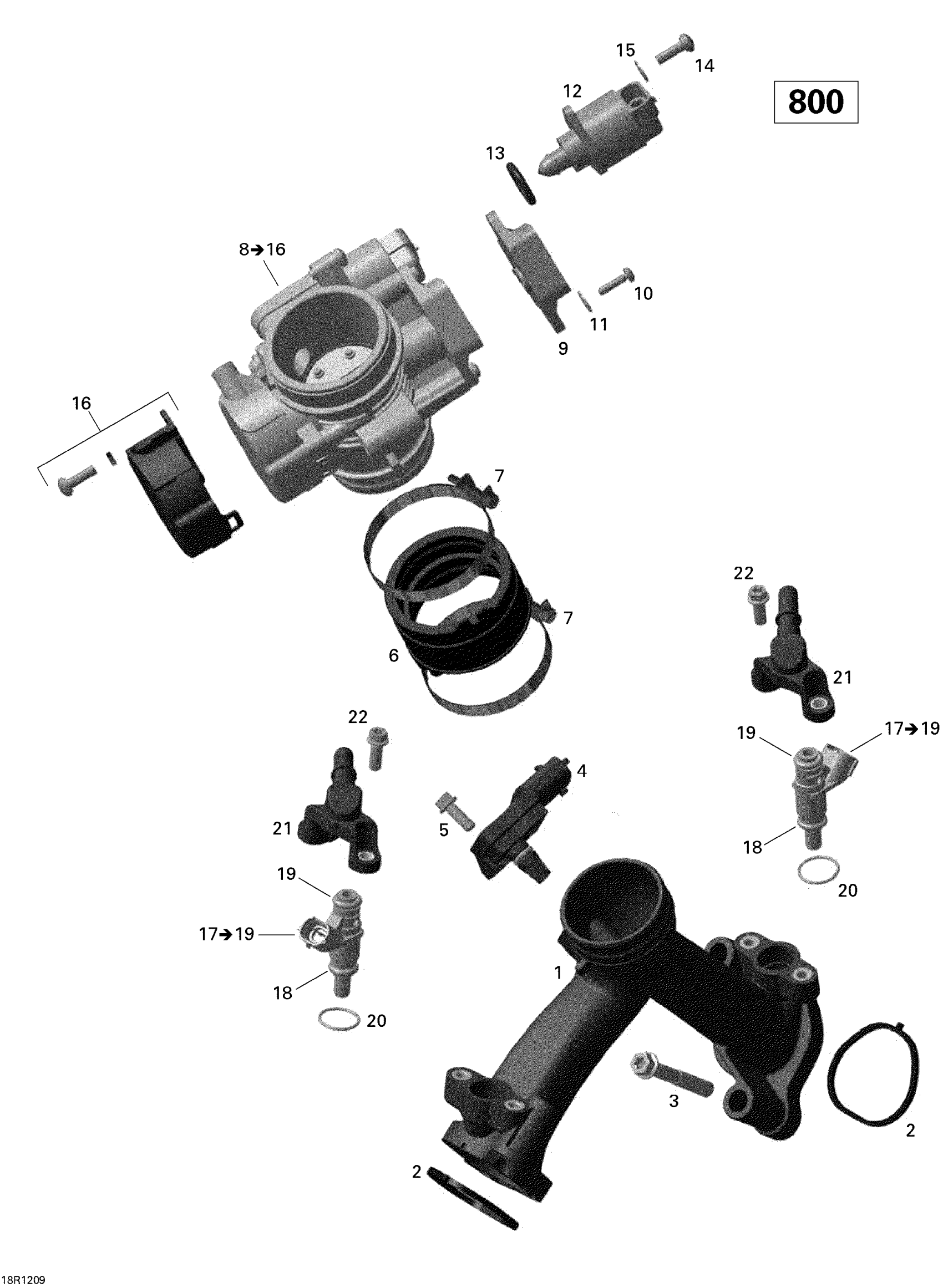

Can-Am Renegade STD, XXC, 800R EFI, 2012 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667581

$139.99

2

Gasket

420630642

$5.49

3

Torx Flange Screw M8 X 55

420641213

$7.59

4

Pressure And Temperature Sensor

707000995

$91.99

5

Torx Flange Screw M6 X 16

420641048

$2.99

6

Intake Adaptor

420267480

$15.99

7

Clamp

420251480

$14.49

8

Throttle Body Ass'y | Includes 8 to 16

420685326

$709.99

9

Position Sensor

420866120

$99.99

10

Phillips Screw M4 X 16

208641660

$1.49

11

Flat Washer 4 mm, Stainless

234042600

$1.49

12

Idle Air Control Valve

420665941

$184.99

13

O-Ring

420631780

$4.49

14

Binding Head Screw M5 X 16

420440911

$14.49

15

Snap Ring

420845710

$4.19

16

Cover Kit

420281540

$20.99

17

Injection Valve Ass'y | Includes no. 7-9

420874886

$139.99

18

O-Ring

420431890

$7.69

19

O-Ring

420631220

$14.49

20

O-Ring

420631296

$1.49

21

Fuel Rail

420874901

$25.99

22

Torx Flange Screw M6 X 16

420641048

$2.99
