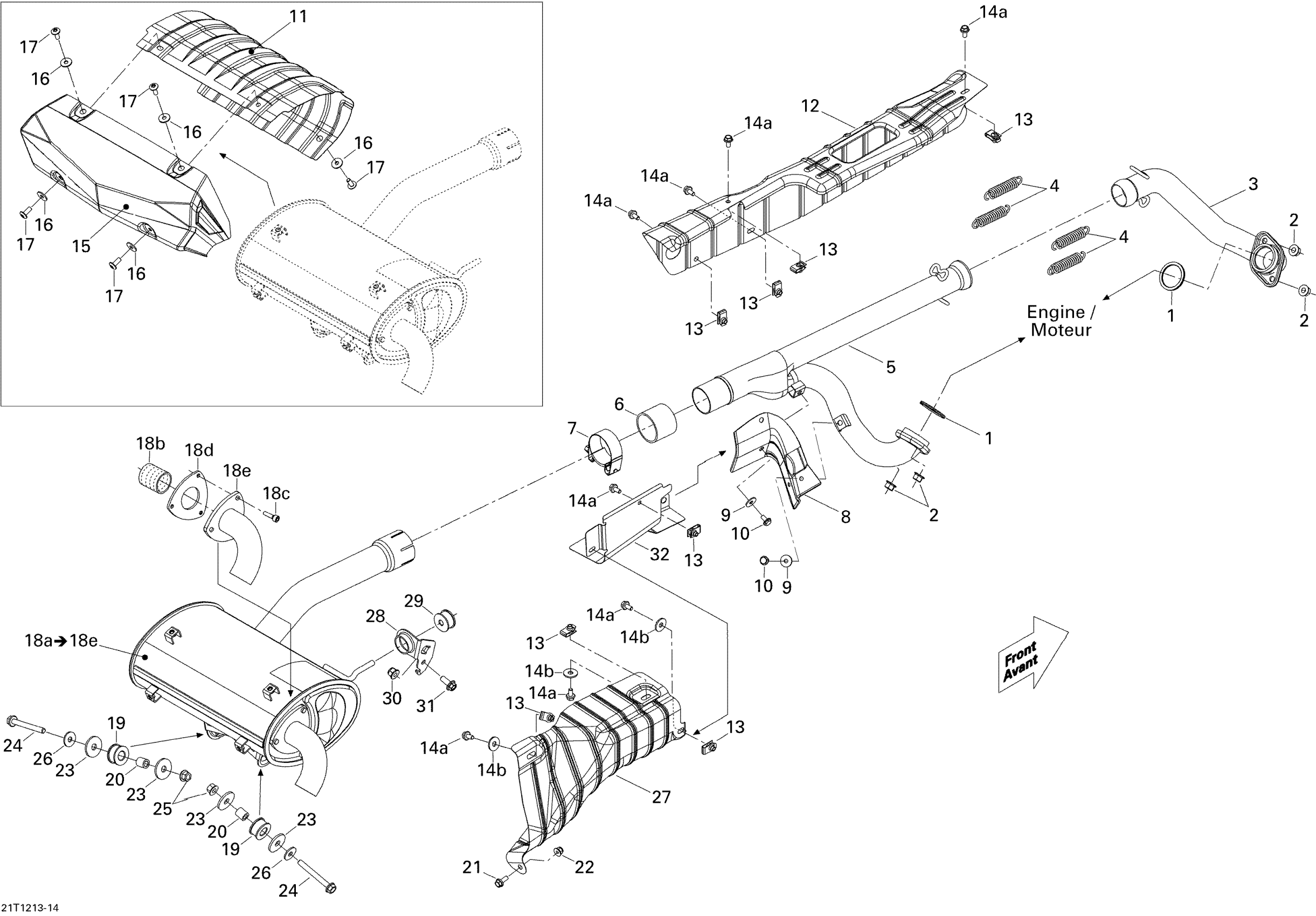

Can-Am Renegade STD, XXC, 800R EFI, 2012 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$10.21

2

Hex. Flange Nut M8

233081416

$1.63

3

Front Head Pipe

707600764

$130.57

4

Spring

415107100

$6.01

5

Rear Head Pipe

707601446

$192.51

6

Pipe Gasket

707601544

$17.88

7

Norma Gear Clamp

293650177

$8.67

8

Pipe Protector

707600932

$13.51

9

Flat Washer

250200082

$0.35

10

Hex. Flange Screw M6 X 12

250000574

$2.00

11

Heat Deflector

707600737

$20.12

12

Heat Shield

707603724

$11.51

13

Panel Nut M6 X 1.0

250100198

$1.73

14a

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

14b

Flat Washer 6 mm

234062410

$0.64

15

Heat Deflector

707600738

$48.48

16

Stainless Steel Flat Washer

234062670

$1.74

17

Torx Screw M6 X 16

250000223

$1.74

18a

Muffler | Includes 18a to 18e

707600748

Unavailable

18a

Muffler | Europe, Includes 18a to 18e

707600749

Unavailable

18b

Spark Arrestor

707601803

$46.24

18c

Socket Head Screw M6 X 20

205062060

$1.92

18d

Gasket

707601799

$4.45

18e

MUFFLER END PIECE - Call your local BRP dealership

715900144

Unavailable

19

Vibration Damper

707603323

$10.88

20

Bushing

293900106

$4.28

21

Hex. Flange Screw M6 X 16

207661654

$1.74

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

23

Washer

503032900

$3.10

24

Hex. Flange Screw M8 X 70

207687044

$6.11

25

Hex. Flange Nut M8

233081416

$1.63

26

Flat Washer 8 mm

234082410

$1.11

27

Protector Kit

703500816

$23.85

28

Support

707600933

$6.73

29

Anti-Vibration Rubber

707600702

$8.09

30

Hex. Flange Elastic Nut M8

233281414

$1.14

31

Hex. Flange Screw

207682034

$2.00

32

HEAT DEFLECTOR - Call your local BRP dealership

707600983

Unavailable
