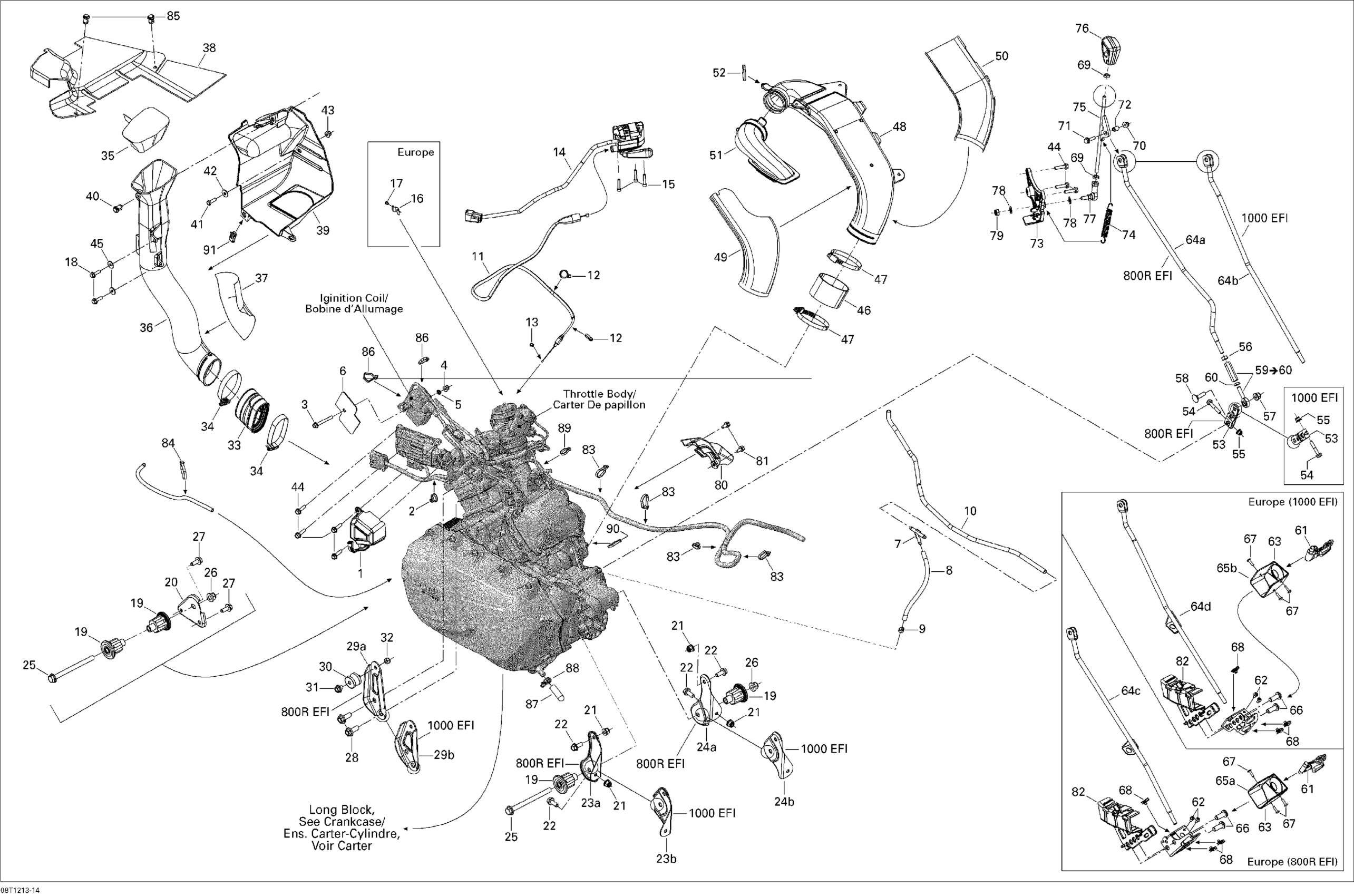

Can-Am Renegade STD, XXC, 800R EFI, 2012 Engine Diagram

#

Description
Price

1

Cover

707000945

$6.67

2

Tie Wrap 142 mm

293750002

$1.25

3

Hex. Flange Screw M6 X 50

207665044

$4.12

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

External Serrated Lock Washer 6 mm

234461608

$1.15

6

Insulator Pad

710000073

$11.12

7

Y-Fitting

293710059

$9.69

8

Polyurethane Hose 10000Mm Long

219704410

$56.99

9

Clamp, Oetiker

293650195

$1.09

10

Polyurethane Hose 10000Mm Long

219704410

$56.99

11

Throttle Cable

707000955

$13.24

12

Tie-Rap 180 mm

414115200

$0.11

13

Cable Guide

707000434

$11.60

14

Throttle Handle | 4X4

707000595

$214.99

15

Socket Head Screw M5 X 25

205052588

$1.90

16

SPEED LIMITER - Call your local BRP dealership | Europe

707000994

Unavailable

17

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

18

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

19

Vibration Damper

707001169

$42.99

20

Engine Support

707003319

$10.99

21

Hex. Elastic Flange Nut M8

233281416

$1.48

22

Hex. Flange Screw M8 X 20

207682046

$1.90

23a

LH Rear Engine Support

707003325

$16.99

23b

Not Available As Spare Parts

XXX

Unavailable

24a

RH Rear Engine Bracket

707001194

$16.99

24b

Not Available As Spare Parts

XXX

Unavailable

25

Hex. Flange Screw M10 X 125

230602546

$7.41

26

Hex. Flange Elastic Nut M10

233201436

$2.11

27

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

28

Hex. Flange Screw M10 X 25

207602544

$1.69

29a

Upper Engine Bracket

707001256

$13.49

29b

Not Available As Spare Parts

XXX

Unavailable

30

Rubber Isolator

707000949

$11.49

31

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

32

Hex. Elastic Stop Nut M8

232581414

$0.56

33

Flexibale Adaptor

707002585

$10.99

34

Norma Clamp

293650091

$11.12

35

CVT Filter

707001786

$19.49

36

CVT Air Inlet

707002073

$41.49

37

Heat Shield

707001654

$2.59

38

Upper Water Deflector

707001041

$22.49

39

Water Deflector

707000928

$18.49

40

Tuflok Plastic Rivet

293150230

$1.47

41

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

42

Flat Washer M6, Stainless

234062600

$0.77

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

44

Hex. Flange Screw M6 X 25

207562544

$1.69

45

Flat Washer M6, Stainless

234062600

$0.77

46

Adaptor

707000789

$12.12

47

Norma Gear Clamp

293650118

$13.16

48

AIR OUTLET - Call your local BRP dealership

706600016

Unavailable

49

HEAT SHIELD - Call your local BRP dealership

707001217

Unavailable

50

HEAT SHIELD - Call your local BRP dealership

707001218

Unavailable

51

AIR OUTLET - Call your local BRP dealership

706600018

Unavailable

52

Tie Wrap 142 mm

293750002

$1.25

53

Lever

707000911

$20.49

54

Hex. Flange Screw M6 X 35

207663544

$0.90

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

56

Hex. Nut M8, LH Threads

250100144

$2.00

57

Hex. Flange Elastic Nut M8

233281414

$1.47

58

Carriage Bolt M8 X 30

207783044

$2.11

59

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

60

Hex. Jam Nut M8

232180600

$0.67

61

Padlock with Key

707000666

$25.99

62

Socket Head Screw M5 X 10

205951046

$2.43

63

Cover Lock | Europe

707000667

$13.24

64a

SHIFTER ROD - Call your local BRP dealership

707001082

Unavailable

64b

Not Available As Spare Parts

XXX

Unavailable

64c

SHIFTER ROD - Call your local BRP dealership | Europe

707002074

Unavailable

64d

Not Available As Spare Parts

XXX

Unavailable

65a

FIXING PLATE - Call your local BRP dealership | Europe

707001009

Unavailable

65b

Not Available As Spare Parts

XXX

Unavailable

66

Screw Socket M10 X 25 | Europe

205402556

$3.91

67

Torx Screw M4 X 16

250000750

$1.68

68

Not Available As Spare Part - Friction Washer

Unavailable

69

Hex. Jam Nut M8

232180600

$0.67

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

71

Hex. Flange Screw M6 X 25

207662544

$0.64

72

Bushing

293900019

$7.73

73

Lever Support

707003054

$6.67

74

Spring

707000577

$10.99

75

Shift Arm | Except Europe

707000840

$16.87

76

Lever Trim

707003211

$8.49

77

RH Ball Joint

707001959

$36.99

78

Washer

506151252

$3.17

79

Hex. Elastic Stop Nut M8

232581414

$0.56

80

Cover OPS

707000410

$13.24

81

Hex. Flange Screw M6 X 12

210261250

$1.90

82

Cable Support

707003053

$10.49

83

Tie-Rap 180 mm

414115200

$0.11

84

Tie-Rap 180 mm

414115200

$0.11

85

Tuflok Plastic Rivet

293150230

$1.47

86

Tie-Rap 180 mm

414115200

$0.11

87

Plug

707001185

$1.15

88

Retainer Clip

707800506

$12.63

89

Tie-Rap 180 mm

414115200

$0.11

90

Tie Wrap 142 mm

293750002

$1.25

91

Panel Nut M6 X 1.0

250100198

$2.11
