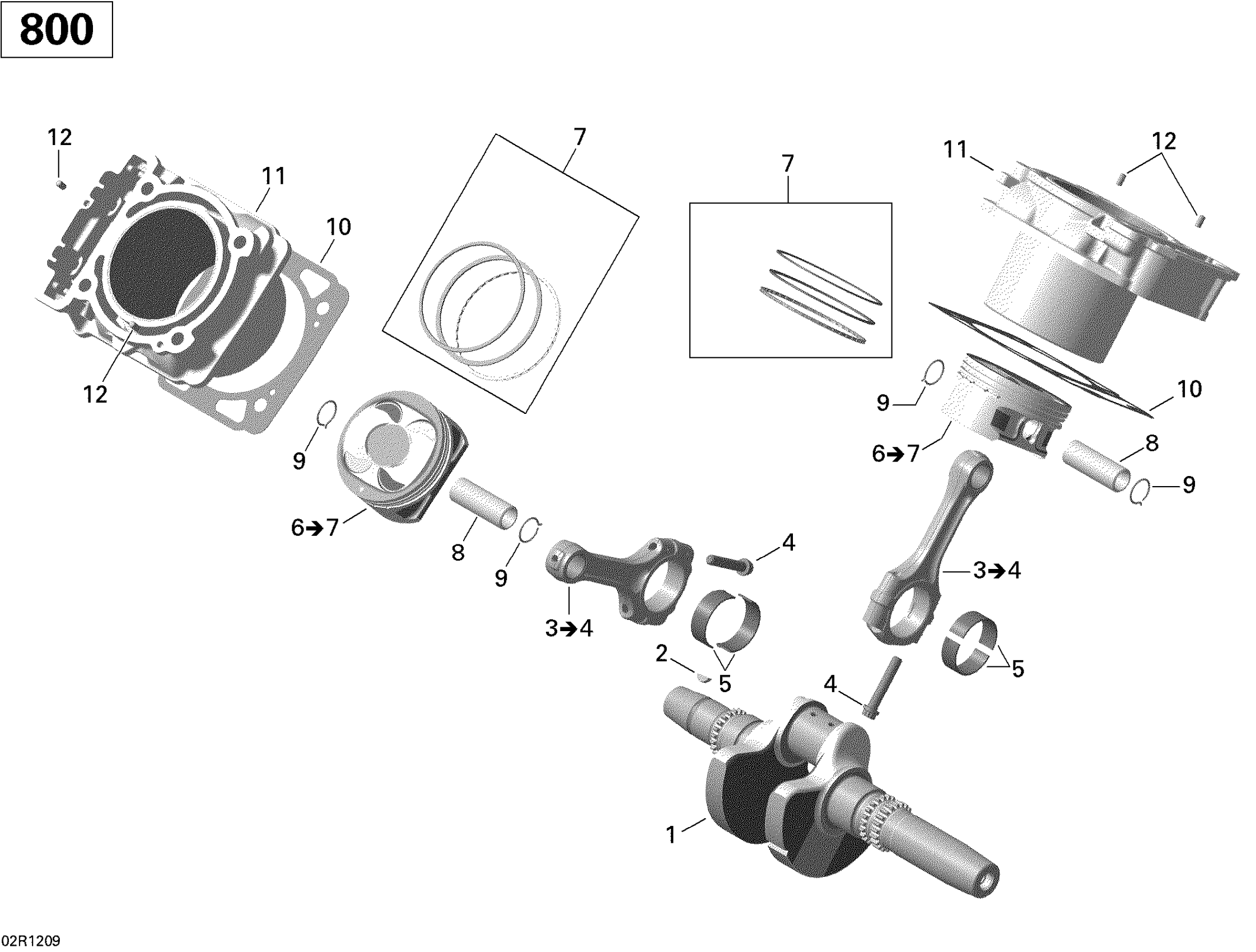

Can-Am Renegade STD, XXC, 800R EFI, 2012 Crankshaft, Piston And Cylinder Diagram

#

Description

Price

1

Crankshaft Ass'y

420219746

$628.49

2

Woodruff Key 4 X 5

420246570

$3.19

3

Connecting Rod Ass’y | Includes 3 to 4

420217425

$232.06

4

Connecting Rod Screw M8 X 1

420641645

$13.18

5

Plain Bearing 40 X 43 X 15

420233980

$26.09

6

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$160.42

6

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$160.42

7

Piston Ring Set | 400HO

420296774

$80.57

8

Piston Pin

420216270

$26.84

9

Piston Circlip

420845107

$4.33

10

Gasket

420630210

$12.04

11

Cylinder With Sleeve

420413434

$402.97

12

Drive Pin 5 X 10

420929650

$1.34
