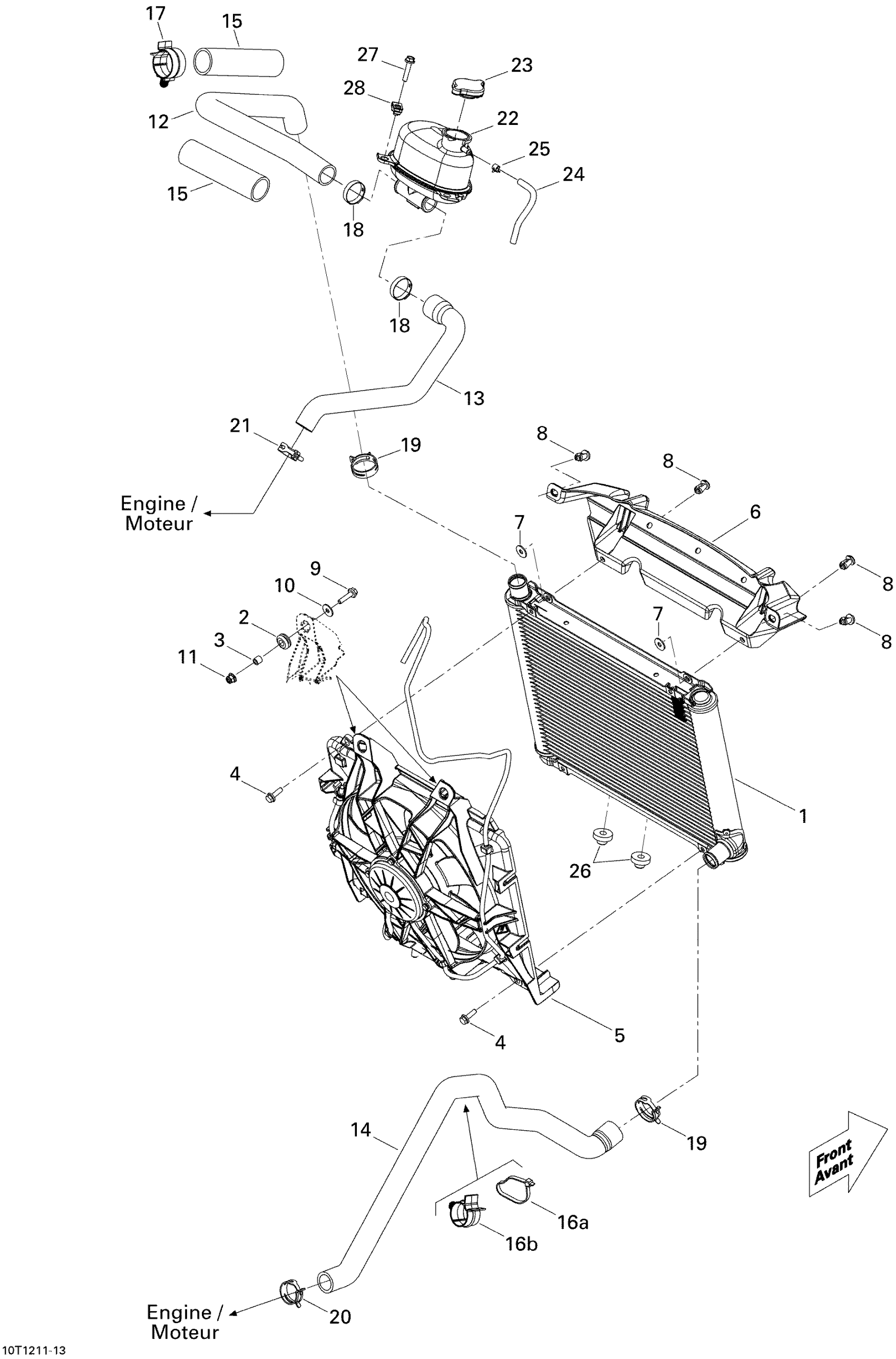

Can-Am Renegade STD, XXC, 800R EFI, 2012 Cooling System Diagram

#

Description
Price

1

Radiator

709200286

$476.99

2

Grommet

709000582

$4.69

3

Bushing

293900105

$7.65

4

Hex. Flange Screw M6 X 20

207662034

$2.11

5

Fan Ass'y

709200563

$249.99

6

Not Available As Spare Parts

XXX

Unavailable

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Hex. Flange Screw M6 X 25

207662534

$2.11

10

Flat Washer

250200082

$0.42

11

Flange Elastic Nut M6

233261434

$4.44

12

Radiator Inlet Hose

709200278

$34.99

13

Engine Outlet Hose

709200310

$19.49

14

Radiator Outlet Hose

709200391

$35.99

15

Tubing 35 MM 1000MM Long

219704428

$10.99

16a

Tie-Rap 180 mm

414115200

$0.11

16b

Not Available As Spare Parts

XXX

Unavailable

17

Retainer

275500590

$9.69

18

Gear Clamp

509000162

$7.29

19

Norma Spring Clamp

293650166

$4.44

20

Norma Spring Clamp

293650108

$4.12

21

Norma Spring Clamp

293650109

$4.12

22

Coolant Tank

709200297

$55.99

23

Radiator Pressure Cap

709200207

$25.49

24

Polyurethane Hose 10000Mm Long

219704410

$56.99

25

Spring Clamp

414554800

$0.88

26

Grommet

709200285

$9.69

27

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

28

Panel Nut M6 X 1.0

250100198

$2.11
